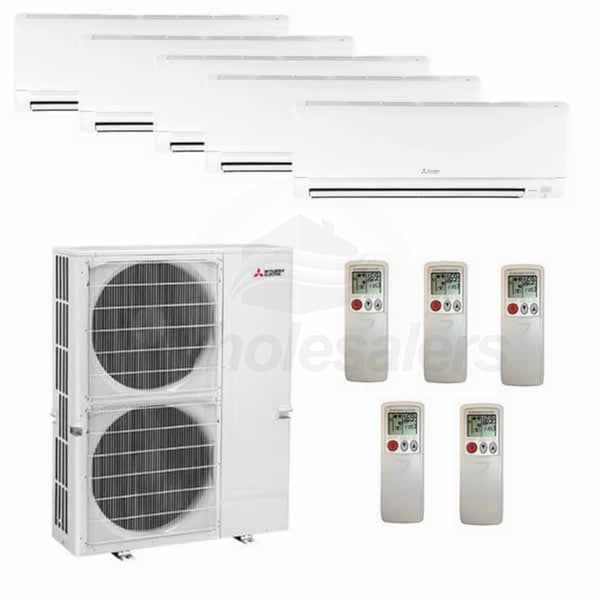

Mitsubishi 54,000 BTU 17.4 SEER Five Zone Heat Pump 6+6+6+12+24
NewNewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
434 Pounds434 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Type
Wall Mounted
Product Line
M-Series
View More
Bundle Includes 7 items
(1) Mitsubishi 60,000 BTU Ductless Multi Zone Heat Pump Condenser (MXZ-8C60NA2)
(1) Mitsubishi GL-Series 24k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-GL24NA-U1)
(1) Mitsubishi GL-Series 12k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-GL12NA-U1)
View Full Bundle
Indoor Units SizesMini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
QualityQualityQuality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration.
FrequencyFrequencySelect how often you will receive your air filters, we offer many options to meet your air quality standards.
QuantityQuantityThis will be how many filters you receive per delivery.
Subscribe Now
QualityQualityQuality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration.
Quantity
$61.07
In-Stock
Features & Bundle Details
Features & Bundle Details
Overview for Mitsubishi M5H60W0606061224
For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a five zone mini split system designed to give you individual control over the temperature in multiple rooms. An efficient MXZ-8C60NA-U1 outdoor condenser, built with advanced technology, is combined with quiet, wall-mounted MSZ-GL indoor units and five wireless remote controllers for the perfect marriage of convenience and comfort. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
Precision Temperature Control Technology
The MXZ-8C60NA outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
Advanced Filtration System
Mitsubishi indoor units combine a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
Hot-Start
In heating mode, Mitsubishi's hot start technology prevents cold drafts by stalling fan operation while the heat exchanger is warming up.
Smart Set
Mitsubishi's Smart Set function allows you to save a cooling profile and a heating profile, each consisting of a temperature, a fan speed, and an airflow direction. These profiles can be activated easily with a press of the Smart Set button on the remote.
Econo Cool Mode
By slowly adjusting the cooling set point and swinging the horizontal vanes, the mini split indoor units can improve the efficiency of cooling operations without compromising the comfort provided.
Dehumidification
When the indoor unit is run in dry mode, it will remove extra moisture from the room. This improves your comfort and reduces both mold growth and the chance of property damage in the conditioned space.
Vane Control
Optimal air flow is easy with Mitsubishi's indoor units thanks to the vane control option. This provides five horizontal vane positions, an auto mode, and a swing mode. Auto selects the best vane position and swing cycles all positions.
Recommended line set sizes for indoor unit connectivity:
MSZ-GL06NA-U1: 1/4" x 3/8" Line Set (Qty 3)
MSZ-GL12NA-U1: 1/4" x 3/8" Line Set
MSZ-GL24NA-U1: 3/8" x 5/8" Line Set
A 3/8" x 3/4" line set is required to connect the condenser to a single branch box or distribution pipe. For configurations requiring multiple branch boxes, 3/8" x 5/8" line sets are also required to connect the distribution pipe to the branch boxes.
Product Note
This product requires at least two compatible Mitsubishi mini split indoor units and the following accessories for installation:
Branch Box - A Mitsubishi branch box is required to connect this condenser to Mitsubishi mini split indoor units.
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.

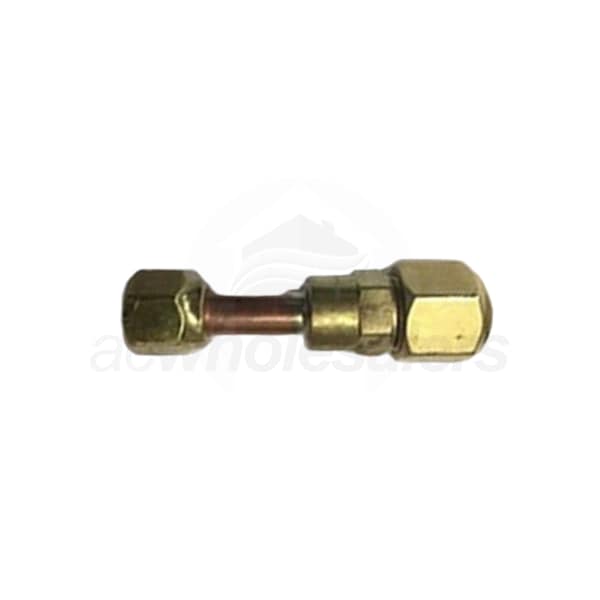

Port Adapter - The included Mitsubishi ADP3458 port adapter is required to connect the 5/8 inch line set to the 3/4 inch condenser port when installing a multi-zone mini split system.
Bundle Includes 7 items
Mitsubishi 60,000 BTU Ductless Multi Zone Heat Pump Condenser
Model: MXZ-8C60NA2-U1
Item Number: 108195
Quantity: 1
Mitsubishi GL-Series 24k BTU Wall Mounted Unit - For Multi or Single-Zone
Model: MSZ-GL24NA-U1
Item Number: 65044
Quantity: 1
Mitsubishi GL-Series 12k BTU Wall Mounted Unit - For Multi or Single-Zone
Model: MSZ-GL12NA-U1
Item Number: 65041
Quantity: 1
Mitsubishi GL-Series 6k BTU Wall Mounted Unit - For Multi-Zone
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Number of ZonesA zone is a room or area within a building that has its own temperature control.
5
Refrigerant Type
R-410A
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 7 + 7 + 12 + 24
Outdoor Unit Size
60000 BTU
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
SEER SEERSEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
19.5
EER EEREER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
12.5
HSPF HSPFHSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
10.7
Cooling Power Input
4800 Watts
Heating Power Input
4870 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-4 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
434 Pounds
Shipping Weight
438 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
204834295
General Information
Type
Outdoor Condenser
Product Line
M-Series
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Branch Box RequiredBy making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units.
Yes
Performance
Cooling BTU
60000
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
59 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-4 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
50 Amps
Dimensions
Maximum Line Length
492 Feet
Gas Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
52 11/16 Inches
Product Width
41 17/48 Inches
Product Depth
13 Inches
Product Weight
309 Pounds
Shipping Height
56 1/4 Inches
Shipping Width
42 15/16 Inches
Shipping Depth
17 11/16 Inches
Shipping Weight
333 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
General Information
Type
Wall Mounted
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Moisture Removal
5.1 Pints/Hour
Maximum Air Flow
738 CFM
Minimum Air Flow
388 CFM
Minimum Sound Level
32 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
12 13/16 Inches
Product Width
43 5/16 Inches
Product Depth
9 3/8 Inches
Product Weight
37 Pounds
Shipping Weight
42 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Wall Mounted
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Moisture Removal
2.5 Pints/Hour
Maximum Air Flow
399 CFM
Minimum Air Flow
145 CFM
Minimum Sound Level
19 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
45 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Wall Mounted
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
6
Installation Location
Indoor
Performance
Cooling BTU
6000
Cooling Capacity
6000 BTU
Maximum Air Flow
399 CFM
Minimum Air Flow
145 CFM
Minimum Sound Level
19 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Port Adapter
Product Category
Mini Split Accessories
Connection Type
Flared
Dimensions
End 1 Connection Size
3/4 Inch
End 2 Connection Size
5/8 Inch
Product Weight
1 Pound
Shipping Weight
5 Pounds
Warranty Information
Parts Warranty Days
90
Overview
Product Category
Mini Split Accessories
