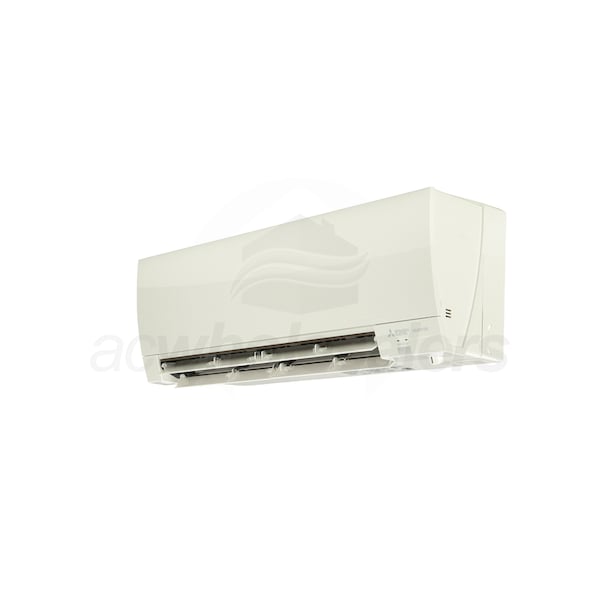

Mitsubishi FH-Series 9k BTU Wall Mounted Unit - For Multi or Single-Zone

Model: MSZ-FH09NA Item Number: 30758
Mitsubishi MSZ-FH09NA
PREVIOUS
NEXT
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Enlarge Image
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Watch Video
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
Mitsubishi MSZ-FH09NA
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    29 Pounds Learn More
    29 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Product Line
    M-Series
Recommended Accessories
View More
Installation Accessories
Mueller - 1/4" x 3/8" Insulated Mini Split Line Set - 25' Length - Factory Flared
Model: MLS143812-25
Length (ft)
Qty
$200.00
In-Stock
Add To Cart
Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 25' Length
Model: MSCABLE144-25
Length (ft)
Qty
$45.00
In-Stock
Add To Cart
Mini Split 15' Length 5/8" ID PVC Braided Drain Tubing
Model: DRAINTUBING-15
Length (ft)
Qty
$18.00
In-Stock
Add To Cart
Mitsubishi 700 PSI 1/4" Ball Valve w/ Flared, Insulated Service Valve
Model: BV14FFSI2
Connection Size
Qty
$102.60
In-Stock
Add To Cart
Mitsubishi Kumo Cloud Wireless Adapter (Wi-Fi) Interface Control 2
Model: PAC-USWHS002-WF-2
Qty
$199.00
Only 2 In-Stock
Add To Cart
Features
View More

Features

Overview for Mitsubishi MSZ-FH09NA

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MSZ-FH09NA is a wall mounted heat pump mini split indoor unit for use in single zone and multi-zone systems. The functional design is paired with quiet operations that provide comfort without disrupting your space and installing a Mitsubishi wall mounted indoor unit is quick and easy thanks to their convenient mounting plate. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room. Whether you are designing a primary heating and cooling system or supplementing an existing one, the MSZ-FH09NA is an excellent addition.
  • Advanced Filtration System
  • The MSZ-FH09NA uses two advanced filters to clean and deodorize the circulated air. The deodorizing filter absorbs any offending smells, while the second is an enzyme-based anti-allergy filter that captures and destroys bacteria and particulates.
  • 3D i-see Sensor®
  • The MSZ-FH09NA's 3D i-see Sensor® monitors its zone for fluctuations in temperature and will temporarily direct airflow to that zone. It also enters energy saving mode if no human heat signatures are detected.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Powerful Mode
  • The powerful setting on the MSZ-FH09NA makes it easy to get your zone to the perfect temperature quickly. When activated, the unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSZ-FH09NA can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the MSZ-FH09NA thanks to two vane control options, standard and wide. Auto mode selects the best vane position based on operating mode while swing mode cycles through each vane position.
  • Product Compatible With
  • Mitsubishi MXZ-3C24NA Mini-Split Outdoor Condenser
  • Mitsubishi MXZ-3C30NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-4C36NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-5C42NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-8C48NA Mini Split Outdoor Condenser
  • Product Note
    This product requires a compatible outdoor condenser and the following accessories for indoor unit installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    Specifications
    View More

    Specifications

    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control

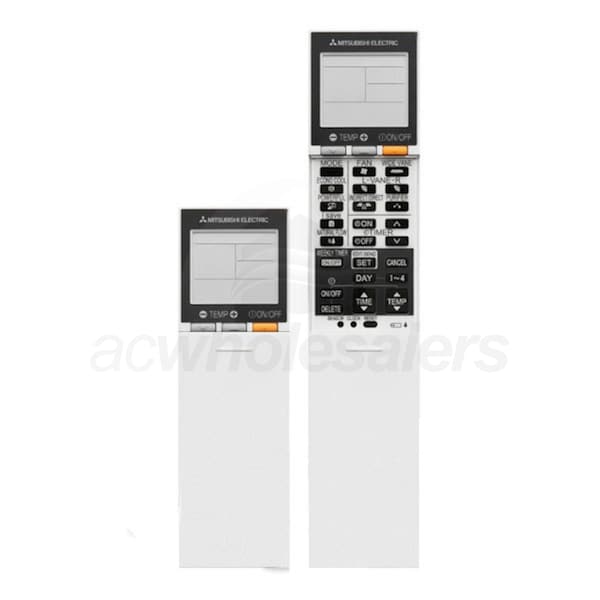

    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Moisture Removal
    0.6 Pints/Hour
    Maximum Air Flow
    381 CFM
    Minimum Air Flow
    137 CFM
    Minimum Sound Level
    20 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    42 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    12 11/16 Inches
    Product Width
    36 7/16 Inches
    Product Depth
    9 3/16 Inches
    Product Weight
    29 Pounds
    Shipping Weight
    35 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Reviews
    5.0 out of 5 stars5.0 out of 5 stars
    (3)
    View More

    Reviews

    Overall Rating from 3 Reviews
    icons-ratings-full
    5.00 / 5
    5 Stars
    (3)
    4 Stars
    (0)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Star
    (0)
    100%of Customers Recommend This Product
    Features
    5.0/5
    Quality
    5.0/5
    Performance
    5.0/5
    Value
    5.0/5
    Sort By:
    5
    Rated Out Of 5
    5.0 out of 5 stars5.0 out of 5 stars
    Excellent machine; so far performance exceeds expectation
    By sparker
    Check Mark
    sparker Recommends This
    Review Posted 03/10/2017
    This Mitsubishi unit, installed 3 weeks ago, is their 3D unit which works flawlessly and has a remote control rich in program options. I expect that their larger capacity ductless units offer the same excellent performance.
    Was this review helpful?
    Thumbs Up Icon
    Yes
    (0)
    Thumbs Down Icon
    No
    (0)
    5
    Rated Out Of 5
    5.0 out of 5 stars5.0 out of 5 stars
    Extremely quiet
    By mikeG
    Check Mark
    mikeG Recommends This
    Review Posted 07/11/2016
    This unit is in an upstairs guest bedroom in an older remodeled farmhouse with hot water heat. These types of units were the best fit for cooling. I installed a cooing only 12K unit 5 years ago in the master bedroom. My wife loves how quiet it is. Easy to set and adjust. This new unit has the heat feature since its in guest room and we keep our bedroom very cool in the winter. I installed it only a few weeks ago and have been able to evaluate all the other features yet. But it does cool and dehumidify well.
    Was this review helpful?
    Thumbs Up Icon
    Yes
    (0)
    Thumbs Down Icon
    No
    (0)
    5
    Rated Out Of 5
    5.0 out of 5 stars5.0 out of 5 stars
    Nice product.
    By Bob53
    Check Mark
    Bob53 Recommends This
    Review Posted 11/23/2015
    Very quiet, nice looks. Documentation was a little sparse. Especially removing the cover takes a bit to figure out.
    Was this review helpful?
    Thumbs Up Icon
    Yes
    (1)
    Thumbs Down Icon
    No
    (0)
