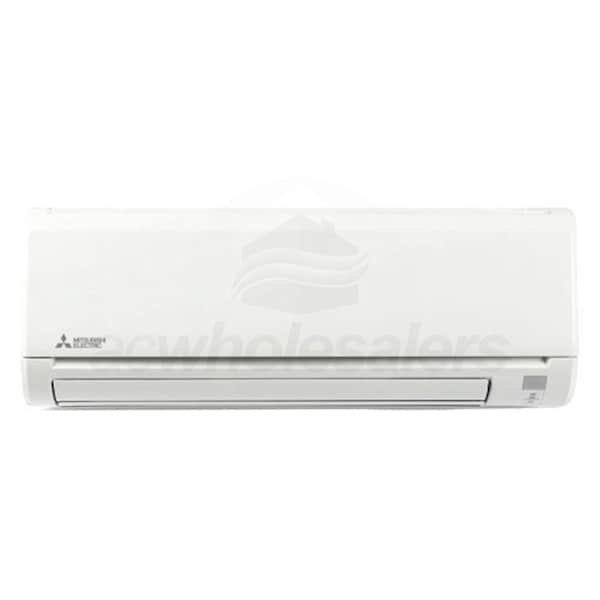

Mitsubishi - 24k BTU - HM-Series Wall Mounted Unit - Single Zone Only

Model: MSZ-HM24NA-U1 Item Number: 81567
Mitsubishi MSZ-HM24NA-U1
PREVIOUS
NEXT
Mitsubishi MSZ-HM24NA-U1
Mitsubishi MSZ-HM24NA-U1
Mitsubishi MSZ-HM24NA-U1
Enlarge Image
Mitsubishi MSZ-HM24NA-U1
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Watch Video
Mitsubishi MSZ-HM24NA-U1
Mitsubishi MSZ-HM24NA-U1
View All
Not For Individual Sale
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    28 Pounds Learn More
    28 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Product Line
    M-Series
Capacity (BTU/h)
Select Attribute
Features
View More

Features

Overview for Mitsubishi MSZ-HM24NA-U1

This product requires a compatible outdoor condenser for functionality. For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions.
  • Kumo Cloud Compatible
  • Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MZ-HM indoor unit can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage. When wide mode is activated, fan speed increases beyond the current setting.
  • Product Note
    This product requires a compatible Mitsubishi outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.


    Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.
    Specifications
    View More

    Specifications

    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Remote Control

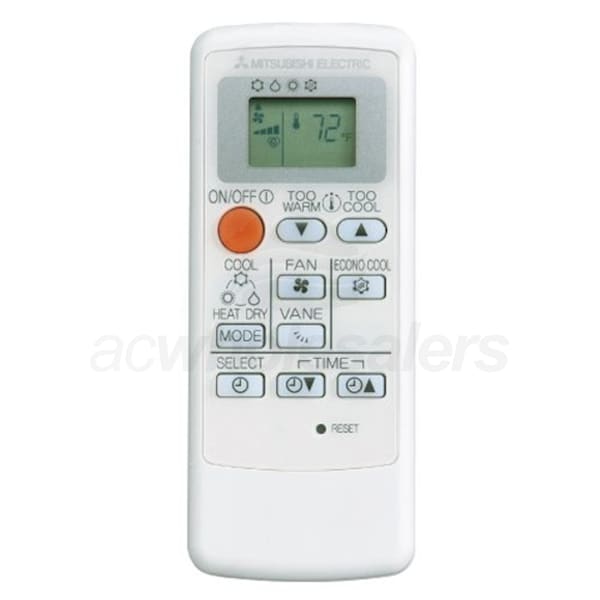

    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Heating BTU
    26000
    Moisture Removal
    2.3 Pints/Hour
    Maximum Air Flow
    702 CFM
    Minimum Air Flow
    353 CFM
    Minimum Sound Level
    33 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    50 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    12 Inches
    Product Width
    36 5/16 Inches
    Product Depth
    9 13/16 Inches
    Product Weight
    28 Pounds
    Shipping Weight
    33 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Reviews
    5.0 out of 5 stars5.0 out of 5 stars
    (1)
    View More

    Reviews

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.
