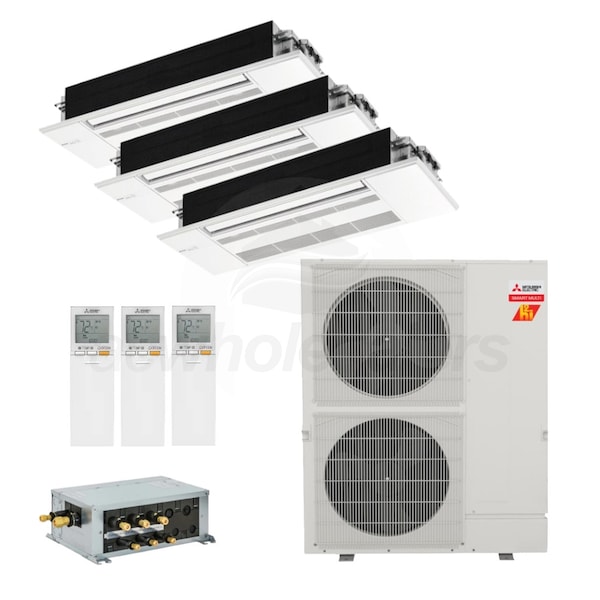

Mitsubishi One-Way Ceiling 3-Zone H2i System - 36,000 BTU Outdoor - 9k + 9k + 12k Indoor - 23.0 SEER2

Model: MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2 Item Number: 155059
Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
PREVIOUS
NEXT
Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
Enlarge Image
Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
View All
Originally $9,299.20, you save 7%
Our Price: $8,623.50
synchrony card icon
$108 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships Wednesday, December 4th
Shipping to60601
Mitsubishi One-Way Ceiling 3-Zone H2i System - 36,000 BTU Outdoor - 9k + 9k + 12k Indoor - 23.0 SEER2
Mitsubishi One-Way Ceiling 3-Zone H2i System - 36,000 BTU Outdoor - 9k + 9k + 12k Indoor - 23.0 SEER2 Model: MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2 Item Number: 155059
$8,623.50
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    380 Pounds Learn More
    380 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ceiling Cassette
    Product Line
    M-Series H2i
Bundle Includes 8 items
  • product image
    (1) Mitsubishi - 36k BTU - M-Series Smart Multi H2i Outdoor Condenser - For 2-4 Zones (MXZ-SM36NAMHZ2)
  • product image
    (1) Mitsubishi - 12k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone (MLZ-KP12NA2)
  • product image
    (2) Mitsubishi - 9k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone (MLZ-KP09NA2)
Outdoor Unit BTU/h
Select Attribute
Indoor Unit Sizes
Learn More
Indoor Unit Sizes
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2

Mitsubishi\'s dedication to new technology means that multi-zone mini split systems are now a year-round comfort solution for homes in freezing climates. This low ambient system uses a Hyper-Heating H2i MXZ-SM36NAMHZ2 outdoor condenser to provide efficient cooling and subzero heating through three advanced MLZ-KP ceiling cassette indoor units. Three wireless remote controllers guarantee convenient comfort by allowing you to control the temperature in individual rooms. An MXZ multi-room system is an excellent choice for supplementing capacity to a current system, conditioning newly furnished spaces, or new additions and replacing a system within a home. With multiple operating modes and multiple fan speeds, this is a system that fits the needs of nearly any home.
  • Precision Temperature Control Technology
  • The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Hot-Start
  • Mitsubishi's Hot-Start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Vane Control
  • Optimal air flow can be achieved with the MLZ-KP thanks to the vane control option. This function provides access to an Auto mode and a Swing mode.
  • Condensate Removal System
  • The MLZ-KP contains an internal drain mechanism capable of lifting condensate 19-11/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Serviceability
  • The MLZ-KP is designed to fit between standard 16" joists and be serviced from below, making installation and maintenance easier than ever.
  • Dehumidification
  • When the indoor unit runs in Dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves your comfort and reduces the chance of mold growth and other property damage in the room.
  • H2i Technology
  • H2i Hyper Heat performance offers 100% heating capacity at 5 degrees and 75% heating capacity at -13 degrees Fahrenheit.
  • Integrated Base Pan Heater
  • Factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.
  • Recommended line set sizes for indoor unit connectivity:
  • MLZ-KP09NA2: 1/4" x 3/8" Line Set (Qty 2)
  • MLZ-KP12NA2: 1/4" x 3/8" Line Set
  • Recommended line set sizes for branch box connectivity:
  • MXZ-SM36NAMHZ2: 3/8" x 5/8" Line Set
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You will need a Secondary Installation Kit for each additional indoor unit.
    Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.
    Bundle Includes 8 items
    • product kit image
      Mitsubishi - 12k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone
      Model: MLZ-KP12NA2
      Item Number: 138713
      Quantity: 1
    • product kit image
      Mitsubishi - 9k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone
      Model: MLZ-KP09NA2
      Item Number: 138712
      Quantity: 2
    • product kit image
      Mitsubishi M-Series - 3 Ports - Branch Box
      Model: PAC-MKA33BC
      Item Number: 153757
      Quantity: 1
    • product kit image
      Mitsubishi MLP-444W Ceiling Cassette Grille For Mitsubishi MLZ-KP Mini Split Units
      Model: MLP-444W
      Item Number: 82596
      Quantity: 3
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Ceiling Cassette
    Product Line
    M-Series H2i
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    3
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9 + 9 + 12
    Base Pan Heater Included
    Yes
    Outdoor Unit Size
    36000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Cooling Power Input
    2400 Watts
    Heating Power Input
    3080 Watts
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    23 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    23.0
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    15.0
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    12.0
    Dimensions
    Product Weight
    380 Pounds
    Shipping Weight
    434 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    213248831
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series H2i
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    4
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Base Pan Heater Included
    Yes
    Outdoor Unit Size
    36000 BTU
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Heating Capacity
    42000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    53 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    23 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    42 Amps
    Recommended Breaker Size
    45 Amps
    Dimensions
    Maximum Line Length
    492 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    52 11/16 Inches
    Product Width
    41 17/48 Inches
    Product Depth
    13 Inches
    Product Weight
    278 Pounds
    Shipping Weight
    302 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Grille
    Not Included
    Required Grille Model
    MLP-444W
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    350 CFM
    Minimum Air Flow
    212 CFM
    Minimum Sound Level
    26 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    40 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 5/16 Inches
    Product Width
    43 3/8 Inches
    Product Depth
    14 3/16 Inches
    Product Weight
    34 Pounds
    Grille Depth
    15/16 Inch
    Grille Width
    16 11/16 Inches
    Grille Length
    47 1/4 Inches
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Grille
    Not Included
    Required Grille Model
    MLP-444W
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    325 CFM
    Minimum Air Flow
    212 CFM
    Minimum Sound Level
    26 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    38 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 5/16 Inches
    Product Width
    43 3/8 Inches
    Product Depth
    14 3/16 Inches
    Product Weight
    34 Pounds
    Grille Depth
    15/16 Inch
    Grille Width
    16 11/16 Inches
    Grille Length
    47 1/4 Inches
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Branch Box
    Product Line
    M-Series
    Product Category
    Mini Split Accessories
    Ports Quantity
    3
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Suction Connection Size
    3/8 Inch
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Product Height
    6 11/16 Inches
    Product Width
    17 35/48 Inches
    Product Depth
    11 1/48 Inches
    Product Weight
    15 Pounds
    Warranty Information
    Parts Warranty Days
    90
    General Information
    Type
    Grille
    Product Line
    M-Series
    Dimensions
    Product Weight
    5 Pounds
    Grille Depth
    15/16 Inch
    Grille Width
    16 11/16 Inches
    Grille Length
    47 1/4 Inches
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
    View More

    Share
    ×
    Mitsubishi One-Way Ceiling 3-Zone H2i System - 36,000 BTU Outdoor - 9k + 9k + 12k Indoor - 23.0 SEER2
    Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
    Loading
    Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
    Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
    Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
    Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
    Mitsubishi MXZ-SM36NAMHZ2 2-MLZ-KP09NA2 MLZ-KP12NA2
    ×
    Customer Review Images
    Loading
    Scroll Up ArrowTo Top
