Mitsubishi - 42k BTU - M-Series Smart Multi H2i Outdoor Condenser - For 2-5 Zones

Model: MXZ-SM42NAMHZ2 Item Number: 153603
Mitsubishi MXZ-SM42NAMHZ2
PREVIOUS
NEXT

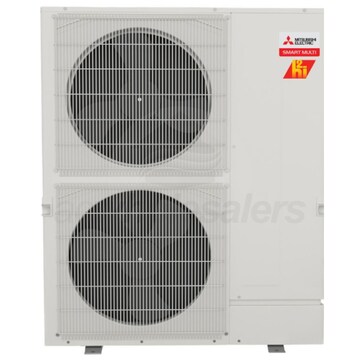

Mitsubishi MXZ-SM42NAMHZ2
Enlarge Image
Originally $6,056.25, you save 5%
Our Price: $5,724.00
synchrony card icon
$72 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships Monday, November 11th
Shipping to60601
Mitsubishi - 42k BTU - M-Series Smart Multi H2i Outdoor Condenser - For 2-5 Zones
Mitsubishi - 42k BTU - M-Series Smart Multi H2i Outdoor Condenser - For 2-5 Zones Model: MXZ-SM42NAMHZ2 Item Number: 153603
$5,724.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    278 Pounds Learn More
    278 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Outdoor Condenser
    Product Line
    M-Series H2i
Capacity (BTU/h)
Select Attribute
High Heating Capacity
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Mitsubishi MXZ-SM42NAMHZ2

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MXZ-SM42NAMHZ2 is an H2i hyper-heating outdoor condenser for multi-zone mini split applications in freezing climates. It supports up to five indoor units, allowing you to create a custom zoned heating and cooling system based entirely around the specific needs of your home. With a broad range of compatible indoor units, efficiency-boosting inverter technology, and heating capabilities that withstand some of the coldest conditions, the MXZ-SM42NAMHZ2 is a smart addition for nearly any home.
  • H2i Technology
  • Low and negative ambient temperatures don't bother the MXZ-SM42NAMHZ2. It is rated for 100% heating capacity at 5 degrees F and continues to provide heating in outdoor conditions as low as -13 degrees F.
  • Precision Temperature Control Technology
  • This outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, these components provide precise temperature control and incredible efficiency.
  • Integrated Base Pan Heater
  • MXZ-SM H2i hyper-heating outdoor condensers have a factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.
  • Mix and Match
  • The MXZ-SM42NAMHZ2 is compatible with more than two dozen different indoor units. It even works with the advanced MSZ-FS indoor units. This makes it easy to design a system that suits your home, no matter how it is arranged.
  • Product Compatible With
  • Mitsubishi MSZ-GL Wall Mounted Mini Split Indoor Units
  • Mitsubishi MSZ-GS Wall Mounted Mini Split Indoor Units
  • Mitsubishi MSZ-FH Wall Mounted Hyper-Heating Mini Split Indoor Units
  • Mitsubishi MSZ-FS Wall Mounted Hyper-Heating Mini Split Indoor Units
  • Mitsubishi MSZ-EF Wall Mounted Designer Mini Split Indoor Units
  • Mitsubishi MFZ-KJ Floor Standing Mini Split Indoor Units
  • Mitsubishi SEZ-KD Concealed Duct Mini Split Indoor Units
  • Mitsubishi MLZ-KP One-Way Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi MLZ-KY One-Way Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi SLZ-KF Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi PLA-A Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi PEAD-A Concealed Duct Mini Split Indoor Units
  • Product Note
    This product requires at least two compatible Mitsubishi mini split indoor units and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Branch Box - A Mitsubishi branch box is required to connect this condenser to Mitsubishi mini split indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.
    Specifications
    View More

    Specifications

    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series H2i
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    5
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Base Pan Heater Included
    Yes
    Outdoor Unit Size
    42000 BTU
    Performance
    Cooling BTU
    42000
    Cooling Capacity
    42000 BTU
    Heating Capacity
    48000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    54 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    23 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    42 Amps
    Recommended Breaker Size
    45 Amps
    Dimensions
    Maximum Line Length
    492 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    52 11/16 Inches
    Product Width
    41 17/48 Inches
    Product Depth
    13 Inches
    Product Weight
    278 Pounds
    Shipping Weight
    302 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
