Mitsubishi M-Series - 3 Ports - Branch Box

Model: PAC-LMA30BC Item Number: 160417

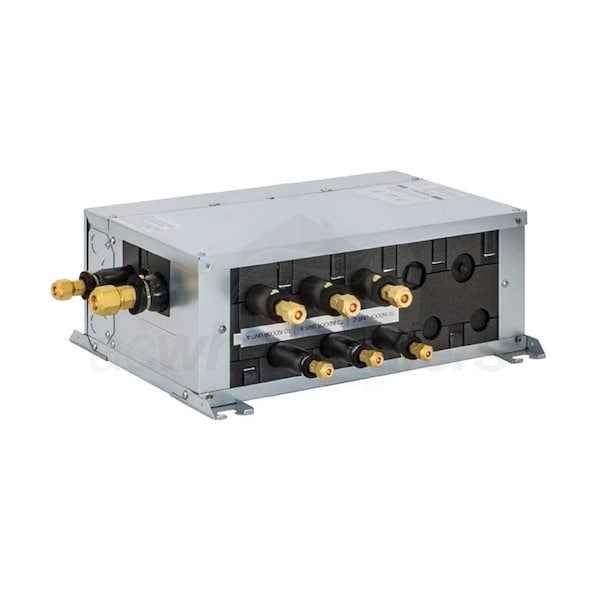

Mitsubishi PAC-LMA30BC
Mitsubishi PAC-LMA30BC
Enlarge Image
Not For Individual Sale
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    15 Pounds Learn More
    15 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Branch Box
    Product Line
    M-Series
Features
View More

Features

Overview for Mitsubishi PAC-LMA30BC

The PAC-LMA30BC is a three port branch box for use in multi-zone mini split applications with Mitsubishi's MXZ-SM outdoor condensers. It manages the flow of both refrigerant and power from the outdoor condenser to any connected indoor units. With electronic LEVs, Mitsubishi's branch boxes ensure optimal refrigerant flow and an accurate coil temperature for your mini split indoor units.
  • Product Compatability
  • The MItsubishi PAC-LMA30BC branch box is compatable with MXZ-SM Mini Split Outdoor Condensers.
  • Product Note
    Port adapter ADP5834 is required when connecting this branch box to the MXZ-SM60NL outdoor condenser. The port adapter can be found under the "Recommended Accessories" tab.
    Specifications
    View More

    Specifications

    General Information
    Type
    Branch Box
    Product Line
    M-Series
    Product Category
    Mini Split Accessories
    Ports Quantity
    3
    UPC
    00192890003428
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Suction Connection Size
    3/8 Inch
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Product Height
    6 3/4 Inches
    Product Width
    17 3/4 Inches
    Product Depth
    11 1/16 Inches
    Product Weight
    15 Pounds
    Warranty Information
    Parts Warranty Days
    90
