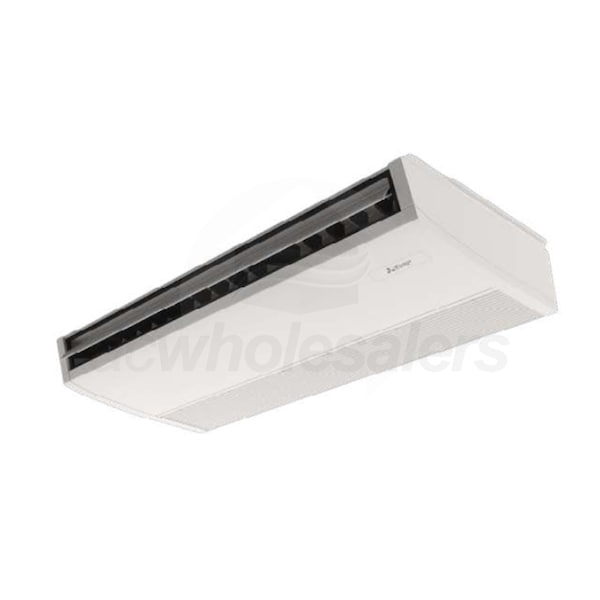

Mitsubishi P-Series Ceiling Suspended Unit - Multi or Single-Zone - 24k BTU - R-454B

Model: PCA-AK24NL Item Number: 160419
Mitsubishi PCA-AK24NL
Mitsubishi PCA-AK24NL
Enlarge Image
Our Price: $1,567.50
synchrony card icon
$262 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 8-12 Weeks
Mitsubishi P-Series Ceiling Suspended Unit - Multi or Single-Zone - 24k BTU - R-454B
Mitsubishi P-Series Ceiling Suspended Unit - Multi or Single-Zone - 24k BTU - R-454B Model: PCA-AK24NL Item Number: 160419
$1,567.50
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    71 Pounds Learn More
    71 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ceiling Suspended
    Product Line
    P-Series
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Mitsubishi PCA-AK24NL

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The PCA-AK24NL ceiling suspended heat pump mini split indoor unit for use in single-zone systems. The sturdy design quietly operates providing comfort without disrupting your space. Mitsubishi's ceiling suspended units are great for applications where the structure or design does not support wall mounting or ceiling cassettes.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage.
  • Product Note
    This product requires a compatible Mitsubishi mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.
    Specifications
    View More

    Specifications

    General Information
    Type
    Ceiling Suspended
    Product Line
    P-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-454B
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    UPC
    00192890003893
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    21800 BTU
    Heating Capacity
    28000 BTU
    Moisture Removal
    4 Pints/Hour
    Maximum Air Flow
    670 CFM
    Minimum Air Flow
    495 CFM
    Minimum Sound Level
    33 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    40 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    9 1/16 Inches
    Product Width
    50 3/8 Inches
    Product Depth
    26 3/4 Inches
    Product Weight
    71 Pounds
    Shipping Weight
    82 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
