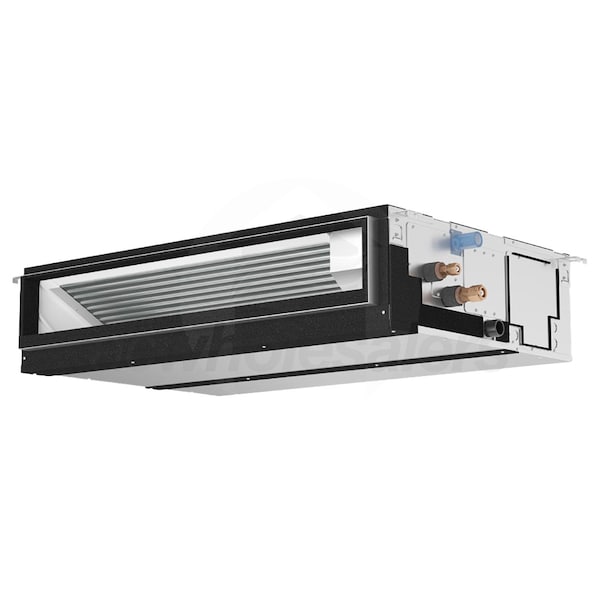

Mitsubishi - 36k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone

Model: PEAD-A36AA8 Item Number: 145697
Mitsubishi PEAD-A36AA8
PREVIOUS
NEXT
Mitsubishi PEAD-A36AA8
Enlarge Image
Originally $2,976.00, you save 6%
Our Price: $2,807.25
synchrony card icon
$50 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
In-Stock
Ships Monday, November 25th
Shipping to60601
Mitsubishi - 36k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone
Mitsubishi - 36k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone Model: PEAD-A36AA8 Item Number: 145697
$2,807.25
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    84 Pounds Learn More
    84 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Concealed Duct
    Product Line
    P-Series
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Mitsubishi PEAD-A36AA8

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The PEAD-A36AA8 is a concealed duct heat pump mini split indoor unit for use in single zone and multi-zone systems. This unit is easily hidden in short-run ducting and operates quietly, making it the perfect choice for unobtrusive zoned comfort. With the PEAD-A36AA8, a small air register is the only evidence of the fact that a powerful and efficient mini split is servicing your room. With multiple operating modes and multiple fan speeds, this unit fits the needs of nearly any room. Whether you are designing a primary heating and cooling system or supplementing an existing one, the PEAD-A36AA8 is an excellent addition.
  • Dehumidification
  • When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Kumo Cloud Compatible
  • Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.
  • Condensate Removal System
  • The PEAD-A36AA8 contains an internal drain mechanism capable of lifting condensate 27-9/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Product Compatible With
  • Mitsubishi MXZ-SM36NAM2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-SM48NAM2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-SM60NAM2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-SM36NAMHZ2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-SM42NAMHZ2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-SM48NAMHZ2 Mini Split Outdoor Condenser
  • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Specifications
    View More

    Specifications

    General Information
    Type
    Concealed Duct
    Product Line
    P-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Installation Location
    Indoor
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Heating BTU
    38000
    Maximum Air Flow
    1201 CFM
    Minimum Air Flow
    847 CFM
    Minimum Sound Level
    35 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    42 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    9 7/8 Inches
    Product Width
    55 1/8 Inches
    Product Depth
    28 19/24 Inches
    Product Weight
    84 Pounds
    Shipping Weight
    100 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
