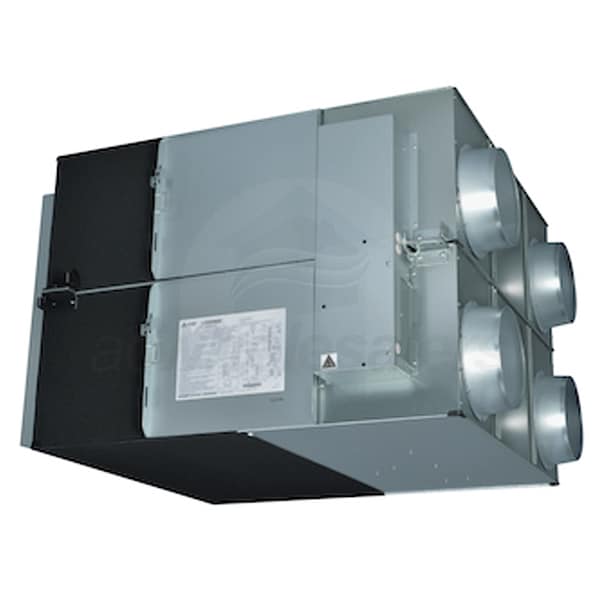

Mitsubishi Lossnay - 1200 CFM - Energy Recovery Ventilator - Side Ports - 9-1/2" Duct

Model: LGH-F1200RVX2-E Item Number: 124770
Mitsubishi LGH-F1200RVX2-E
PREVIOUS
NEXT
Mitsubishi LGH-F1200RVX2-E
Enlarge Image
Our Price: $6,276.00
synchrony card icon
$79 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 4-6 Weeks
Mitsubishi Lossnay - 1200 CFM - Energy Recovery Ventilator - Side Ports - 9-1/2
Mitsubishi Lossnay - 1200 CFM - Energy Recovery Ventilator - Side Ports - 9-1/2" Duct Model: LGH-F1200RVX2-E Item Number: 124770
$6,276.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    251 Pounds Learn More
    251 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    ERV
    Product Line
    Lossnay
Max Air Flow (CFM)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Mitsubishi LGH-F1200RVX2-E

The LGH-F1200RVX2-E is part of Mitsubishi's Lossnay line of energy recovery ventilators. In applications where air is the heat transfer medium, a Lossnay unit provides a number of benefits. The primary function of the LGH-F1200RVX2-E is to improve the ventilation of your heating and cooling system while extracting energy from your system's exhaust and transferring it to the incoming air. This not only cleans your air, it also minimizes the impact on your heating and cooling system. Salvaging this energy that would normally be wasted has the added benefit of transferring moisture, meaning that the Lossnay unit also contributes humidity control to your system. Finally, the LGH-F1200RVX2-E includes washable MERV 7 filters that keep the core clean by capturing outside pollutants.
  • Mitsubishi Lossnay 1200 CFM Energy Recovery Ventilator Features
  • External input bypass damper control
  • Four fan speeds
  • High efficiency DC Motor
  • Minimal cross contamination between entering and leaving air streams
  • M-Net Connectivity
  • Standard MERV 7 non-woven fabric filter, washable fiber
  • Stand alone or interlocks connects with all Mitsubishi Electric products
  • Stand-alone remote controller (PZ-62DR-EA)
  • Optional high-efficiency MERV 14 and MERV 16 filters - Not Included
  • Specifications
    View More

    Specifications

    General Information
    Type
    ERV
    Product Line
    Lossnay
    Product Category
    Energy Recovery Ventilators (ERVs)
    Ports Quantity
    8
    Port Location
    Side
    Housing Material
    Galvanized Steel
    Core Material
    Lossnay Core
    Performance
    Filter Efficiency
    7 MERV
    Maximum Air Flow
    1200 CFM
    Minimum Air Flow
    300 CFM
    Minimum Sound Level
    20 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    43 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    10.4 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Duct Connection
    9.5 Inches
    Product Height
    31 13/16 Inches
    Product Width
    50 1/8 Inches
    Product Depth
    49 15/16 Inches
    Product Weight
    251 Pounds
    Certifications
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
