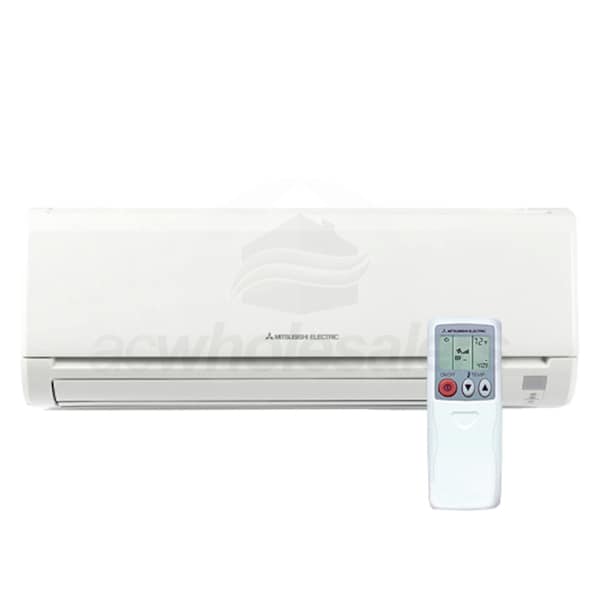

Mitsubishi - 12k BTU Cooling Only - M-Series Wall Mounted Air Conditioning System - 23.1 SEER

Model: MY-GL12NA Item Number: 65343
Mitsubishi MY-GL12NA
PREVIOUS
NEXT
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Enlarge Image
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Watch Video
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
Mitsubishi MY-GL12NA
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    99 Pounds Learn More
    99 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Cooling Only System
Bundle Includes 2 items
  • product image
    (1) Mitsubishi 12,000 BTU 23.1 SEER Ductless Air Conditioner Condenser (MUY-GL12NA-U1)
  • product image
    (1) Mitsubishi 12,000 BTU 23.1 SEER Ductless Air Conditioner Air Handler (MSY-GL12NA-U1)
Recommended Accessories
View More
Required Accessories Add All Required
Primary Mini Split Installation Starter Kit - 15' Long - 1/4" x 3/8" Line Set - One Required
Model: MSPLTKIT-143815
Length (ft)
Qty
$317.00
In-Stock
Add To Cart
Diversitech ULTRALITE Condenser Mounting Pad 16x36x3
Model: UC1636-3
Qty
$44.00
In-Stock
Add To Cart
RectorSeal WBB300 Outdoor Condenser Wall Bracket, supports up to 300 lbs.
Model: WBB300
Qty
$105.62
In-Stock
Add To Cart
Installation Accessories
Mueller - 1/4" x 3/8" Insulated Mini Split Line Set - 15' Length - Factory Flared
Model: MLS143812-15
Length (ft)
Qty
$150.00
In-Stock
Add To Cart
Mitsubishi Line-Hide Size 75 Split Tube Line Set Cover
Model: CD-75
Type
Qty
$27.00
In-Stock
Add To Cart
Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 25' Length
Model: MSCABLE144-25
Qty
$45.00
In-Stock
Add To Cart
Mini Split 15' Length 5/8" ID PVC Braided Drain Tubing
Model: DRAINTUBING-15
Qty
$18.00
In-Stock
Add To Cart
Mitsubishi Base Pan Heater for MUZGE / MUZFE Series Condensers
Model: MAC-640BH-U
Qty
$157.50
Ships in 3-4 Weeks
Add To Cart
Mitsubishi Kumo Cloud Wireless Adapter (Wi-Fi) Interface Control 2
Model: PAC-USWHS002-WF-2
Qty
$199.00
In-Stock
Add To Cart
Mitsubishi Air Conditioner Anti Allergy Enzyme Filter
Model: MAC408FTE
Learn More
Subscribe to Save
Increase filter quantity to receive better savings per filter.
Frequency Learn More
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity Learn More
Quantity
This will be how many filters you receive per delivery.
Quantity
$43.20
In-Stock
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MY-GL12NA

Overview for Mitsubishi MY-GL12NA Ductless Air Conditioner Mini Split Cooling Only System
The Mr. Slim series from Mitsubishi Ductless includes this model MY-GL12NA Air Conditioner Mini Split which provides highly efficient solutions for cooling and provides personalized comfort for the individual zones in which they are installed. Mitsubishi Ductless MY-GL12NA Air Conditioner systems are nearly silent; their fans deliver air quietly and continuously with only a gentle whoosh for constant circulation and filtration. For this reason, Mitsubishi Electric split-zoning systems have long been the choice for thousands of homes, churches, schools, and libraries across the U.S. and the world.
Mitsubishi Ductless Air Conditioning Systems features in a nutshell
This Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Split is packed with features making it the perfect solution for your home or business needs. This Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Split has washable filters that last up to 10 years and give you another way to save money and reduce environmental impact. Advanced Multi-Stage Filtration on Mitsubishi Ductless Air Conditioner Mini Splits mean that you can capture and remove contaminants that trigger allergy and asthma symptoms, spread illness and impact air quality.Forget traditional unitary air conditioning systems why not control each zone in your home independently and even turn off zones that are not in use. Another great part of the Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Split Air handlers is that they are in each room and they measure the return air and adjust automatically, rather than adjusting to conditions measured by a thermostat in a different room. Unlike traditional cooling unitary products where it's either always on or always off.
Why are you paying the electrical company for service when you aren't really in the kitchen or den?
It doesn't get any easier, remotely adjust your settings so every room in your home is the perfect temperature, avoiding unexpected cold and hot surprises upon your return. The Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Split also have smart air conditioning condensers. With the Inverter Technology rather than turning on and off at certain temperature thresholds, INVERTER technology continuously ramps up or down to maintain the desired temperature.
Shhh... it's a Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Split in the room
Did you know that the Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Split is Quiet by design? All Mitsubishi system components are designed to work in quiet harmony with details like an insulated compressor compartment and vibration dampeners. Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Split you never have to hear the disruptive clanging of a central air system. With the Mitsubishi Ductless MY-GL12NA Air Conditioner system, that noise is a thing of the past. Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Split solutions and short-run ducted systems deliver cooled air directly to the rooms they serve, without the need for noisy fans.
Do I have to replace my existing unitary air conditioner?
Not at all - chances are great that you have at least one room in your home that's either too hot in the summer or too cold in the winter. Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Splits can easily take care of those hot and cold spots without replacing your current system. In addition, Inverter Technology works such as rather than turning on and off at certain temperature thresholds, INVERTER technology continuously ramps up or down to maintain the desired temperature. Offering maximized energy efficiencies all while maintaining cost at a minimum.
When dealing with either renovations, new construction or replacement the Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Split can fit practically anywhere.
Investing in a home renovation offers you the ultimate luxury of creating fresh new spaces you can enjoy in total comfort. With the Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Split Solutions, you can maximize your comfort while saving energy. No matter the size or scale of your renovation, there are systems to meet your needs. Whether you are building a starter home or the home of your dreams, you deserve to be comfortable 100 percent of the time. The Mitsubishi Ductless MY-GL12NA Air Conditioner Mini Split Solutions allow you to provide each room with its own temperature set point. This is the modern customization you and your family deserve.Every cooling system will need to be replaced at some point. When it's time for a new system in your home, don't settle for the same outdated, inefficient technology. A Ductless Mini Split Comfort Solution from Mitsubishi Electric will improve the efficiency of your cooling, save you money and make your family more comfortable than you ever thought possible.
  • Precision Temperature Control Technology
  • The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Blue Fin Condenser
  • Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Mitsubishi coats their condensers with an anti-rust coating to extend its lifespan.
  • Advanced Filtration System
  • The MSY-GL12NA-U1 combines a hybrid catechin nano platinum filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a cooling profile consisting of a temperature, a fan speed, and an airflow direction. This profile can be activated easily with a single press of the Smart Set button on the remote controller.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSY-GL12NA-U1 can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage. When wide mode is activated, fan speed increases beyond the current setting.
  • Kumo Cloud Compatible
  • Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - The outdoor mini split wall bracket is a simple and sturdy way to mount your outdoor condenser off of the ground.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.
    Bundle Includes 2 items
    • product kit image

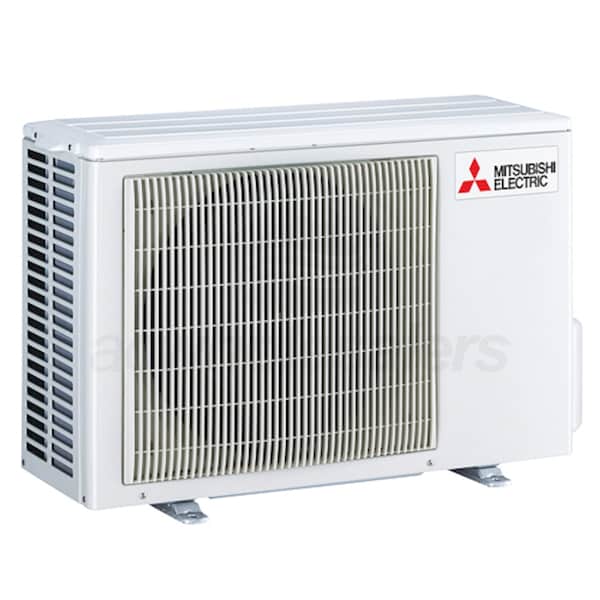

      Mitsubishi 12,000 BTU 23.1 SEER Ductless Air Conditioner Condenser
      Model: MUY-GL12NA-U1
      Item Number: 65046
      Quantity: 1
    • product kit image

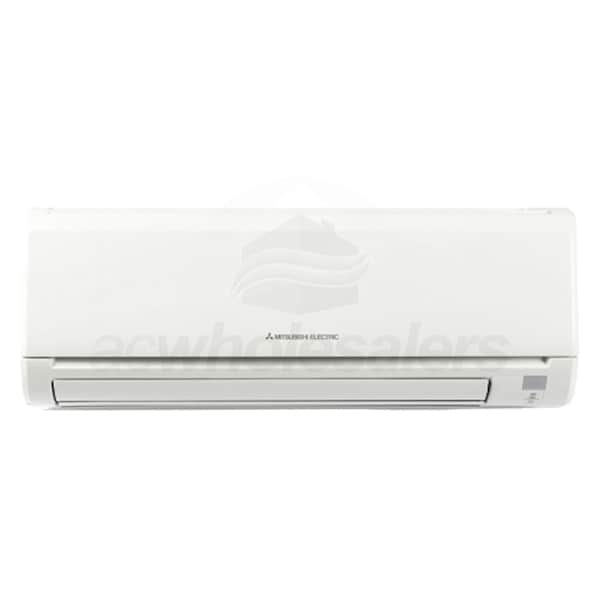

      Mitsubishi 12,000 BTU 23.1 SEER Ductless Air Conditioner Air Handler
      Model: MSY-GL12NA-U1
      Item Number: 65034
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Cooling Only System
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Product Category
    Mini Split Cooling Only System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Outdoor Unit Size
    12000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    23.1
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    13.0
    Cooling Power Input
    920 Watts
    Dimensions
    Product Weight
    99 Pounds
    Shipping Weight
    104 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    8715779
    General Information
    Type
    Outdoor Condenser
    Product Line
    GL-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    12000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    49 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Maximum Line Length
    65 Feet
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    21 5/8 Inches
    Product Width
    31 1/2 Inches
    Product Depth
    11 1/4 Inches
    Product Weight
    77 Pounds
    Shipping Weight
    82 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    GL-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A

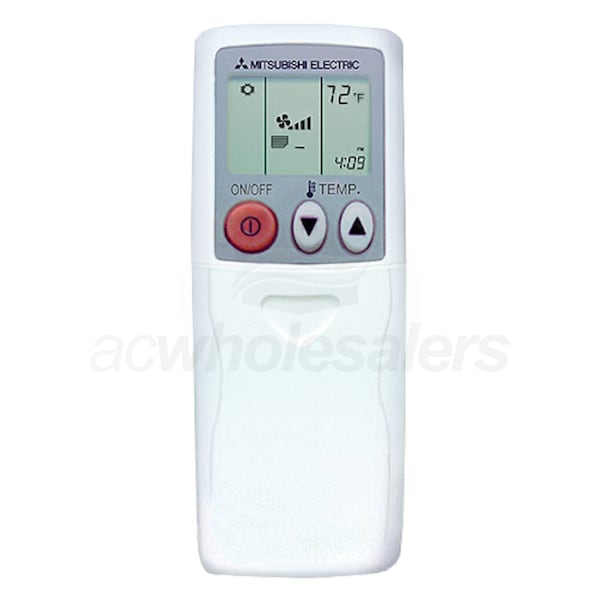

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Moisture Removal
    2.5 Pints/Hour
    Maximum Air Flow
    399 CFM
    Minimum Air Flow
    145 CFM
    Minimum Sound Level
    19 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    45 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    11 5/8 Inches
    Product Width
    31 7/16 Inches
    Product Depth
    9 1/8 Inches
    Product Weight
    22 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Reviews
    5.0 out of 5 stars5.0 out of 5 stars
    (1)
    View More

    Reviews

    Overall Rating from 1 Reviews
    icons-ratings-full
    5.00 / 5
    5 Stars
    (1)
    4 Stars
    (0)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Star
    (0)
    100%of Customers Recommend This Product
    Features
    5.0/5
    Quality
    5.0/5
    Performance
    5.0/5
    Value
    5.0/5
    Sort By:
    5
    Rated Out Of 5
    5.0 out of 5 stars5.0 out of 5 stars
    Best buy for the money
    By Ronald Gelinas
    Check Mark
    Verified Buyers
    Check Mark
    Ronald Gelinas Recommends This
    Purchased 09/03/2019
    Review Posted 06/13/2020
    Installed this at my house, two years ago, to create a quiet comfortable office. Installation was okay, performance fantastic!! This unit, the first mini split I have owned, is nearly silent, cools perfectly, and is extremely efficient. Very little increase in my electric bill. I like it so well that I am now installing another for the master bedroom, which has been so far been cooled, for 12 years, by a noisy window unit. Keep on keeping on, Mitsubishi!
    AC Wholesalers Response
    Good Morning/Afternoon, We thank you for your purchase from ACwholesalers. I understand that you have purchased model # MY-GL12NA - Mitsubishi - 12k BTU Cooling Only - M-Series Wall Mounted Air Conditioning System - 23.1 SEER and see that you are satisfied with your order. Thank you for purchasing with ACwholesalers for your heating and cooling needs. We pride ourselves in creating the perfect experience for our customers. We have all of the latest models from the brands of your choice. We will display field leading distributors along with the brands they carry. If you are looking for professionalism you have come to the right place. Please feel free to browse our website or Contact our call center for any of your heating and cooling needs. Contact Center: 1 866 631 6389 Thank you for shopping with ACwholesalers have a great day !!
    Was this review helpful?
    Thumbs Up Icon
    Yes
    (3)
    Thumbs Down Icon
    No
    (0)
    Manuals
    View More
    Mini Split Cooling Only Wall Mounted - Single Zone Top Products

    ×
    Mitsubishi - 12k BTU Cooling Only - M-Series Wall Mounted Air Conditioning System - 23.1 SEER
    Mitsubishi MY-GL12NA
    Loading
    Mitsubishi MY-GL12NA
    Mitsubishi MY-GL12NA
    Mitsubishi MY-GL12NA
    Mitsubishi MY-GL12NA
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Watch Video
    Mitsubishi MY-GL12NA
    Mitsubishi MY-GL12NA
    Mitsubishi MY-GL12NA
    Mitsubishi MY-GL12NA
    ×
    Customer Review Images
    Loading
