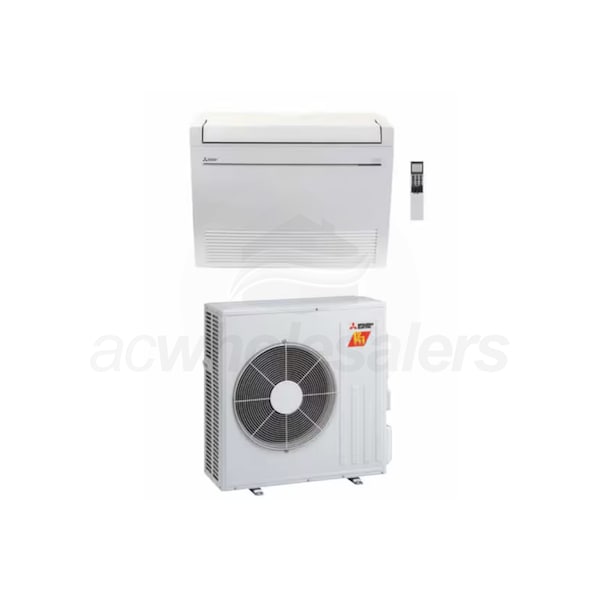

Mitsubishi M-Series - 15k BTU Cooling + Heating - H2i Floor Mounted Air Conditioning System - 21.8 SEER (Scratch and Dent)

Model: MZ-KJ15NA-SD Item Number: 79835
Mitsubishi MZ-KJ15NA-SD
PREVIOUS
NEXT
Mitsubishi MZ-KJ15NA-SD
Mitsubishi MZ-KJ15NA-SD
Mitsubishi MZ-KJ15NA-SD
Mitsubishi MZ-KJ15NA-SD
Enlarge Image
Mitsubishi MZ-KJ15NA-SD
Mitsubishi MZ-KJ15NA-SD
Mitsubishi MZ-KJ15NA-SD
Mitsubishi MZ-KJ15NA-SD
View All
Originally $3,356.99, you save 14%
Our Price: $2,901.18
synchrony card icon
$51 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Only 1 In-Stock
Ships Monday, November 25th
Shipping to60601
Mitsubishi M-Series - 15k BTU Cooling + Heating - H2i Floor Mounted Air Conditioning System - 21.8 SEER (Scratch and Dent)
Mitsubishi M-Series - 15k BTU Cooling + Heating - H2i Floor Mounted Air Conditioning System - 21.8 SEER (Scratch and Dent) Model: MZ-KJ15NA-SD Item Number: 79835
$2,901.18
Only 1 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Base Pan Heater Included
    Yes
Bundle Includes 2 items
  • product image
    (1) Mitsubishi 15,000 BTU Floor Mount Heat Pump Air Handler (MFZ-KJ15NA-U1)
  • product image
    (1) Mitsubishi - 15k BTU - KJ-Series Outdoor Condenser - Single Zone Only - Scratch and Dent (MUFZ-KJ15NAHZ-U1-SD)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MZ-KJ15NA-SD

***Scratch and Dent***Condenser has a dent in the front panel and fin damage. For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Mitsubishi's floor standing indoor units are a great alternative for rooms where you don't have the ceiling height or wall space to allow for a wall mounted unit. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any heating or cooling application.
  • H2i Technology
  • Low or negative ambient temperatures don't bother the MZ-KJ15NA. It is rated for 100% heating capacity at 5 degrees F and continues to provide heating in outdoor conditions as low as -13 F.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a cooling profile and a heating profile, each consisting of a temperature, a fan speed, and an airflow direction. These profiles can be activated easily with a press of the Smart Set button on the remote.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MFZ-KJ can improve the efficiency of cooling operations without compromising the comfort provided.
  • Powerful Mode
  • The powerful setting on the MFZ-KJ makes it easy to get your zone to the perfect temperature quickly. When it is activated, the unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage.
  • Multiple Airflow Options
  • When 2 FLOW is selected the unit will blow air from the top and front of the unit. When 1 FLOW is selected, air only blows from the top of the unit.
  • Dehumidification
  • When the indoor unit is run in dry mode, it will remove unwanted moisture. This improves your comfort and reduces the chance of mold growth and other property damage in the room.
  • Blue Fin Condenser
  • Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Mitsubishi coats their condensers with an anti-rust coating to extend its lifespan.
  • Hot Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Recommended line set sizes for indoor unit connectivity:
  • MFZ-KJ15NA-U1: 1/4" x 1/2" Line Set
  • Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Base Pan Heater Included
    Yes
    General Information
    Type
    Floor Mounted
    Product Line
    M-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    15
    Installation Location
    Indoor
    Performance
    Cooling BTU
    15000
    Cooling Capacity
    15000 BTU
    Maximum Air Flow
    470 CFM
    Minimum Air Flow
    168 CFM
    Minimum Sound Level
    28 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    49 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Drain Outlet Diameter
    5/8 Inch
    Product Height
    23 5/8 Inches
    Product Width
    29 25/48 Inches
    Product Depth
    8 23/48 Inches
    Product Weight
    33 Pounds
    Shipping Width
    32 3/4 Inches
    Shipping Height
    27 3/4 Inches
    Shipping Depth
    12 Inches
    Shipping Weight
    43 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series H2i
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Base Pan Heater Included
    Yes
    Performance
    Cooling BTU
    15000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    16 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Maximum Line Length
    100 Feet
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    34 5/8 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    13 Inches
    Product Weight
    124 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
