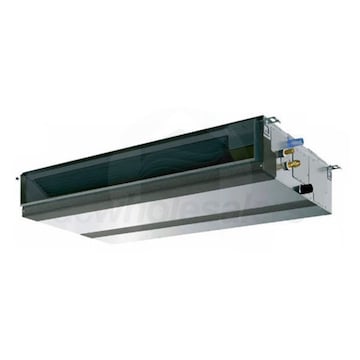

Mitsubishi 9,000 BTU Horizontal Ducted Heat Pump Air Handler

Model: SEZ-KD09NA4R1.TH Item Number: 30720
Mitsubishi SEZ-KD09NA4R1.TH
PREVIOUS
NEXT
Mitsubishi SEZ-KD09NA4R1.TH
Enlarge Image
Mitsubishi SEZ-KD09NA4R1.TH
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
Mitsubishi SEZ-KD09NA4R1.TH
Watch Video
View All
Originally $1,074.75, you save 5%
Our Price: $1,021.01
synchrony card icon
$171 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, November 25th
Shipping to60601
Mitsubishi 9,000 BTU Horizontal Ducted Heat Pump Air Handler
Mitsubishi 9,000 BTU Horizontal Ducted Heat Pump Air Handler Model: SEZ-KD09NA4R1.TH Item Number: 30720
$1,021.01
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    52 Pounds Learn More
    52 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Mitsubishi SEZ-KD09NA4R1.TH

Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center at 866-631-6389 option 1 for alternate options.

Overview for Mitsubishi SEZ-KD09NA4R1.THThe Mr. Slim series from Mitsubishi Electric SEZ ducted units can provide split air-conditioning system advantages with the added benefit of being concealed to provide virtually no visual footprint within the conditioned space other than a register and grille for the air to flow. With the use of short run ductwork, these units can provide comfort to a single room that needs air dispersed evenly throughout the space, unusually shaped rooms, and adjacent rooms. This is an indoor unit only, and requires an outdoor unit to function. Outdoor unit must be purchased separately.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Condensate Removal System
  • The SEZ-KD09NA4R1.TH contains an internal drain mechanism capable of lifting condensate 21-11/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Product Compatible With
  • Mitsubishi MXZ-2B20NA-1 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-3C24NA Mini-Split Outdoor Condenser
  • Mitsubishi MXZ-3C30NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-4C36NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-5C42NA Mini Split Outdoor Condenser
  • Mitsubishi MXZ-8C48NA Mini Split Outdoor Condenser
  • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Concealed Duct
    Product Line
    M-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    8100 BTU
    Moisture Removal
    1.5 Pints/Hour
    Maximum Air Flow
    317 CFM
    Minimum Air Flow
    194 CFM
    Minimum Sound Level
    23 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    30 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 7/8 Inches
    Product Width
    31 1/8 Inches
    Product Depth
    27 9/16 Inches
    Product Weight
    52 Pounds
    Shipping Weight
    62 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
