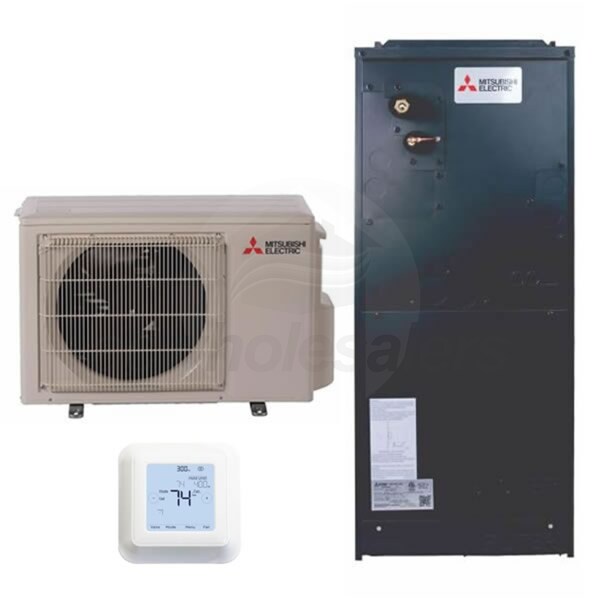

Mitsubishi - 12k BTU Cooling + Heating - M-Series Multi-Position Air Handler Air Conditioning System - 18.0 SEER

Model: SV-KP12NA.TH Item Number: 96636
Mitsubishi SV-KP12NA.TH
PREVIOUS
NEXT
Mitsubishi SV-KP12NA.TH
Mitsubishi SV-KP12NA.TH
Mitsubishi SV-KP12NA.TH
Mitsubishi SV-KP12NA.TH
Enlarge Image
Mitsubishi SV-KP12NA.TH
Mitsubishi SV-KP12NA.TH
Mitsubishi SV-KP12NA.TH
Mitsubishi SV-KP12NA.TH
View All
Originally $3,708.00, you save 10%
Our Price: $3,322.95
synchrony card icon
$59 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
In-Stock
Ships Monday, November 25th
Shipping to60601
Mitsubishi - 12k BTU Cooling + Heating - M-Series Multi-Position Air Handler Air Conditioning System - 18.0 SEER
Mitsubishi - 12k BTU Cooling + Heating - M-Series Multi-Position Air Handler Air Conditioning System - 18.0 SEER Model: SV-KP12NA.TH Item Number: 96636
$3,322.95
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    187 Pounds Learn More
    187 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 3 items
  • product image
    (1) Mitsubishi - 12k BTU - M-Series Multi-Position Air Handler - For Multi or Single-Zone (SVZ-KP12NA)
  • product image
    (1) Mitsubishi - 12k BTU - M-Series Outdoor Condenser - Single Zone Only (SUZ-KA12NA2)
  • product image
    (1) Mitsubishi Wireless Programmable RedLINK Thermostat & Receiver Kit (MHK2)
System BTU/h
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi SV-KP12NA.TH

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The SV-KP12NA.TH is a single zone heat pump air handler system designed to bring high-efficiency temperature control to larger zones. The indoor multi-position air handler is paired with an outdoor condenser that uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any application.
  • Precision Temperature Control Technology
  • The SUZ-KA outdoor condenser uses inverter technology when cooling or heating your home. Rather than simply turning on and off, the outdoor condenser adjusts output based on temperature demand, resulting in efficient and precise heating and cooling.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Energy Efficient Circulation
  • The SVZ-KP air handler includes an ECM blower motor to provide more efficient and more intelligent airflow for your home.
  • Airtight
  • The SVZ-KP air handler features a positive pressure cabinet with less than 2.0% air leakage, allowing your comfort system to produce results at its full potential.
  • Simple Maintenance
  • With a removable blower, the air handler can be easily cleaned and maintained. The air handler also includes a washable filter to ensure the air in your home is as fresh as can be.
  • Flexible Venting
  • With the ability to be installed vertically or horizontally, the SVZ-KP air handler can be easily adapted to fit in any duct system.
  • Advanced Remote Controller
  • The MHK1 wireless remote controller kit supports dual set point control and multiple scheduling options. The Optimal Start function learns how quickly your zone is cooled and heated to ensure the zone is always the right temperature at the right time.
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.
    Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Ducted Vertical Air Handler
    Product Line
    M-Series
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Outdoor Unit Size
    12000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    1/4" x 3/8"
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Heating Capacity
    12000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    18.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.7
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    12.1
    Cooling Power Input
    940 Watts
    Heating Power Input
    1210 Watts
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Weight
    187 Pounds
    Shipping Weight
    191 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    202392053
    General Information
    Type
    Ducted Vertical Air Handler
    Product Line
    M-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    448 CFM
    Minimum Air Flow
    278 CFM
    Minimum Sound Level
    29 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    39 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    39 13/16 Inches
    Product Width
    17 Inches
    Product Depth
    21 5/8 Inches
    Product Weight
    106 Pounds
    Shipping Weight
    106 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Heating BTU
    17000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    51 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    9 Amps
    Recommended Breaker Size
    16 Amps
    Dimensions
    Maximum Line Length
    65 Feet
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    21 5/8 Inches
    Product Width
    31 1/2 Inches
    Product Depth
    11 1/4 Inches
    Product Weight
    81 Pounds
    Shipping Weight
    88 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Mini Split Controller
    Product Line
    RedLINK
    Product Category
    Mini Split Accessories
    Programmable
    Yes
    Power Source
    AA Batteries
    Interface
    Touchscreen
    Performance
    Minimum Operating Temperature
    32 F
    Maximum Operating Temperature
    120 F
    Dimensions
    Product Height
    4 1/12 Inches
    Product Width
    4 1/12 Inches
    Product Depth
    1 1/16 Inches
    Overview
    Product Category
    Mini Split Accessories
