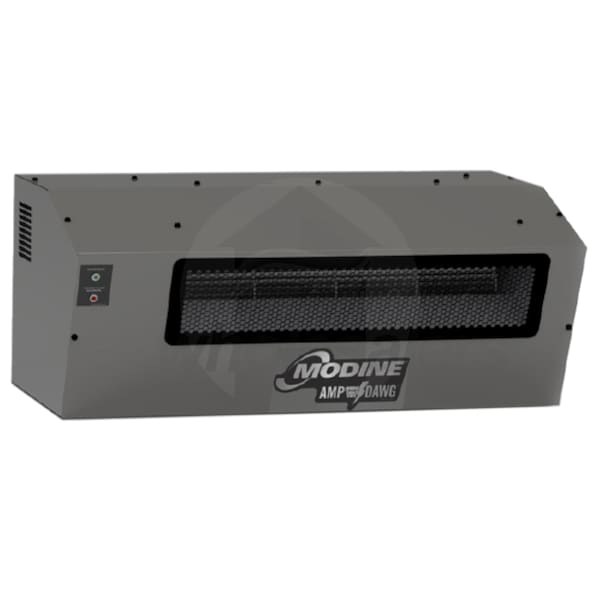

Modine - AmpDawg™ - 9 kW - Electric Unit Heater - 240 Volt

Model: AMP90AA1401 Item Number: 151269
Modine AMP90AA1401
PREVIOUS
NEXT
Modine AMP90AA1401
Enlarge Image
Our Price: $1,599.00
synchrony card icon
$267 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-6 Weeks
Modine - AmpDawg™ - 9 kW - Electric Unit Heater - 240 Volt
Modine - AmpDawg™ - 9 kW - Electric Unit Heater - 240 Volt Model: AMP90AA1401 Item Number: 151269
$1,599.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    52 Pounds Learn More
    52 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    AMP
    Product Category
    Unit Heater
Heating Capacity (kW)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine AMP90AA1401

The durable, commercial grade Modine AmpDawg™ electric unit heater delivers the heating and air throw of a gas-fired unit heater for safe and efficient heating. The Modine AmpDawg™ electric unit heater is low-profile and is ideal for residential and light commercial applications. The 9kW AmpDawg™ allows for application flexibility in your home such as larger garages or workshops and delivers top heating performance and durability.
  • Flexible Installation
  • Providing heating and air throw like a gas unit heater, the Modine AmpDawg™ is ideal for larger workshops and garages; delivering up to a 52° temperature rise to keep you comfortable.
  • Low-Profile
  • With a low-profile design, the Modine AmpDawg™ maximizes garage space.
  • Quiet Operation
  • The Modine AmpDawg™ is virtually silent with no vibration at any speed.
  • Convenient
  • With no venting needed, no fumes and minimal maintenance, the AmpDawg™ is a efficient and convenient way to heat your space.
  • Simple Installation
  • The easy to install AmpDawg™ unit heater can be installed one inch from the ceiling with the included hanging bracket so it won't take up much space.
  • Easy to Control
  • Thermostat controls make it easy to set the temperature to your comfort level and operation indicator lights keep you safe.
  • Decibel Ratings
  • Five Feet from Front - 53.7 dB
  • Ten Feet from Front - 49 dB
  • Fifteen Feet from Front - 46.1 dB
  • Specifications
    View More

    Specifications

    General Information
    Product Line
    AMP
    Product Category
    Unit Heater
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Mount Type
    Suspended
    Installation Location
    Indoor/Outdoor
    Performance
    Heating Capacity
    30690 BTU
    Heating Capacity (kW)
    9 kW
    Air Throw
    26 Feet
    Maximum Air Flow
    550 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    53.7 dB
    Electrical Data
    Voltage
    240 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Height
    11 19/48 Inches
    Product Depth
    15 Inches
    Product Length
    27 Inches
    Product Weight
    52 Pounds
    Shipping Weight
    54 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
