Modine BTX - 400,000 BTU - Unit Heater - NG - 80% Thermal Efficiency - Separated Combustion - Stainless Steel Heat Exchanger

Model: BTX400SS0211 Item Number: 152237
Modine BTX400SS0211
PREVIOUS
NEXT
Modine BTX400SS0211
Enlarge Image
Our Price: $7,500.00
synchrony card icon
$94 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 4-6 Weeks
Modine BTX - 400,000 BTU - Unit Heater - NG - 80% Thermal Efficiency - Separated Combustion - Stainless Steel Heat Exchanger
Modine BTX - 400,000 BTU - Unit Heater - NG - 80% Thermal Efficiency - Separated Combustion - Stainless Steel Heat Exchanger Model: BTX400SS0211 Item Number: 152237
$7,500.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    405 Pounds Learn More
    405 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
    Heat Exchanger Material
    Stainless Steel
Input Capacity (BTU/h)
Select Attribute
Fuel Type
Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Select Attribute
Heat Exchanger Material
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

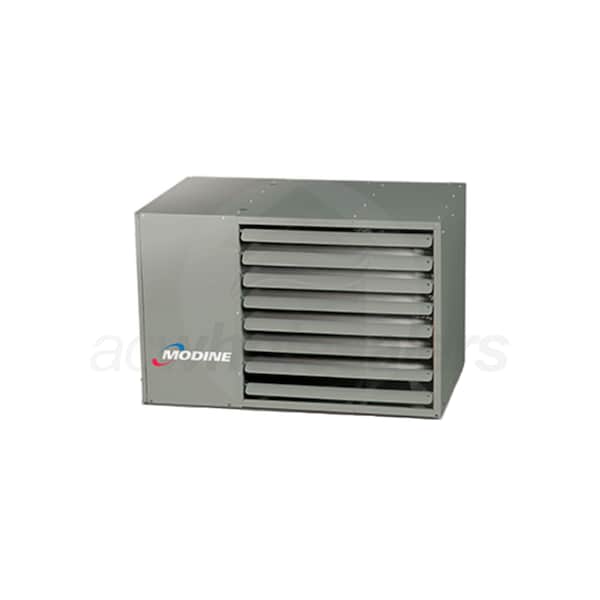

Overview for Modine BTX400SS0211

The Modine name has become synonymous with quality unit heaters in millions of homes and workshops all across the world. Modine's BTX series brings Modine's engineering experience to large capacity unit heaters. The BTX is a well engineered unit heater capable of heating large areas with ease. Adjustable air deflector blades allow the owner to direct air to any point it needs to go, while the in-shot burner on each heat exchanger tube reduces startup and shut-off noise while maximizing reliability.
  • Tubular Heat Exchanger Design
  • The unique tubular heat exchanger design of the BTX provides efficient heat transfer from combusted fuel to surrounding air in a wide variety of conditions. This translates to lower heating costs and faster warm up time.
  • Blower Based Air Propulsion
  • The BTX uses a blower that allows for a range of air speed control and higher moveable air volume, as well as the ability to be integrated into a building's ductwork.
  • Stainless Steel Heat Exchanger
  • The stainless steel heat exchanger has incredible corrosion resistance, high heat transfer and is protected by a full 10 year warranty by Modine.
  • Ignition Controller
  • The ignition controller is designed with safety in mind and features built-in ignition attempt timers. This minimizes the chance of false starts as well as preventing unnecessary gas from being used during the ignition process.
  • Totally Enclosed Motor
  • The T.E motor on the BTX is an industrial motor that does not allow outside air to circulate though the interior of the motor, instead it's cooled by the blower.
  • Separated Combustion Venting System
  • The separated combustion venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors while providing the unit heater with outdoor air for combustion, keeping installation costs low while preserving indoor air quality.
  • Baked-On Polyester Paint
  • The BTX features a neutral colored baked-on polyester powder paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    These alternate power configurations are available for this item:

    • 208V/1Ph/60Hz
    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz

    These alternate power configurations require unique step-down transformers for proper operation. This series of unit heaters is also available with a two stage direct spark ignition. For more information, call our sales department at (866) 554-HEAT (4328).

    Specifications
    View More

    Specifications

    General Information
    Product Category
    Unit Heater
    Heat Exchanger Material
    Stainless Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Gas Conversion Kit
    Available
    Performance
    Heating Capacity
    328000 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    400000 BTU
    Thermal Efficiency
    82 %
    Air Throw
    44 Feet
    Maximum Air Flow
    7407 CFM
    Minimum Air Flow
    4233 CFM
    Electrical Data
    Voltage
    115/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    6 Inches
    Gas Piping Diameter
    3/4 Inch
    Product Height
    39 9/16 Inches
    Product Width
    42 25/48 Inches
    Product Depth
    22 1/24 Inches
    Product Weight
    405 Pounds
    Shipping Weight
    405 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heat Exchanger Warranty
    10 Years
