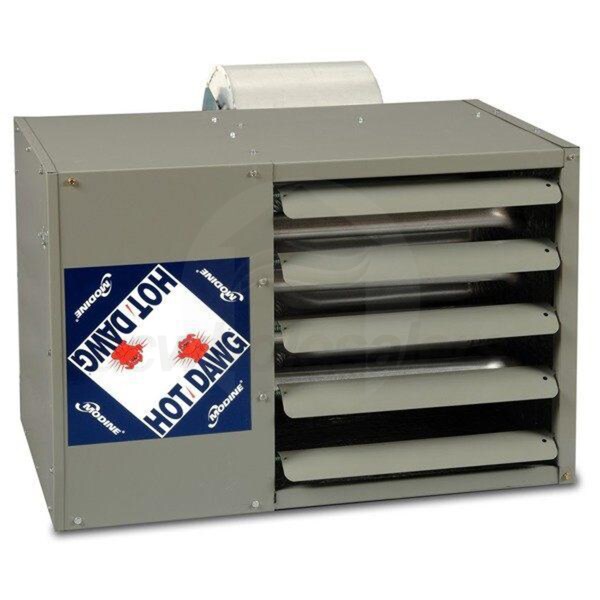

Modine HDC - 125,000 BTU - Unit Heater - LP - 80% Thermal Efficiency - Separated Combustion - Aluminized Steel Heat Exchanger

Model: HDC125AS0121 Item Number: 48352
Modine HDC125AS0121
PREVIOUS
NEXT
Modine HDC125AS0121
Enlarge Image
Our Price: $3,472.00
synchrony card icon
$61 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 4-6 Weeks
Modine HDC - 125,000 BTU - Unit Heater - LP - 80% Thermal Efficiency - Separated Combustion - Aluminized Steel Heat Exchanger
Modine HDC - 125,000 BTU - Unit Heater - LP - 80% Thermal Efficiency - Separated Combustion - Aluminized Steel Heat Exchanger Model: HDC125AS0121 Item Number: 48352
$3,472.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    151 Pounds Learn More
    151 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Input Capacity (BTU/h)
Select Attribute
Fuel Type
Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Select Attribute
Heat Exchanger Material
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine HDC125AS0121

The Modine name has become synonymous with quality unit heaters in millions of homes and workshops all across the world. The HDC125 is no exception to this rule, with sound engineering and reliability to last decades on end. Field wiring connections and electrical knockouts allow the HDC125 to be installed nearly anywhere, while it's quiet operation and a natural, neutral coloring allow it to blend in seamlessly in any location.
  • Blower Based Air Propulsion
  • The HDC125 uses a blower that allows for a range of air speed control and higher moveable air volume, as well as the ability to be integrated into a building's ductwork.
  • Aluminized Steel Heat Exchanger
  • The aluminized steel heat exchanger passes lower manufacturing costs along to the consumer, is incredibly durable and is protected by a full 10 year warranty by Modine.
  • Pressure Safety Switch
  • The HDC125 features an automatic safety shutoff that triggers when the flue exhaust venting system is restricted. This prevents the heater from operating in unsafe conditions or with improper venting.
  • Integrated Direct Spark Control Board
  • An integrated direct spark control board combines all furnace control functions onto one convenient board. This minimizes labor cost for maintenance and repairs by providing LED diagnostics for troubleshooting by your contractor.
  • Permanently Lubricated Motor
  • The motor on the HDC125 has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
  • Seperated Combustion Venting System
  • The seperated combustion venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors while providing the unit heater with outdoor air for combustion, keeping installation costs low while preserving indoor air quality.
  • Baked-On Polyester Paint
  • The HDC125 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    These alternate power configurations are available for this item:

    • 208V/1Ph/60Hz
    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz

    These alternate power configurations require unique step-down transformers for proper operation. This series of unit heaters is also available with a two stage direct spark ignition. For more information, call our sales department at (866) 554-HEAT (4328).

    Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Product Line
    Hot Dawg HDC
    Product Category
    Unit Heater
    Heat Exchanger Material
    Aluminized Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Liquid Propane
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Gas Conversion Kit
    Available
    Performance
    Heating Capacity
    102500 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    125000 BTU
    Thermal Efficiency
    80 %
    Maximum Air Flow
    2058 CFM
    Minimum Air Flow
    1235 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    4 Inches
    Gas Piping Diameter
    1/2 Inch
    Product Height
    20 1/2 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    41 1/2 Inches
    Product Weight
    151 Pounds
    Shipping Weight
    151 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heat Exchanger Warranty
    10 Years
