Modine MEW - 7.5 kW - Corrosion-Resistant Washdown Unit Heater - 208V/Single Phase - 12" Fan

Model: MEW-208-160-075 Item Number: 154082
Modine MEW-208-160-075
PREVIOUS
NEXT
Modine MEW-208-160-075
Enlarge Image
Originally $4,557.00, you save 0%
Our Price: $4,556.20
synchrony card icon
$57 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 6-8 Weeks
Modine MEW - 7.5 kW - Corrosion-Resistant Washdown Unit Heater - 208V/Single Phase - 12
Modine MEW - 7.5 kW - Corrosion-Resistant Washdown Unit Heater - 208V/Single Phase - 12" Fan Model: MEW-208-160-075 Item Number: 154082
$4,556.20
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    75 Pounds Learn More
    75 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    MEW
    Product Category
    Unit Heater
Heating Capacity (kW)
Select Attribute
Voltage / Phase
Select Attribute
Features
View More

Features

Overview for Modine MEW-208-160-075

The Modine MEW Corrosion-Resistant Washdown Unit Heater brings comfort to washdown and corrosive environments. The NEMA 4X rated unit heater withstands water penetration, giving it industrial-grade durability and a longer life. The Modine Corrosion-Resistant Washdown Unit Heater is made with stainless steel elements that provide protection and help to improve heat distribution while epoxy-coated fan blades aid in longer operational life. Features like built-in controls and an included mounting kit give the Modine MEW flexible installation options. Modine MEW Corrosion-Resistant Washdown Unit Heaters are ideal for applications such as farming and agriculture, food and beverage production, car washes and more.
  • Corrosion-Resistant
  • The Modine MEW Corrosion-Resistant Washdown Unit Heater features stainless steel elements that provide protection from corrosion as well as improved heat distribution.
  • NEMA Rated
  • With a NEMA 4X rating, the MEW will have a longer life in corrosive and washdown environments like farming and agriculture, oil and gas industries, dairy, petrochemical and more.
  • Flexible Installation
  • The Modine MEW Corrosion-Resistant Washdown Unit Heater includes a Type 304, stainless steel universal mounting bracket, making installation simple.
  • 120 Volt Controls
  • Featuring 120 volt, built-in controls, the Modine MEW Corrosion-Resistant Washdown Unit Heater provides better contractor pull-in reliability.
  • Product Note

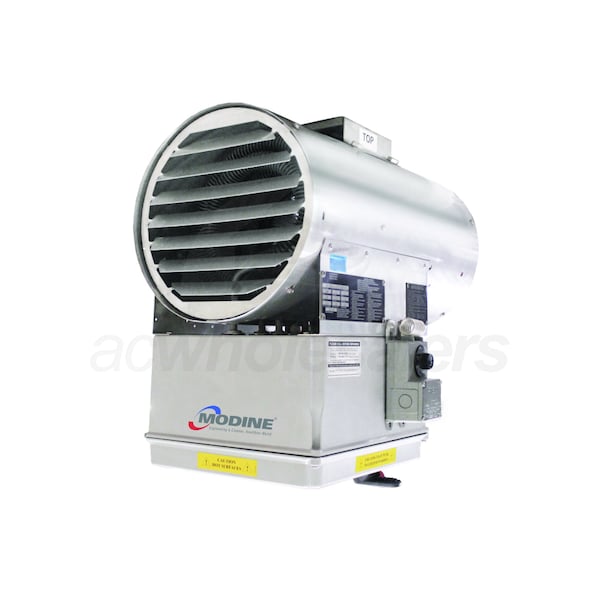

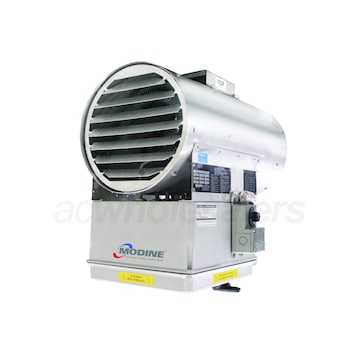

    The Modine MEW series are suitable for non-hazardous locations only. They are for washdown applications using water pressure less than 70 psi. Please contact us directly for assistance if you require US Coast Guard Marine Rating. The product image shows the unit heater with the optional disconnect and built-in thermostat. These accessories are not included with this products.
    Specifications
    View More

    Specifications

    General Information
    Product Line
    MEW
    Product Category
    Unit Heater
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Mount Type
    Suspended
    Installation Location
    Indoor/Outdoor
    UPC
    046629801925
    Performance
    Heating Capacity (kW)
    7.5 kW
    Air Throw
    22 Feet
    Maximum Air Flow
    700 CFM
    Electrical Data
    Voltage
    208 Volts
    Phase
    1
    Dimensions
    Product Height
    24 5/48 Inches
    Product Width
    12 19/24 Inches
    Product Length
    24 19/48 Inches
    Product Weight
    75 Pounds
    Shipping Weight
    125 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
