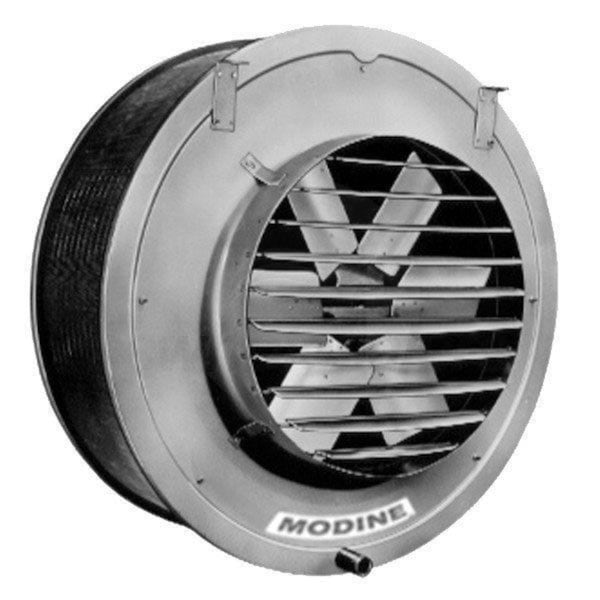

Modine PT - 610,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Copper Heat Exchanger

Model: PT610S04 Item Number: 48566
Modine PT610S04
PREVIOUS
NEXT
Modine PT610S04
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    472 Pounds Learn More
    472 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Recommended Accessories
View More
Installation Accessories
Modine 50 to 80 Degrees F - Line Voltage Stat - 16 Amps @ 115V - 8 Amps @ 230V
Model: 23124
Qty
$130.00
Only 1 In-Stock
Add To Cart
Modine Explosion Proof Thermostat - 10.2 Amps @ 115V - 46 to 84 Degrees F
Model: 79168
Qty
$770.00
Ships in 6-8 Weeks
Add To Cart
Features
View More

Features

Overview for Modine PT610S04

Modine's PT610 is a high grade hot water/steam unit heater that can be fitted into a new or already existing hydronic system with ease. The PT610 can emit 610,000 BTU/hr of heating power with a powerful fan behind it for air propulsion. High grade steel is used for the casing to ensure durability and longevity. Designed for vertical use, the unit heater is well suited for large warehouse use or buildings with tall ceilings. Combined with a simple wiring setup and easy to service motor, the PT610 is an excellent piece of engineering that will serve any building well for years to come.
  • Easy to Manage Wiring
  • The PT610 has easy to manage wiring that all terminates inside of a junction box. This reduces wiring time for your contractor, resulting in cost savings for installation and maintenance.
  • Tapped Suspension Holes
  • The PT610 comes with pre-drilled tapped holes for suspension by threaded rod. This reduces installation time for your contractor, saving you money on installation.
  • Perfectly Suited for Large Rooms
  • The Powerful fan of the PT610 makes it perfectly suited to blanket walls with heat. This is a great way to heat areas that contain an outside door, as the powerful air propulsion leaves no corner untouched.
  • Vertical Fin Design
  • Vertical fin design on the PT610 provides minimal opportunity for dust to collect on the fins. This decreases both required maintenance and cleaning time.
  • Baked-On Polyester Paint
  • The PT610 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    This product is available in multiple power configurations, including:

    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz

    For ordering information, call our sales department at (866) 554-HEAT (4328).

    Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Product Line
    PT
    Product Category
    Unit Heater
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Steam/Hot Water
    Heat Exchanger Material
    Copper
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Hydronic
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    610000 BTU
    Air Throw
    140 Feet
    Maximum Air Flow
    11750 CFM
    Electrical Data
    Voltage
    208 Volts
    Phase
    3
    Frequency
    60 Hz
    Dimensions
    Supply Connection
    2 1/2 Inches
    Return Connection
    1 1/2 Inches
    Product Height
    51 1/2 Inches
    Product Width
    51 1/2 Inches
    Product Depth
    29 5/8 Inches
    Product Weight
    472 Pounds
    Shipping Weight
    472 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
