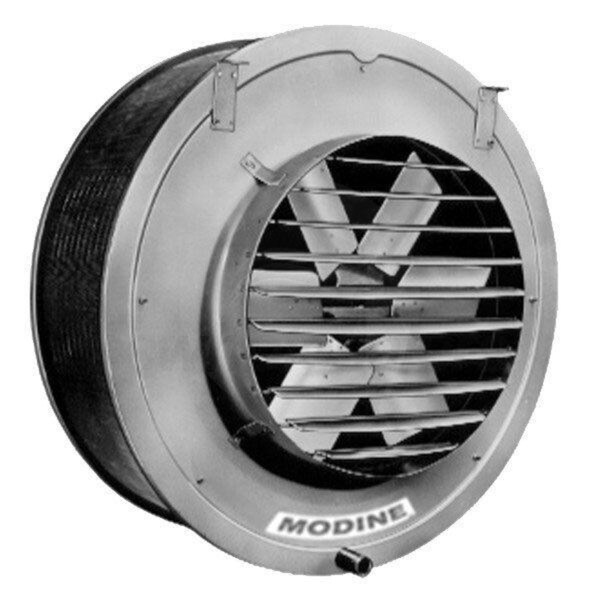

Modine PT - 952,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Copper Heat Exchanger

Model: PT952S04 Item Number: 48567
Modine PT952S04
PREVIOUS
NEXT
Modine PT952S04
Enlarge Image
Our Price: $12,527.00
synchrony card icon
$157 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 6-8 Weeks
Modine PT - 952,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Copper Heat Exchanger
Modine PT - 952,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Copper Heat Exchanger Model: PT952S04 Item Number: 48567
$12,527.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    487 Pounds Learn More
    487 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Input Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine PT952S04

Modine's PT952 is a high grade hot water/steam unit heater that can be fitted into a new or already existing hydronic system with ease. The PT952 can emit 952,000 BTU/hr of heating power with a powerful fan behind it for air propulsion. High grade steel is used for the casing to ensure durability and longevity. Designed for vertical use, the unit heater is well suited for large warehouse use or buildings with tall ceilings. Combined with a simple wiring setup and easy to service motor, the PT952 is an excellent piece of engineering that will serve any building well for years to come.
  • Easy to Manage Wiring
  • The PT952 has easy to manage wiring that all terminates inside of a junction box. This reduces wiring time for your contractor, resulting in cost savings for installation and maintenance.
  • Tapped Suspension Holes
  • The PT952 comes with pre-drilled tapped holes for suspension by threaded rod. This reduces installation time for your contractor, saving you money on installation.
  • Perfectly Suited for Large Rooms
  • The Powerful fan of the PT952 makes it perfectly suited to blanket walls with heat. This is a great way to heat areas that contain an outside door, as the powerful air propulsion leaves no corner untouched.
  • Vertical Fin Design
  • Vertical fin design on the PT952 provides minimal opportunity for dust to collect on the fins. This decreases both required maintenance and cleaning time.
  • Baked-On Polyester Paint
  • The PT952 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    This product is available in multiple power configurations, including:

    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz

    For ordering information, call our sales department at (866) 554-HEAT (4328).

    Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Product Line
    PT
    Product Category
    Unit Heater
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Steam/Hot Water
    Heat Exchanger Material
    Copper
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Hydronic
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    952000 BTU
    Air Throw
    145 Feet
    Maximum Air Flow
    12170 CFM
    Electrical Data
    Voltage
    208 Volts
    Phase
    3
    Frequency
    60 Hz
    Dimensions
    Supply Connection
    3 Inches
    Return Connection
    3 Inches
    Product Height
    53 3/4 Inches
    Product Width
    53 3/4 Inches
    Product Depth
    26 3/8 Inches
    Product Weight
    487 Pounds
    Shipping Weight
    487 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
