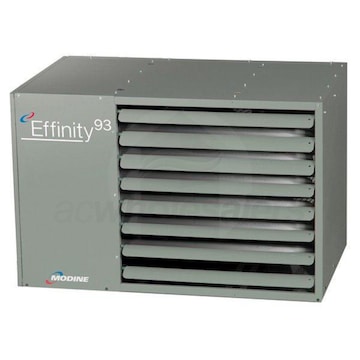

Modine Effinity93 - 215,000 BTU - High Efficiency Unit Heater - LP - 93% Thermal Efficiency - Separated Combustion

Model: PTC215AS0121 Item Number: 48216
Modine PTC215AS0121
PREVIOUS
NEXT
Modine PTC215AS0121
Enlarge Image
Originally $4,954.00, you save 5%
Our Price: $4,706.00
synchrony card icon
$59 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 2-3 Weeks
Modine Effinity93 - 215,000 BTU - High Efficiency Unit Heater - LP - 93% Thermal Efficiency - Separated Combustion
Modine Effinity93 - 215,000 BTU - High Efficiency Unit Heater - LP - 93% Thermal Efficiency - Separated Combustion Model: PTC215AS0121 Item Number: 48216
$4,706.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    265 Pounds Learn More
    265 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Input Capacity (BTU/h)
Select Attribute
Fuel Type
Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Select Attribute
Heat Exchanger Material
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine PTC215AS0121

The PTC215 is a fully condensing unit heater, a first for the unit heater market. Modine has developed a number of new technologiesto make the Effinity93 line a revolutionary step in the unit heater market, including condensing technology that allows the PTC215 to have an efficiency rating of 93% Thermal Efficiency. The PTC215 is a well engineered, complete package capable of heating large environments while simultaneously keeping heating bills as low as possible and requiring minimal maintenance.
  • Condensing Technology
  • Modine has adapted the condensing technology found in boilers to the Effinity93 line. The result is a clean, powerful unit heater that can reach efficiencies of up to 93 percent. This keeps heating bills as low as possible.
  • Conservicore Anti-Corrosion Technology
  • Modine's unique Conservicore technology prevents corrosion to the heat exchanger, ensuring that your unit heater investment will last as long as possible.
  • Electric Knockouts
  • Electric wiring knockouts and field wiring connections on the PTC215 keep installation costs low and save time during both installation and maintenance for your contractor by simplifing all required electrical work.
  • Permanently Lubricated Motor
  • The motor on the PTC215 has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
  • Power Venting System
  • The power venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors, and requires minimal installation labor. This keeps installation related costs as low as possible.
  • Aluminized Steel Heat Exchanger
  • The aluminized steel heat exchanger passes lower manufacturing costs along to the consumer, is incredibly durable and is protected by a full 10 year warranty by Modine.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    These alternate power configurations are available for this item:

    • 208V/1Ph/60Hz
    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz

    These alternate power configurations require unique step-down transformers for proper operation. For more information, call our sales department at (866) 554-HEAT (4328).

    Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Product Line
    Effinity93
    Product Category
    Unit Heater
    Heat Exchanger Material
    Aluminized Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Liquid Propane
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Gas Conversion Kit
    Available
    Performance
    Heating Capacity
    199950 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    215000 BTU
    Thermal Efficiency
    93 %
    Maximum Air Flow
    3865 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    4 Inches
    Gas Piping Diameter
    3/4 Inch
    Product Height
    31 5/16 Inches
    Product Width
    42 25/48 Inches
    Product Depth
    33 10/12 Inches
    Product Weight
    265 Pounds
    Shipping Weight
    265 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heat Exchanger Warranty
    10 Years
