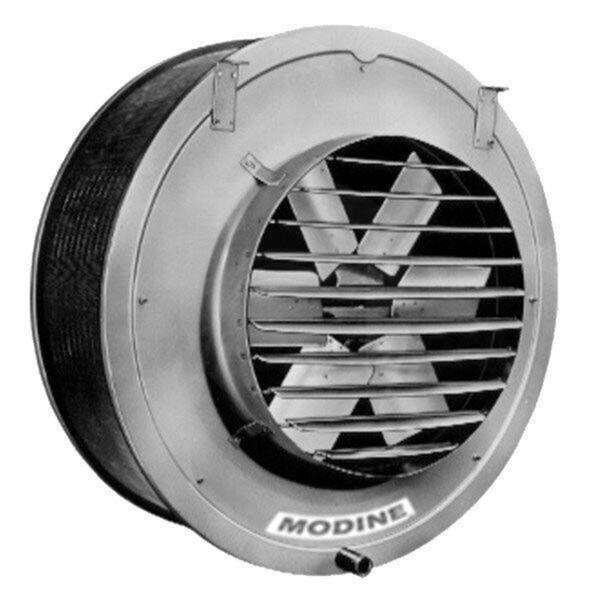

Modine PTN - 500,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Cupro Nickel Heat Exchanger
NewNewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
376 Pounds376 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Modine's PTN500 is a high grade hot water/steam unit heater that can be fitted into a new or already existing hydronic system with ease. The PTN500 can emit 500,000 BTU/hr of heating power with a powerful fan behind it for air propulsion. High grade steel is used for the casing to ensure durability and longevity. Designed for horizontal use, the unit heater is well suited for most applications, including large warehouse use or buildings with long corridors. Combined with a simple wiring setup and easy to service motor, the PTN500 is an excellent piece of engineering that will serve any building well for years to come.
Easy to Manage Wiring
The PTN500 has easy to manage wiring that all terminates inside of a junction box. This reduces wiring time for your contractor, resulting in cost savings for installation and maintenance.
Tapped Suspension Holes
The PTN500 comes with pre-drilled tapped holes for suspension by threaded rod. This reduces installation time for your contractor, saving you money on installation.
Vertical Fin Design
Vertical fin design on the PTN500 provides minimal opportunity for dust to collect on the fins. This decreases both required maintenance and cleaning time.
Baked-On Polyester Paint
The PTN500 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
Cupro-Nickel Heat Exchanger
The PTN500 uses a cupro-nickel alloy for its heat exchanger instead of standard copper, allowing it to withstand much higher temperatures and pressures.
Modine Installation
Installation by a professional installer is required by the manufacturer.
Product Note
This product is available in multiple power configurations, including:
230V/3Ph/60Hz
460V/3Ph/60Hz
575V/3Ph/60Hz
For ordering information, call our sales department at (866) 554-HEAT (4328).
Specifications
Specifications
Overview
Product Category
Unit Heater
General Information
Product Line
PTN
Product Category
Unit Heater
Medium MediumMedium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam/Hot Water
Heat Exchanger Material
Cupro-Nickel
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity Maximum Input CapacityThe Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
500000 BTU
Air Throw
130 Feet
Maximum Air Flow
10390 CFM
Electrical Data
Voltage
208 Volts
Phase
3
Frequency
60 Hz
Dimensions
Supply Connection
2 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
43 1/4 Inches
Product Width
43 1/4 Inches
Product Depth
29 Inches
Product Weight
376 Pounds
Shipping Weight
376 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
