Modine PTS - 200,000 BTU - Unit Heater - NG - 80% Thermal Efficiency - Separated Combustion - Stainless Steel Heat Exchanger

Model: PTS200SS0111 Item Number: 48601
Modine PTS200SS0111
PREVIOUS
NEXT

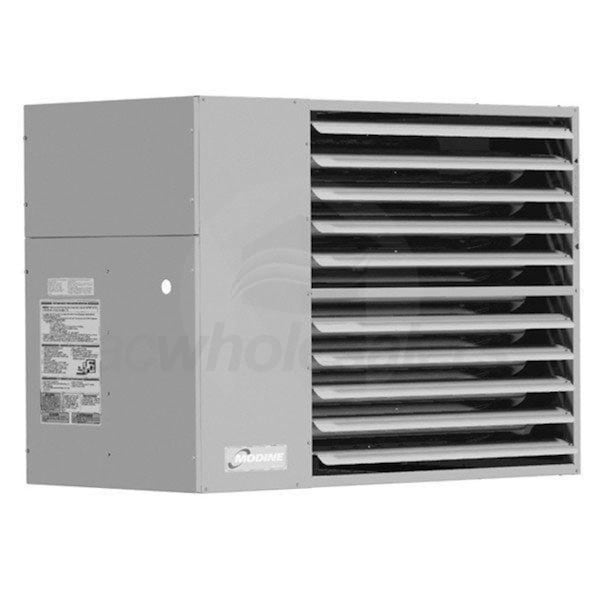

Modine PTS200SS0111
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    215 Pounds Learn More
    215 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine PTS200SS0111

Modine's PTS series brings Modine's engineering experience to large capacity unit heaters. The PTS200 is a well engineered unit heater capable of heating large areas with little effort. Adjustable air deflector blades allow the owner to direct air to any point it needs to go, while the In-shot burner on each heat exchanger tube reduces startup and shut-off noise while maximizing reliability.
  • Tubular Heat Exchanger Design
  • The unique tubular heat exchanger design of the PTS200 provides efficient heat transfer from combusted fuel to surrounding air in a wide variety of conditions. This translates to lower heating costs and faster warm up time.
  • Stainless Steel Heat Exchanger
  • The stainless steel heat exchanger has incredible corrosion resistance, high heat transfer and is protected by a full 10 year warranty by Modine.
  • Electric Knockouts
  • Electric wiring knockouts and field wiring connections on the PTS200 keep installation costs low and save time during both installation and maintenance for your contractor by simplifing all required electrical work.
  • Permanently Lubricated Motor
  • The motor on the PTS200 has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
  • Seperated Combustion Venting System
  • The seperated combustion venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors while providing the unit heater with outdoor air for combustion, keeping installation costs low while preserving indoor air quality.
  • Baked Polyester Paint
  • The PTS200 features a neutral colored baked on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    These alternate power configurations are available for this item:

    • 208V/1Ph/60Hz
    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz

    These alternate power configurations require unique step-down transformers for proper operation. This series of unit heaters is also available with a two stage direct spark ignition. For more information, call our sales department at (866) 554-HEAT (4328).

    Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Product Line
    PTS
    Product Category
    Unit Heater
    Heat Exchanger Material
    Stainless Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Gas Conversion Kit
    Available
    Performance
    Heating Capacity
    160000 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    200000 BTU
    Thermal Efficiency
    80 %
    Air Throw
    54 Feet
    Maximum Air Flow
    3015 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    4 Inches
    Gas Piping Diameter
    1/2 Inch
    Product Height
    25 13/16 Inches
    Product Width
    42 25/48 Inches
    Product Depth
    34 7/16 Inches
    Product Weight
    215 Pounds
    Shipping Weight
    215 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heat Exchanger Warranty
    10 Years
