Modine VE - 20 kW - Electric Unit Heater - 480V/60Hz/3 Phase - Vertical Orientation

Model: VE200B3301 Item Number: 48823
Modine VE200B3301
PREVIOUS
NEXT
Modine VE200B3301
Modine VE200B3301
Enlarge Image
Modine VE200B3301
Modine VE200B3301
View All
Originally $3,228.00, you save 5%
Our Price: $3,066.00
synchrony card icon
$54 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 12-16 Weeks
Modine VE - 20 kW - Electric Unit Heater - 480V/60Hz/3 Phase - Vertical Orientation
Modine VE - 20 kW - Electric Unit Heater - 480V/60Hz/3 Phase - Vertical Orientation Model: VE200B3301 Item Number: 48823
$3,066.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    72 Pounds Learn More
    72 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Input Capacity (kW)
Select Attribute
Voltage / Phase
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

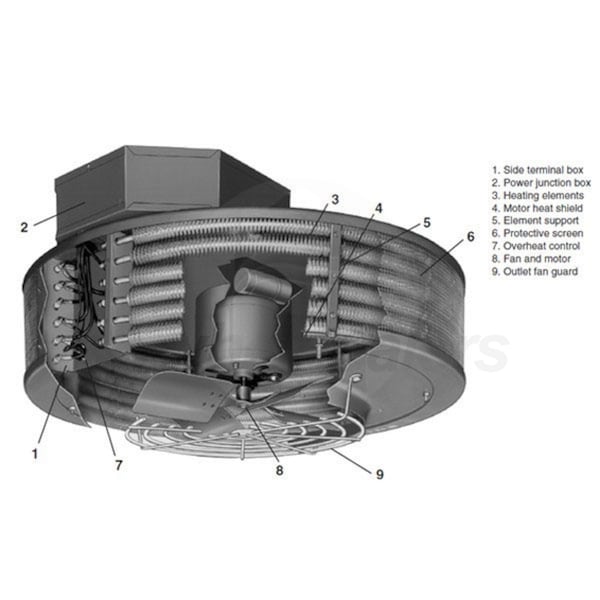

Overview for Modine VE200B3301

Modine's VE200 electric unit heater is a fantastic heating tool that is easy to use and service. Installation costs of electric unit heaters are comparably lower than their gas or hydronic counterparts, a standard Modine extends upon by providing fully furnished terminal blocks to simplify power and control wiring. An easily accessible bottom panel makes the VE200 easy to service and maintain, and the automatic reset control ensures that the unit heater's sensitive elements remain safe and sound even during high operating temperatures.
  • Thermally Protected Motor
  • The air propulsion motor included on the VE200 is entirely enclosed and thermally protected. Rubber vibration guards and the lightweight aluminum fan give the air propulsion system of the VE200 a notably long service life.
  • Nickel Chromium Heating Element
  • The heating element of the VE200 consists of nickel-chromium wire elements enclosed in powder-filled aluminum coated steel tubes. This arrangement makes the heating element highly resistant to thermal shock and vibration.
  • Safety Fan Guard
  • The fan guard of the VE200 is formed of heavy gauge steel rod stock, providing substantial support for the motor and protection from the exposed fan.
  • Perfectly Suited for Tall Ceilings
  • The powerful fan and vertical orientation combined with its numerous louver and fin accessories make the VE200 perfectly suited to warehouse and tall ceiling heating applications.
  • Control Compartment
  • The control compartment included on the VE200 safely encloses terminal blocks, fuses, and the large transformer. This provides a central location for easy field wiring and protects sensitive, high current elements from accidental damage.
  • Automatic Safety Reset Control
  • In the event of overheating, the included reset control interrupts the power supply to the heating elements until the ambient temperature has fallen to acceptable operating levels.
  • Baked-On Polyester Paint
  • The VE200 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    This product has other power configurations available for order, including:

    • 240V/60Hz/3 Phase

    For ordering information, call our sales department at (866) 554-HEAT (4328).

    Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Type
    Standard
    Product Line
    VE
    Product Category
    Unit Heater
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Vertical
    Mount Type
    Suspended
    Performance
    Heating Capacity
    64800 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    64800 BTU
    Heating Capacity (kW)
    20 kW
    Maximum Air Flow
    1600 CFM
    Electrical Data
    Voltage
    480 Volts
    Phase
    3
    Frequency
    60 Hz
    Current Draw
    24.08 Amps
    Dimensions
    Product Height
    17 1/8 Inches
    Product Width
    24 7/8 Inches
    Product Depth
    24 7/8 Inches
    Product Weight
    72 Pounds
    Shipping Weight
    82 Pounds
    Certifications
    Country of Origin
    United States
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
