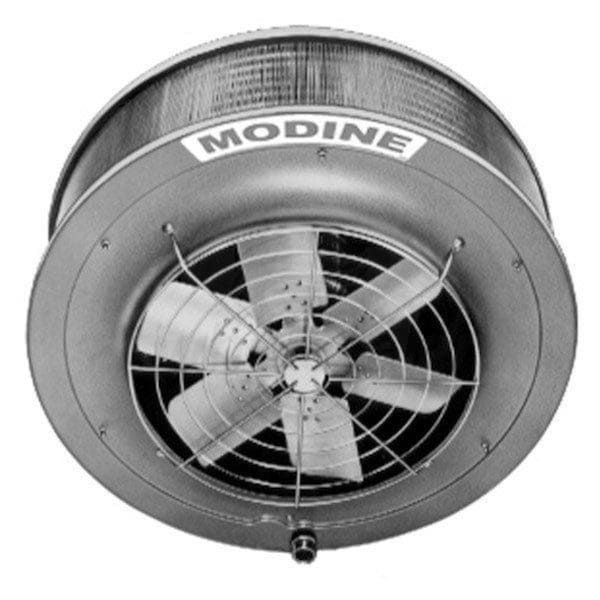

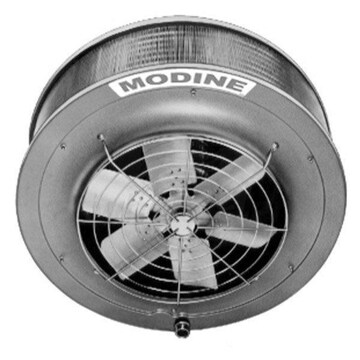

Modine VN - 95,000 BTU - Hot Water/Steam Unit Heater - Vertical - Cupro Nickel Heat Exchanger

Model: VN95S01 Item Number: 48871
Modine VN95S01
PREVIOUS
NEXT
Modine VN95S01
Enlarge Image
Our Price: $1,957.00
synchrony card icon
$327 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 6-8 Weeks
Modine VN - 95,000 BTU - Hot Water/Steam Unit Heater - Vertical - Cupro Nickel Heat Exchanger
Modine VN - 95,000 BTU - Hot Water/Steam Unit Heater - Vertical - Cupro Nickel Heat Exchanger Model: VN95S01 Item Number: 48871
$1,957.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Unit Heater
Input Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine VN95S01

Modine's VN95 is a high grade hot water/steam unit heater that can be fitted into a new or already existing hydronic system with ease. The VN95 can emit 95,000 BTU/hr of heating power with a powerful fan behind it for air propulsion. High grade steel is used for the casing to ensure durability and longevity. Designed for vertical use, the unit heater is well suited for large warehouse use or buildings with tall ceilings. Combined with a simple wiring setup and easy to service motor, the VN95 is an excellent piece of engineering that will serve any building well for years to come.
  • Motor Cooling Cone
  • The VN95 comes equipped with a motor cooling cone standard. This cooling cone shields the motor from heat from the coil, extending the life of the motor and reducing routine maintenance needs.
  • Easy to Manage Wiring
  • The VN95 has easy to manage wiring that all terminates inside of a junction box. This reduces wiring time for your contractor, resulting in cost savings for installation and maintenance.
  • Tapped Suspension Holes
  • The VN95 comes with pre-drilled tapped holes for suspension by threaded rod. This reduces installation time for your contractor, saving you money on installation.
  • Perfectly Suited for Tall Ceilings
  • The powerful fan and vertical orientation combined with its numerous louvre and fin accessories make the VN95 perfectly suited for warehouse and tall ceiling heating applications.
  • Vertical Fin Design
  • Vertical fin design on the VN95 provides minimal opportunity for dust to collect on the fins. This decreases both required maintenance and cleaning time.
  • Baked-On Polyester Paint
  • The VN95 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Cupro-Nickel Heat Exchanger
  • The VN95 uses a cupro-nickel alloy for its heat exchanger instead of standard copper, allowing it to withstand much higher temperatures and pressures.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    This product is available in multiple power configurations, including:

    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz

    For ordering information, call our sales department at (866) 554-HEAT (4328).

    Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Product Line
    VN
    Product Category
    Unit Heater
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Steam/Hot Water
    Heat Exchanger Material
    Cupro-Nickel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Hydronic
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Vertical
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    95000 BTU
    Air Throw
    23 Feet
    Maximum Air Flow
    1665 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Supply Connection
    1 1/4 Inches
    Return Connection
    1 1/4 Inches
    Product Height
    24 3/4 Inches
    Product Width
    24 3/4 Inches
    Product Depth
    8 1/8 Inches
    Shipping Weight
    48 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.
