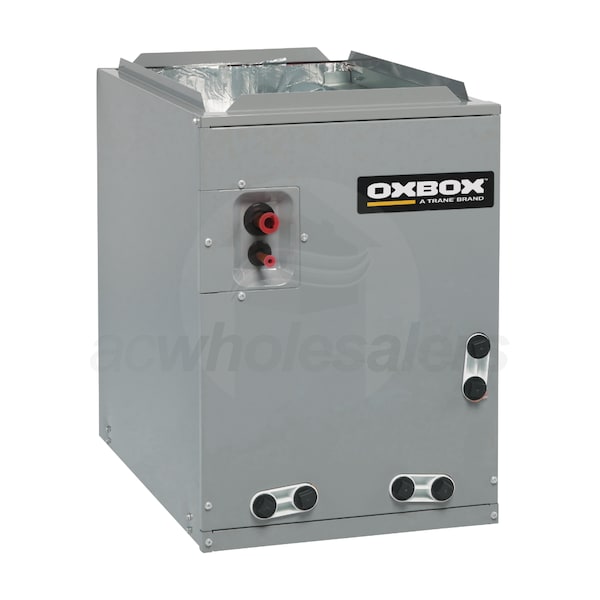

Oxbox 3 to 4 Ton 21 in. Wide A/C Evaporator Cased Coil

Model: J4MXCC017AC6HCA Item Number: 110437
Oxbox J4MXCC017AC6HCA
PREVIOUS
NEXT
Oxbox J4MXCC017AC6HCA
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    71.4 Pounds Learn More
    71.4 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Evaporator Coil
Orientation
Learn More
Orientation
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Select Attribute
Cabinet Width (Inches)
Select Attribute
Coil Height (Inches)
Select Attribute
Features
View More

Features

Overview for Oxbox J4MXCC017AC6HCA

Oxbox indoor air coils are designed to heat or cool your central system's air while maximizing the efficiency of all of its components. The all-aluminum coil design provides maximum heat transfer while its foil-faced thermal insulation ensures you won't be wasting energy. This coil allows for both upflow and downflow installations.

Maximum Efficiency

The Oxbox indoor coil's sole purpose is to effectively transfer the heated or cooled air from your system to your home while maximizing its efficiency.

All-aluminum Coil

The Oxbox indoor coil includes an all-aluminum coil for advanced heat transfer and efficiency.

Foil-faced Insulation

The indoor air coil feature foil-faced insulation for simple cleaning and reduced service time. The insulation traps in heated and cooled air to ensure you're getting the most out of your central air system.

  • Maximum Efficiency
  • The Oxbox indoor coil's sole purpose is to effectively transfer the heated or cooled air from your system to your home while maximizing its efficiency.
  • All-aluminum Coil
  • The Oxbox indoor coil includes an all-aluminum coil for advanced heat transfer and efficiency.
  • Foil-faced Insulation
  • The indoor air coil feature foil-faced insulation for simple cleaning and reduced service time. The insulation traps in heated and cooled air to ensure you're getting the most out of your central air system.
  • Product Note
  • In order to maintain the warranty, product must be installed by a licensed contractor. Proof of installation by a licensed contractor is required.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Evaporator Coil
    General Information
    Type
    Evaporator Coil
    Product Line
    J4MXC
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 - 4.0 Tons
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    30 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    71.4 Pounds
    Shipping Height
    32 13/48 Inches
    Shipping Width
    24 2/12 Inches
    Shipping Length
    24 23/24 Inches
    Shipping Weight
    81.6 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
