ProSelect® Force™ Boilers - 85k BTU - 82% AFUE - Steam Gas Boiler - Chimney Vent

Model: FORCESTEAM05NH Item Number: 111060
ProSelect Force Boilers FORCESTEAM05NH
PREVIOUS
NEXT
ProSelect Force Boilers FORCESTEAM05NH
Enlarge Image
Our Price: $3,277.00
synchrony card icon
$58 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
In-Stock
Ships Monday, November 18th
Shipping to60601
ProSelect® Force™ Boilers - 85k BTU - 82% AFUE - Steam Gas Boiler - Chimney Vent
ProSelect® Force™ Boilers - 85k BTU - 82% AFUE - Steam Gas Boiler - Chimney Vent Model: FORCESTEAM05NH Item Number: 111060
$3,277.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Boiler
Net IBR Capacity (BTU/hr)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for ProSelect Force Boilers FORCESTEAM05NH

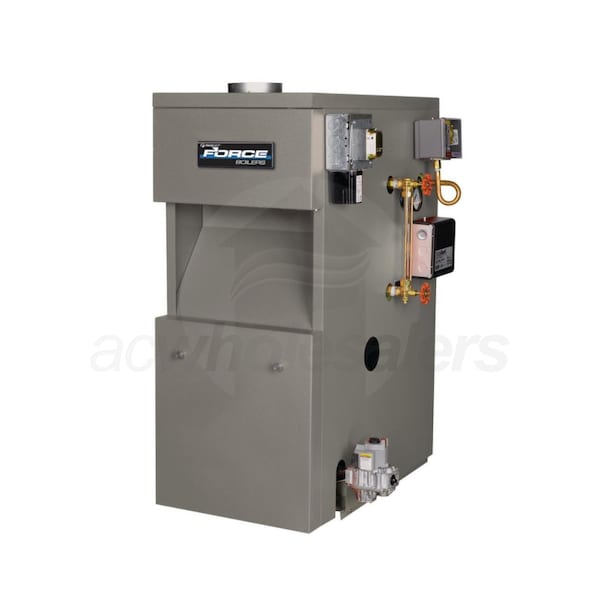

ProSelect® Force™ boilers are high efficiency boilers available in a variety of sizes to fit your needs. The ProSelect® Force™ steam gas boiler features an electronic ignition, making it safe and reliable. The built-in draft diverter allows the boiler to be installed in low spaces. The heavy duty ProSelect® Force™ steam gas boiler comes fully assembled with a cast iron heat exchanger. With metal section connectors that resist rust, the life of the boiler is increased.
  • ProSelect® Force™ Steam Gas Boiler Features
  • Fully Assembled
  • Electronic Ignition
  • Built-In Draft Diverter
  • Cast Iron Heat Exchanger
  • Honeywell Gas Valve
  • Metal section connectors
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    General Information
    Product Line
    Force
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Steam
    Heat Exchanger Material
    Cast Iron
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Conventional
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Mount Type
    Floor
    Maximum Altitude
    2000 Feet
    Assembly Type
    Packaged
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    82.0 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    138000 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    113000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    85000 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    6 Inches
    Supply Connection
    2 Inches
    Return Connection
    2 Inches
    Product Height
    40 7/16 Inches
    Product Width
    19 1/4 Inches
    Product Depth
    28 Inches
    Shipping Weight
    485 Pounds
    Certifications
    ASME Certified
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    8330180
    Warranty Information
    Heat Exchanger Warranty
    10 Years
