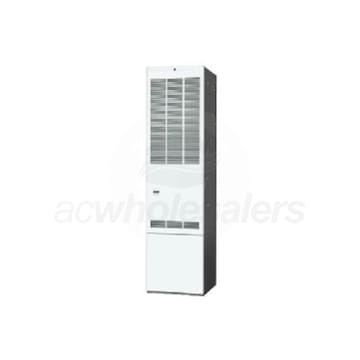

Revolv 80% AFUE 56000 BTU Downflow Multi Speed Mobile Home Gas Furnace

Model: RG1D56C3 Item Number: 78040
Revolv RG1D56C3
PREVIOUS
NEXT
Revolv RG1D56C3
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    152 Pounds Learn More
    152 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Gas Furnace
    Product Line
    RG1
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Revolv RG1D56C3

Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The RG1D56N3 is a downflow furnace capable of providing 56,000 BTU of heating at an 80% efficiency. Designed for easy installation in a variey of manufactured and modular homes, it enjoys a 0" required clearance to combustibles at the rear and sides and only 6" are required at the top of the unit. If you're struggling to effectively and safely heat your manufactured home, the RG1D56N3 is a solution that you can believe in.
  • Sealed Combustion
  • Revolv RG1 furnaces vent directly to the outdoors and draw in fresh air for combustion through a separately purchased roof jack.
  • Multiple Cooling Choices
  • RG1 models can be paired with either air conditioners or heat pumps, up to 4 tons or 3.5 tons, respectfully.
  • Compact Design
  • All Revolv furnaces are designed specifically for manufactured and modular homes. This allows them to be installed in utility rooms or closets and streamlines installation.
  • High Quality, Low Maintenance
  • Features such as hot surface ignition, sealed bearings on the motors, reliable controllers, and a clean enamel finish means these units are made to last and provide uninterrupted comfort for years.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Gas Furnace
    Product Line
    RG1
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Blower Motor Type
    PSC Multi-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow
    Maximum Altitude
    2000 Feet
    Gas Conversion Kit
    Included
    UPC
    663132332809
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Heating BTU
    56000
    Heating Capacity
    46000 BTU
    Maximum Air Flow
    1210 CFM
    Minimum Air Flow
    610 CFM
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    15 Amps
    Dimensions
    Gas Connection Size
    1/2 Inch
    Product Height
    76 Inches
    Product Width
    19 3/4 Inches
    Product Depth
    23 3/4 Inches
    Product Weight
    152 Pounds
    Shipping Weight
    152 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    8862024
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heat Exchanger Warranty
    10 Years
