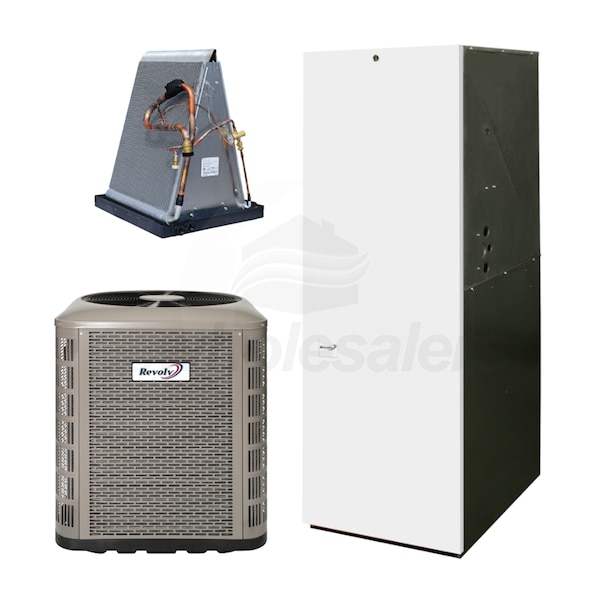

Revolv - 4.0 Ton Cooling - 41k BTU/Hr Heating - Air Conditioner + Electric Furnace System - 14.3 SEER2 - For Upflow Installation
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Product Category
Furnace & Air Conditioner Package
Refrigerant Type
R-410A
Stages
Single
View More
Bundle Includes 3 items
(1) Revolv AccuCharge® 4.0 Ton - Air Conditioner - Manufactured Home - 14.3 SEER2 - Single-Stage - R-410a Refrigerant (RSA3QE4M1SN48)
(1) Revolv E7 - 41k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 12 kW - Upflow - Multi-Speed - Includes Coil Cabinet (E7EU-012)
(1) Revolv AccuCharge® - 4.0 Ton - Upflow/Downflow Micro-Channel A-Coil - Uncased - For Air Conditioner Condensers - R-410a Refrigerant (C84QAMX48U-B)
View Full Bundle
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features & Bundle Details
Features & Bundle Details
Overview for Revolv RSA3QE48E7EU-012
Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. Designed for easy installation in mobile and manufactured housing, these units are specifically designed to fit into tight spaces and operate with minimum combustion clearances. A cost-efficient solution to cooling and heating your home, this kit includes a 14.3 SEER2 air conditioner paired with a powerful electric furnace. With their low cost and compact design, Revolv heating and cooling systems are the perfect match for your mobile or manufactured home.
AccuCharge® with FitRight® Fittings
All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
Corrosion Resistant Finish
Revolv AccuCharge® air conditioners are made with galvanized steel and a polyester urethane coat, creating a durable and corrosion resistant finish.
Composite Base Pan
A composite base pan is stronger and lighter than your standard steel base pan. Being composite, it absorbs sound better while remaining corrosion resistant.
Multi-Speed ECM Motor
The E7 energy efficient blower motor uses the lowest speed possible to deliver precise temperature control for your home while keeping utility bills to a minimum.
Nichrome Heating Elements
Revolv electric furnaces feature nichrome heating elements, designed to provide long lasting, efficient heating without breaking the bank.
High Quality, Low Maintenance
Features such as sealed bearings on the motors, reliable controllers and built-in circuit breakers means the E7 furnace is made to last and provide interrupted comfort for years to come.
Product Note
Revolv products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://www.stylecrestinc.com/products-page/warranty-registration/ within 60 days of installation.
Bundle Includes 3 items
Revolv AccuCharge® 4.0 Ton - Air Conditioner - Manufactured Home - 14.3 SEER2 - Single-Stage - R-410a Refrigerant
Revolv AccuCharge® - 4.0 Ton - Upflow/Downflow Micro-Channel A-Coil - Uncased - For Air Conditioner Condensers - R-410a Refrigerant
Model: C84QAMX48U-B
Item Number: 138960
Quantity: 1
Specifications
Specifications
Included In This Bundle
Bundle Overview
Bundle Overview
RSA3QE4M1SN48 Specifications
E7EU-012 Specifications
C84QAMX48U-B Specifications
General Information
Product Category
Furnace & Air Conditioner Package
Refrigerant Type
R-410A
Stages
Single
Blower Motor Type
ECM Multi-Speed
Connection Type
AccuCharge
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow
Installation Location
Outdoor
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
Capacity CapacityTonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Heating BTU
41000
Electric Heat Capacity
12.0 kW
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79 dB
SEER2 SEER2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
14.3
EER2 EER2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
11.7
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Shipping Weight
205 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208404151
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Yr Limited Years
General Information
Type
Condenser
Product Line
AccuCharge
Product Category
Air Conditioning Condensers
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410A
Connection Type
AccuCharge
Installation Location
Outdoor
Compressor Stages Compressor StagesStages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
Capacity CapacityTonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Cooling BTU
48000
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79 dB
SEER2 SEER2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
14.3
EER2 EER2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
11.7
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
45 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
41 1/4 Inches
Product Width
31 3/4 Inches
Product Depth
31 3/4 Inches
Shipping Weight
205 Pounds
Certifications
AHRI Certified
Yes
General Information
Type
Electric Furnace
Product Line
E7EU
Product Category
Furnace
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging Modulating/StagingStages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Single Stage
Blower Motor Type
ECM Multi-Speed
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow
Performance
Heating BTU
36000
Electric Heat Capacity
12 kW
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
74 Hz
Minimum Circuit Ampacity
57.1 Amps
Recommended Breaker Size
60 Amps
Dimensions
Product Height
60 5/8 Inches
Product Width
20 Inches
Product Depth
24 1/2 Inches
Shipping Weight
112 Pounds
Overview
Product Category
Furnace
General Information
Type
Evaporator Coil
Refrigerant Type
R-410A
Casing
Uncased
Style
A Coil
Connection Type
AccuCharge
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Performance
Capacity CapacityTonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Cooling BTU
48000
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
7/8 Inch
Product Height
25 Inches
Product Width
18 1/8 Inches
Product Depth
19 1/2 Inches
