Revolv 4.0 Ton - Heat Pump - Manufactured Home - 14.3 SEER2 - Single-Stage - R-410A Refrigerant

Model: RSH3ME4M1SP48 Item Number: 148524
Revolv RSH3ME4M1SP48
PREVIOUS
NEXT

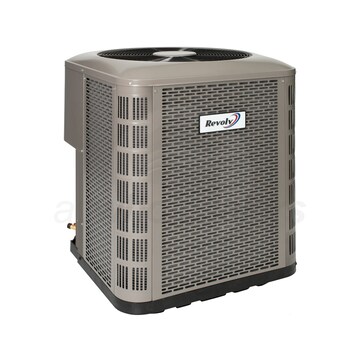

Revolv RSH3ME4M1SP48
Enlarge Image
Our Price: $3,039.00
synchrony card icon
$54 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
In-Stock
Ships Monday, December 23rd
Shipping to60601
Revolv 4.0 Ton - Heat Pump - Manufactured Home - 14.3 SEER2 - Single-Stage - R-410A Refrigerant
Revolv 4.0 Ton - Heat Pump - Manufactured Home - 14.3 SEER2 - Single-Stage - R-410A Refrigerant Model: RSH3ME4M1SP48 Item Number: 148524
$3,039.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Heat Pump Condenser
    Product Category
    Heat Pump
    Operating Mode
    Heating and Cooling
Size (Tons)
Learn More
Size (Tons)
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Revolv RSH3ME4M1SP48

Revolv is all about delivering easier installation, improved energy efficiency, and long lasting performance. With a robust jacket design and easily removed jacket panels, service and maintenance are simple with Revolv air conditioners. If you're looking for a reliable, efficient unit then the Revolv heat pump is for you.
  • Designed for Manufactured Housing
  • The full service brass valves offer simple servicing and easy access to the refrigerant system. The outdoor thermostat required by HUD comes factory installed on the RSH3 heat pumps.
  • Corrosion Resistant Finish
  • The Revolv heat pumps are made out of a galvanized steel with a powder coated paint, creating a durable and corrosion resistant finish.
  • Composite Base Pan
  • A composite base pan is stronger and lighter than your standard steel base pan. The composite base pan absorbs sound better, is corrosion resistant and has molded steps and drainage holes.
  • Pressure Switches
  • The Revolv heat pumps come with pressure switches to protect your unit against high system pressures, a low pressure switch to prevent loss of charge and an auto-reset feature that prevents unnecessary service visits.
  • Condenser Guard
  • The RSH3 has a durable, powder coated metal guard and mesh hail guard that protect the coil from extreme weather or objects hitting it and damaging your unit.
  • Micro-Channel Coils
  • All of the Revolv models have all highly corrosion-resistant aluminum coils, minimizing refrigerant charge and cost.
  • Filter Drier
  • The Revolv RSH3 models have an included liquid line filter drier to trap moisture and particulates. This must be field installed.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Heat Pump Condenser
    Product Category
    Heat Pump
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Connection Type
    Sweat
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 Tons
    Cooling Capacity
    44500 BTU
    Heating Capacity
    46500 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    79 dB
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    14.3
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    11.8
    Electrical Data
    Voltage
    208/239 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    40 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    45 1/4 Inches
    Product Width
    31 3/4 Inches
    Product Depth
    31 3/4 Inches
    Shipping Weight
    218 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
