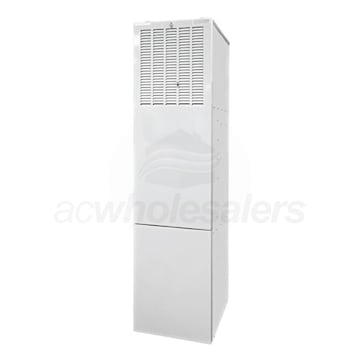

Revolv 95% AFUE 50000 BTU Downflow Multi Speed Mobile Home Gas Furnace

Model: VMC1-50D36N Item Number: 27126
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Revolv VMC1-50D36N
PREVIOUS
NEXT

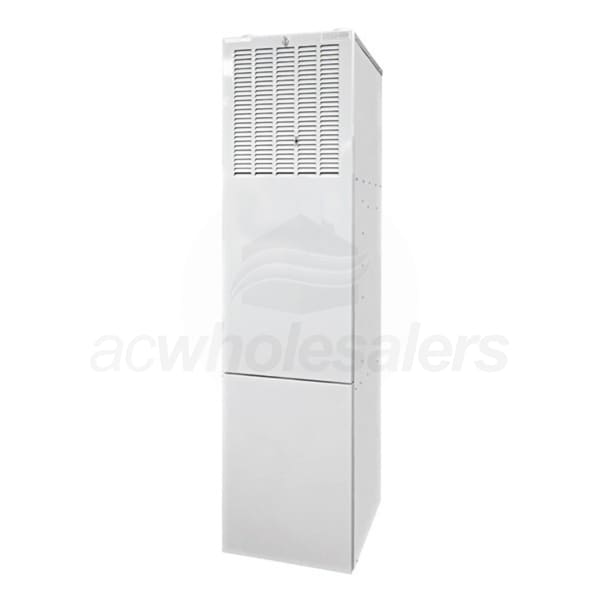

Revolv VMC1-50D36N
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    205 Pounds Learn More
    205 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Gas Furnace
    Product Line
    VMC
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Revolv VMC1-50D36N

Revolv, a division of Coleman, is dedicated to bringing efficient comfort to the manufactured and mobile home market. The VMC is an incredibly efficient gas-fired furnace designed specifically for installation in manufactured homes. With a 95% AFUE rating, you can be sure that the VMC is making the most of your energy dollar. It utilizes sealed combustion, venting and drawing combustion air directly from outside your home and requires 0" clearance to combustibles on the back, sides, and top. A depth of just over two feet, a width of only 18", and a simple installation process mean that it's easy to integrate a VMC into your manufactured home and enjoy efficient comfort.
  • Field Convertible
  • All VMC furnaces are field convertible to liquid propane. A conversion plate and orifice are included with the gas valve, so that conversion can be handled during installation without requiring any additional parts.
  • Multi-Speed
  • The VMC1-50D36N uses a timed four-speed direct drive motor for the blower, giving you excellent airflow that can be scaled to your application.
  • Dual Heat Exchanger Design
  • The primary exchanger employs an aluminum coating for optimal heat transfer. The secondary heat exchanger is made from stainless steel, giving it durability, corrosion-resistance, and a long life span.
  • Advanced Ignition System
  • The combination of a slow-opening gas valve and a silicon nitride igniter give the VMC1-50D36N an ignition process that is quiet and reliable.
  • Easily Accessible
  • Accessing the vent pipes and internal components of the VMC gas-fired manufactured home furnace is a breeze. A two-piece top makes installing and maintaining your equipment easy.
  • Internal Filtration
  • The VMC doesn't just keep your home comfortable, it also keeps you air clean. A return air filter that captures dust, lint, and other contaminants is installed inside the door of the furnace where it are easy to check and replace.
  • Product Includes
  • (1) Revolv VMC1-50D36N Gas-Fired Furnace
  • (1) Liquid Propane Conversion Kit
  • (1) Filter
    • Specifications
    View More

    Specifications

    General Information
    Type
    Gas Furnace
    Product Line
    VMC
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Blower Motor Type
    ECM Multi-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow
    Gas Conversion Kit
    Included
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    95 %
    Heating BTU
    50000
    High Fire Input
    50000 BTU
    High Fire Output
    48000 BTU
    Maximum Air Flow
    1283 CFM
    Minimum Air Flow
    773 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    No
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7.15 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    2 Inches
    Product Height
    76 1/8 Inches
    Product Width
    18 3/4 Inches
    Product Depth
    25 3/4 Inches
    Product Weight
    205 Pounds
    Shipping Weight
    215 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    7038135
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    Limited Lifetime Years
