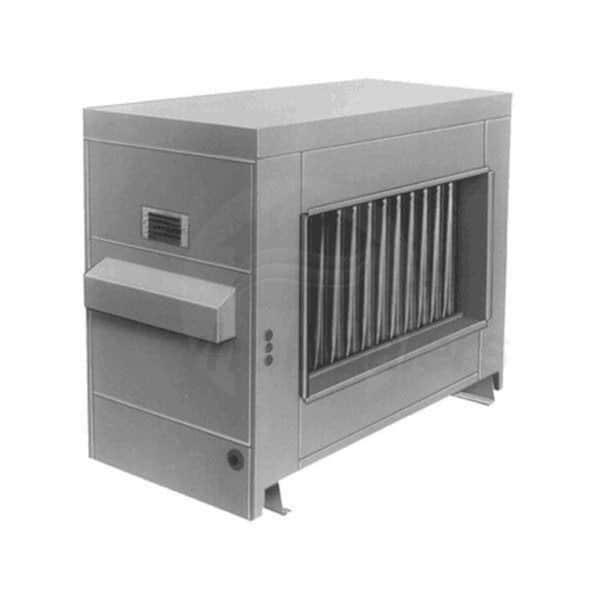

Reznor 250,000 BTU Gas Fired Duct Furnace Natural Gas

Model: RP-250 Item Number: 46912
Reznor RP-250
PREVIOUS
NEXT
Reznor RP-250
Enlarge Image
Our Price: $5,356.00
synchrony card icon
$67 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 8-12 Weeks
Reznor 250,000 BTU Gas Fired Duct Furnace Natural Gas
Reznor 250,000 BTU Gas Fired Duct Furnace Natural Gas Model: RP-250 Item Number: 46912
$5,356.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    295 Pounds Learn More
    295 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Input Capacity (BTU/h)
Select Attribute
Fuel Type
Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Select Attribute
Heat Exchanger Material
Select Attribute
Features
View More

Features

Overview for Reznor RP-250

Overview for Reznor RP-250

Reznor RP-250 250,000 BTU Gas Fired Duct Furnace Natural Gas.
  • Reznor RP-250 Features
  • Aluminized steel heat exchanger
  • Aluminized steel burners with stainless steel insert
  • 24 volt control voltage transformer
  • High limit safety cutout
  • Redundant single stage combination gas valve
  • Spark-ignited intermittent safety pilot
  • Power venter
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Product Line
    RP
    Product Category
    Unit Heater
    Heat Exchanger Material
    Aluminized Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Power Vent
    Stages
    Single Stage
    Blower Motor Type
    Multi-Speed
    Mount Type
    Roof Mount
    Performance
    Heating Capacity
    200000 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    250000 BTU
    Maximum Output Capacity
    200000 BTU
    High Fire Input
    250,000 BTU
    Thermal Efficiency
    80 %
    Maximum Air Flow
    3685 CFM
    Minimum Air Flow
    2045 CFM
    Electrical Data
    Phase
    1
    Dimensions
    Flue Connection Size
    5 Inches
    Gas Connection Size
    1/2 Inch
    Product Height
    38 13/24 Inches
    Product Width
    50 3/16 Inches
    Product Depth
    26 Inches
    Product Weight
    295 Pounds
    Shipping Weight
    295 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    ANSI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    10 Years
