Reznor UDXC - 225,000 BTU - Power Vented Gas Fired Unit Heater - Low Static Axial Fan - NG - TCORE2® Heat Exchanger - LP Convertible

Model: UDXC-225 Item Number: 157240

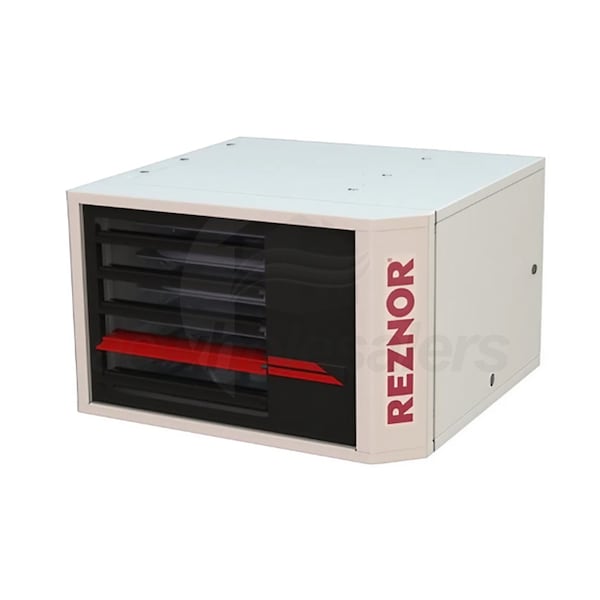

Reznor UDXC-225
PREVIOUS
NEXT
Reznor UDXC-225
Enlarge Image
Originally $2,367.00, you save 5%
Our Price: $2,248.00
synchrony card icon
$375 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 2-5 Business Days
Reznor UDXC - 225,000 BTU - Power Vented Gas Fired Unit Heater - Low Static Axial Fan - NG - TCORE2® Heat Exchanger - LP Convertible
Reznor UDXC - 225,000 BTU - Power Vented Gas Fired Unit Heater - Low Static Axial Fan - NG - TCORE2® Heat Exchanger - LP Convertible Model: UDXC-225 Item Number: 157240
$2,248.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    211 Pounds Learn More
    211 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    UDXC
    Product Category
    Unit Heater
Input Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Reznor UDXC-225

Reznor UDXC gas fired unit heaters are great for space heating applications. These units are power vented to eliminate heat losses up the flue pipe. It features the TCORE2® titanium-stabilized, aluminized steel heat exchanger for durability and performance. With a modern design and low-noise operation, the UDXC unit heaters fit a variety of environments such as hospitals, warehouses and schools. UDXC unit heaters feature a two-tone black and white glossy, scratch-resistant paint scheme with clean rounded corners and edges with no visible screws or fasteners.
  • TCORE2® Heat Exchanger
  • The heat exchanger in the Reznor UDXC unit heater is constructed from titanium-stabilized, aluminized-steel for superior durability and thermal efficiency. This innovative design enhances the longevity of the heater and ensures optimal performance.
  • Status-Indicating LED
  • All UDXC unit heaters come with a convenient status-indicating LED, offering real-time updates on the unit's operating status. This LED helps users identify whether the heater is functioning properly or if maintenance or troubleshooting is required.
  • Liquid Propane Convertible
  • The Reznor UDXC-225 unit heater can be converted to liquid propane with the NG to LP conversion kit. (Sold Separately)
  • Integrated Circuit Board
  • The UDXC unit heater features an integrated circuit board with a seven-segment display for easy diagnostics and system monitoring. This display provides real-time feedback on the unit's status, making it simple to troubleshoot.
  • Quiet Operation
  • Equipped with a vibration and noise isolated fan and vent motors, the UDXC unit heater ensures quiet and smooth operation.
  • Separated Combustion Convertible
  • The UDXC unit heater can be field converted to use fresh air for combustion with the separated combustion kit. (Sold Separately)
  • Certified Applications
  • The Reznor UDXC-225 unit heater is certified for industrial/commercial applications such as hospitals, warehouses and schools.
  • Product Note
    All Reznor heaters come standard as natural gas units. An LP conversion kit is required for all heaters to be used with propane. These can be found under the "Recommended Accessories" tab.
    Specifications
    View More

    Specifications

    General Information
    Product Line
    UDXC
    Product Category
    Unit Heater
    Heat Exchanger Material
    Aluminized Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Power Vent
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Mount Type
    Suspended
    UPC
    663132524921
    Performance
    Heating Capacity
    186750 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    225000 BTU
    Thermal Efficiency
    83 %
    Maximum Air Flow
    2882 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Maximum Load
    7.5 Amps
    Dimensions
    Primary Vent Pipe Diameter
    5 Inches
    Flue Connection Size
    6 Inches
    Gas Connection Size
    3/4 Inch
    Product Height
    26 1/8 Inches
    Product Width
    38 3/16 Inches
    Product Depth
    48 7/16 Inches
    Product Weight
    211 Pounds
    Shipping Weight
    247 Pounds
    Certifications
    ANSI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    10 Years
