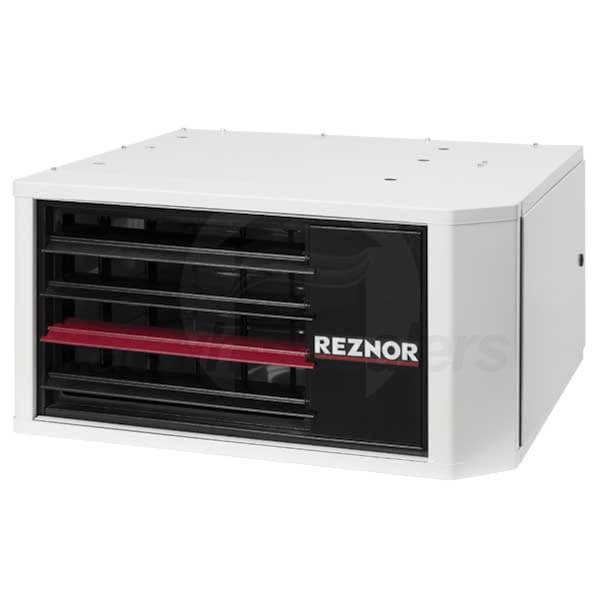

Reznor UEZ Gas Fired Unit Heater, Separated Combustion, Low Static Axial Fan, NG, Aluminized Heat Exchanger - 131,000 BTU

Model: UEZ-130-AC2 Item Number: 116216
Reznor UEZ-130-AC2
PREVIOUS
NEXT
Reznor UEZ-130-AC2
Enlarge Image
Originally $3,610.80, you save 8%
Our Price: $3,321.00
synchrony card icon
$59 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 8-12 Weeks
Reznor UEZ Gas Fired Unit Heater, Separated Combustion, Low Static Axial Fan, NG, Aluminized Heat Exchanger - 131,000 BTU
Reznor UEZ Gas Fired Unit Heater, Separated Combustion, Low Static Axial Fan, NG, Aluminized Heat Exchanger - 131,000 BTU Model: UEZ-130-AC2 Item Number: 116216
$3,321.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    242 Pounds Learn More
    242 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Input Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Reznor UEZ-130-AC2

Reznor UEZ gas-fired unit heaters offer a high-efficiency, separated combustion system great for space heating applications. UEZ units use outside air for combustion to prevent dirt, lint, dust or other contaminants in the indoor atmosphere from being burned. The UEZ uses an axial propellor fan for air circulation and is available in 14 sizes ranging from 131,000 to 310,000 BTUH gas input and is approved for installation in the United States and Canada by ETL. UEZ models feature a two-tone black and white powder coated, scratch-resistant paint scheme with a single red louver. Each unit has clean rounded corners and edges with no visible screws or fasteners. The bottom of the unit is embossed with the Reznor logo.
  • Reznor UEZ-130-AC2 Features
  • Up to 93% efficiency
  • TCORE3 409 stainless steel primary heat exchanger
  • MacroChannel® design on the secondary heat exchanger for easier maintenance
  • Sealed control compartment houses all electrical components
  • External status indicating LED that blinks if there is a problem that needs service
  • 7-segment display board that shows fault code for quick and easy troubleshooting
  • Optional integrated downturn nozzle and integrated vertical louvers
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Product Line
    UEZ
    Product Category
    Unit Heater
    Heat Exchanger Material
    Aluminized Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Separated Combustion
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal/Vertical
    Mount Type
    Suspended
    Gas Conversion Kit
    Included
    Performance
    Heating Capacity
    121830 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    131000 BTU
    Thermal Efficiency
    93 %
    Maximum Air Flow
    2256 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Maximum Load
    6.3 Amps
    Dimensions
    Primary Vent Pipe Diameter
    4 Inches
    Gas Connection Size
    1/2 Inch
    Flue Connection Size
    6 Inches
    Gas Piping Diameter
    1/2 Inch
    Product Height
    20 1/8 Inches
    Product Width
    39 3/16 Inches
    Product Depth
    55 19/48 Inches
    Product Weight
    242 Pounds
    Shipping Weight
    255 Pounds
    Certifications
    Country of Origin
    United States
    ANSI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    10 Years
