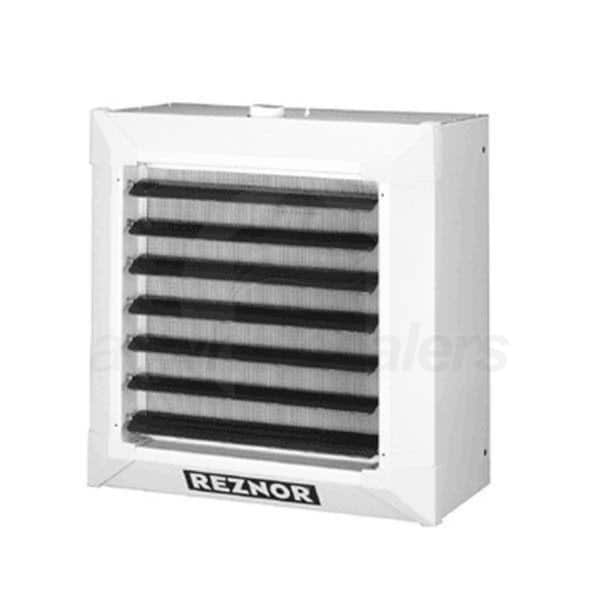

Reznor WS-190/238 Suspended Hydronic Unit Heater - 2 Row Copper Coil - Steam or Hot Water - 238,000 BTU

Model: WS-190/238-HA12 Item Number: 47425
Reznor WS-190/238-HA12
PREVIOUS
NEXT
Reznor WS-190/238-HA12
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    101 Pounds Learn More
    101 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Features
View More

Features

Overview for Reznor WS-190/238-HA12

Reznor WS-190/238-HA12 Suspended Hydronic Unit Heater is a two-speed hydronic suspended unit heater designed with an output capacity of 238000 BTU/hr. WS models are designed for a high-pressure of 150 PSI for hot water and 145 PSI for steam usage. Heat exchangers are coated with a special paint to increase lifetime usage and thermal output. Cabinets are painted for corrosion resistance and designed with shake-proof screws for additional strength and durability.
  • Reznor WS-190/238-HA12 Features
  • Copper tube heat exchanger with aluminum fins
  • Galvanized fan guard
  • Cabinet composed with shake-proof screws and molded corner sections
  • Spring mounted horizontal louvers
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Product Line
    WS
    Product Category
    Unit Heater
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Steam/Hot Water
    Heat Exchanger Material
    Copper
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Hydronic
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Mount Type
    Suspended
    Performance
    Heating Capacity
    177000 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    238000 BTU
    Maximum Air Flow
    2850 CFM
    Minimum Air Flow
    2200 CFM
    Electrical Data
    Phase
    1
    Dimensions
    Supply Connection
    1 1/4 Inches
    Return Connection
    1 1/4 Inches
    Product Height
    29 3/16 Inches
    Product Width
    29 3/16 Inches
    Product Depth
    20 3/16 Inches
    Product Weight
    101 Pounds
    Shipping Weight
    101 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
