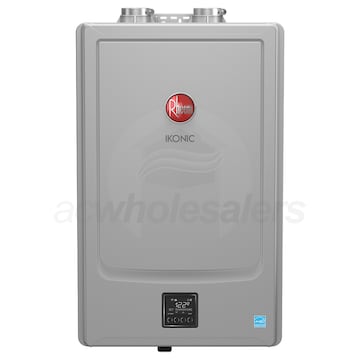

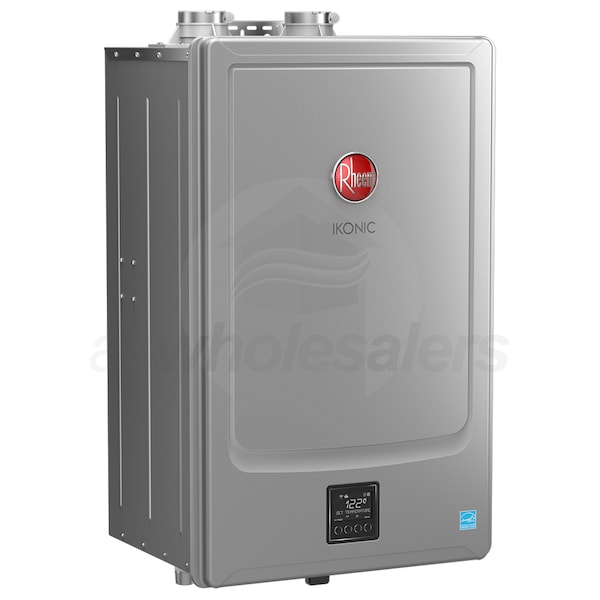

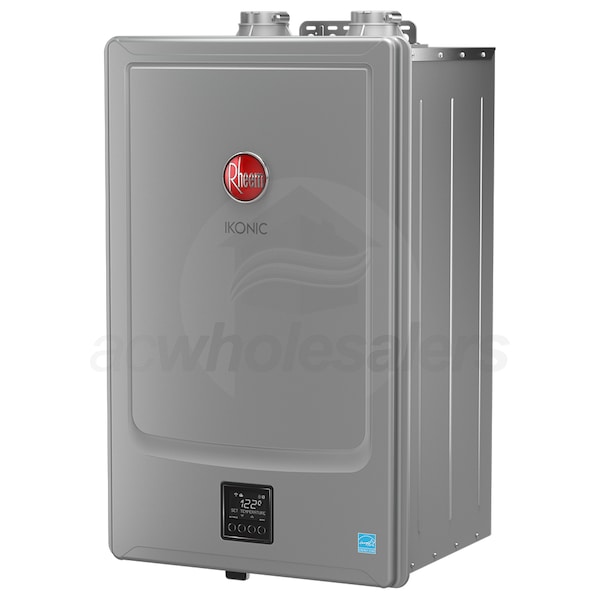

Rheem IKONIC&trade - Residential 199,000 BTU - Natural Gas Tankless Water Heater - Direct Vent

Model: RECTGH-S11IN Item Number: 153640
Rheem Tankless RECTGH-S11IN
PREVIOUS
NEXT
Rheem Tankless RECTGH-S11IN
Rheem Tankless RECTGH-S11IN
Rheem Tankless RECTGH-S11IN
Rheem Tankless RECTGH-S11IN
Rheem Tankless RECTGH-S11IN
Rheem Tankless RECTGH-S11IN
Enlarge Image
Rheem Tankless RECTGH-S11IN
Rheem Tankless RECTGH-S11IN
Rheem Tankless RECTGH-S11IN
Rheem Tankless RECTGH-S11IN
Rheem Tankless RECTGH-S11IN
Rheem Tankless RECTGH-S11IN
View All
Our Price: $1,669.00
synchrony card icon
$279 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 8-12 Weeks
Rheem IKONIC&trade - Residential 199,000 BTU - Natural Gas Tankless Water Heater - Direct Vent
Rheem IKONIC&trade - Residential 199,000 BTU - Natural Gas Tankless Water Heater - Direct Vent Model: RECTGH-S11IN Item Number: 153640
$1,669.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    77.6 Pounds Learn More
    77.6 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Tankless Water Heater
    Product Line
    IKONIC
Fuel Type
Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Select Attribute
Maximum Flow Rate (GPM)
Select Attribute
Wi-Fi On-Board
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Rheem Tankless RECTGH-S11IN

Rheem has been the leader in water heating for nearly 100 years, offering savings, comfort and the protection you need. With a smaller, lighter design, the Rheem IKONIC™ series tankless water heaters offer easy installation, continuous hot water, energy savings, and industry-leading warranty. Rheem tankless water heaters are the perfect solution for any size home.
  • Easy Installation
  • The Rheem IKONICâ„¢ water heater can be easily installed with PVC vent runs up to 70 ft for two inch pipes and 150 ft for three inch pipes.
  • Digital Display
  • IKONICâ„¢ water heaters have a full text digital display and no dip switches for simple set up.
  • Ready for Retrofits
  • This water heater is ready for retrofits, allowing for flex venting through existing B-vent up to 50 ft and compatible with 1/2 inch gas lines up to 24 feet. (Please see Product Note)

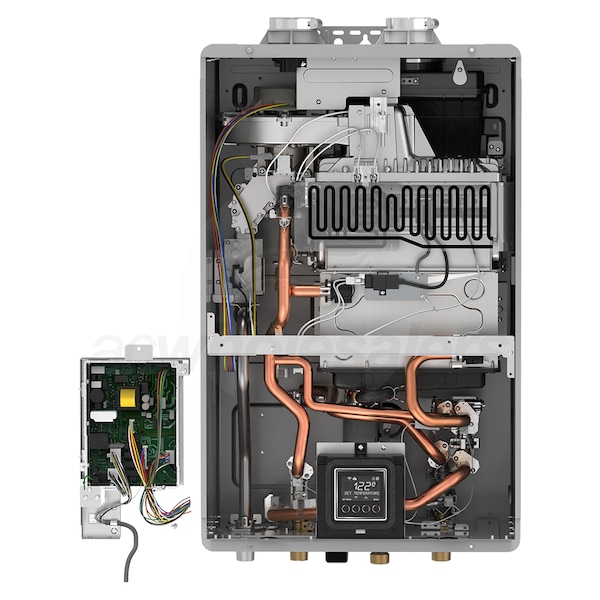

  • Stainless Steel Heat Exchangers
  • The Rheem IKONICâ„¢ features stainless steel primary and secondary heat exchangers, providing increased efficiency and durability for long-lasting performance.
  • Hot-Start Programmingâ„¢
  • A Rheem exclusive feature, the Hot-Start Programmingâ„¢ ensures the unit remains in a ready state between back-to-back usage, preventing any cold water bursts for a more comfortable experience.
  • Safety Film
  • The Rheem exclusive Overheat Film Wrap automatically shuts off the unit when the heat exchanger becomes too hot, ensuring added safety in your home.
  • Space Saver
  • Install in various locations using the industry best 1/2 inch side to side clearance for compact spaces.
  • Flexible Venting

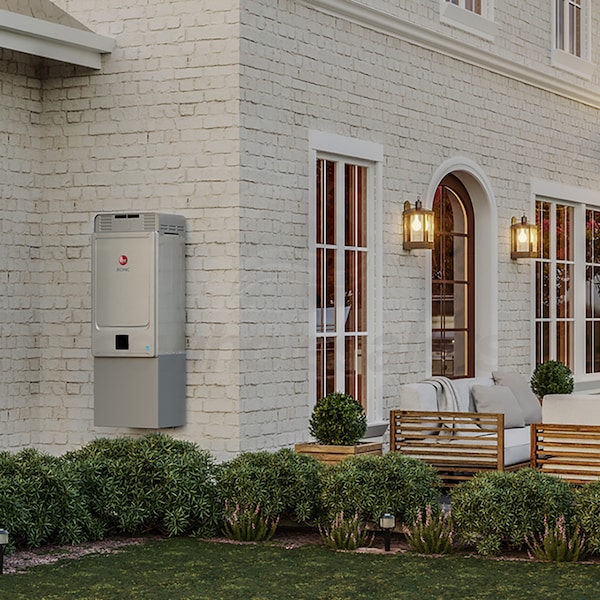

  • Rheem IKONICâ„¢ tankless water heaters feature multiple venting options. These units can be used in indoor or outdoor installations. (Outdoor kit required)
  • Warranty
  • Rheem IKONICâ„¢ tankless water heaters have a 15 year heat exchanger and 5 year parts warranty.
  • Product Note
    Please check your local codes for gas line size regulations.
    Specifications
    View More

    Specifications

    General Information
    Type
    Tankless Water Heater
    Product Line
    IKONIC
    Product Category
    Water Heater - Tankless
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Heat Exchanger Material
    Stainless Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Storage Type
    Tankless
    Application
    Residential
    Mount Type
    Wall
    Installation Location
    Indoor
    Maximum Altitude
    10200 Feet
    Includes Pump
    No
    Gas Conversion Kit
    Available
    UPC
    662021537561
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    199000 BTU
    Minimum Input Capacity
    11000 BTU
    Flow Rate at 40F Temperature Rise Learn More
    Flow Rate at 40F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    9.8 GPM
    Flow Rate at 50F Temperature Rise Learn More
    Flow Rate at 50F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    8.0 GPM
    Flow Rate at 60F Temperature Rise Learn More
    Flow Rate at 60F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    6.5 GPM
    Flow Rate at 70F Temperature Rise Learn More
    Flow Rate at 70F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    5.5 GPM
    Uniform Energy Factor Learn More
    Uniform Energy Factor
    Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
    0.96
    Minimum Flow Rate
    0.26 GPM
    Maximum Flow Rate
    11.2 GPM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Primary Vent Pipe Diameter
    2 Inches
    Gas Connection Size
    3/4 Inch
    Cold Water Inlet
    3/4 Inch
    Hot Water Outlet
    3/4 Inch
    Product Height
    28 9/16 Inches
    Product Width
    17 43/48 Inches
    Product Depth
    13 29/48 Inches
    Product Weight
    77.6 Pounds
    Certifications
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    ANSI Certified
    Yes
    NSF Certified Learn More
    NSF Certified
    The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
    Yes
    AHRI Reference Number
    212409466
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    15 Years
