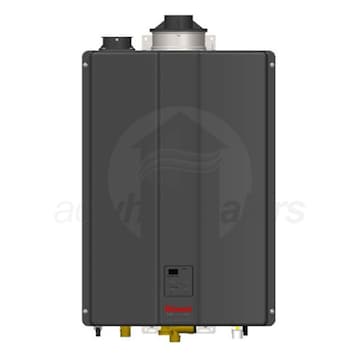

Rinnai Sensei™ - CU199 - 199,000 BTU, 97% EF - Commercial Natural Gas Tankless Water Heater - Direct Vent

Model: CU199IN Item Number: 82469
Rinnai CU199IN
PREVIOUS
NEXT
Rinnai CU199IN
Rinnai CU199IN
Rinnai CU199IN
Rinnai CU199IN
Enlarge Image
Rinnai CU199IN
Rinnai CU199IN
Rinnai CU199IN
Rinnai CU199IN
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    64 Pounds Learn More
    64 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Water Heater - Commercial
    UPC
    766156009730
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Rinnai CU199IN

Rinnai is raising the bar in tankless heating technology with their SENSEI™ tankless water heaters. Rinnai's SENSEI™ series provides a better experience for both users and installers alike with simple installation, serviceability, efficient performance, and flexible venting options. A corrosion-resistant stainless steel heat exchanger, integrated check valve, and included safety devices allow for powerful and efficient water heating for years to come.
  • Continuous Water for Multiple Applications
  • Rinnai tankless water heaters provide an endless supply of hot water that remains uninterrupted, even when you're the last one in line for the shower.
  • Energy Efficient Promise
  • Tankless water heaters avoid the need to keep a large amount of reserve water heated at all times. This saves energy by only heating water when you need it, while an entirely electric ignition avoids the constantly wasted energy of a standing pilot light.
  • Wi-Fi Compatible
  • Every SENSEI™ water heater is Wi-Fi compatible for remote monitoring and management.
  • Enhanced Combustion Design
  • The Rinnai SENSEI™ series water heaters feature a fiber mesh premix burner that provides an even flame distribution for optimal performance and efficiency.
  • Stainless Steel Heat Exchanger
  • The included stainless steel heat exchanger features corrosion-resistant properties to ensure reliable and long-lasting operation, while its superior efficiency puts the SENSEI™ series at the top of its class.
  • Flexible Venting Options
  • Perfect for both new installs and retrofits, the SENSEI™ features the most flexible venting in the industry. Whether your install requires concentric, direct, room air, or common venting, the SENSEI™ series can handle it all.
  • Simple Installation and Serviceability
  • The SENSEI™ water heater features an adjustable mounting plate and a rotatable pressure relief valve to accommodate a variety of install applications. An easily accessible control panel and parameter adjustment allow for fast and simple servicing.
  • Includes Isolation Valves & Pressure Relief Valve
  • Enables easy preventative maintenance, annual flushing, and serviceability.
  • Delivers a $100 value, with no additional purchase necessary.
  • Product Also Includes
  • Integrated Controller
  • Wall Mounting Bracket
  • Vent Screens (2)
  • Product Note
    The Rinnai RWM101 Control-R™ Wi-Fi Module is required for Wi-Fi connectivity.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Water Heater - Commercial
    UPC
    766156009730
    General Information
    Type
    Tankless Water Heater
    Product Line
    Sensei
    Product Sub-line
    Commercial
    Product Category
    Water Heater - Tankless
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Venting Category Learn More
    Venting Category
    Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
    IV
    Storage Type
    Tankless
    Application
    Commercial
    Mount Type
    Wall
    Installation Location
    Indoor
    Maximum Altitude
    10200 Feet
    Includes Pump
    No
    Gas Conversion Kit
    Not Available
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    97 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    199000 BTU
    Minimum Input Capacity
    15000 BTU
    Flow Rate at 40F Temperature Rise Learn More
    Flow Rate at 40F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    9.6 GPM
    Flow Rate at 45F Temperature Rise Learn More
    Flow Rate at 45F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    8.5 GPM
    Flow Rate at 50F Temperature Rise Learn More
    Flow Rate at 50F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    7.6 GPM
    Flow Rate at 60F Temperature Rise Learn More
    Flow Rate at 60F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    6.4 GPM
    Flow Rate at 70F Temperature Rise Learn More
    Flow Rate at 70F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    5.5 GPM
    Efficiency Type
    Thermal
    Minimum Flow Rate
    0.4 GPM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Primary Vent Pipe Diameter
    2 Inches
    Gas Connection Size
    3/4 Inch
    Cold Water Inlet
    3/4 Inch
    Hot Water Outlet
    3/4 Inch
    Product Height
    26 19/48 Inches
    Product Width
    18 1/2 Inches
    Product Depth
    11 19/48 Inches
    Product Weight
    64 Pounds
    Certifications
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    8 Years
