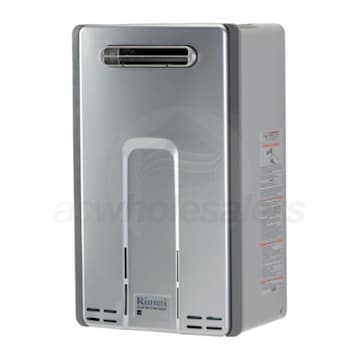

Rinnai 199,000 BTU 0.81 UEF Tankless Water Heater Outdoor NG

Model: RL94EN Item Number: 25207
Rinnai RL94EN
PREVIOUS
NEXT
Rinnai RL94EN
Rinnai RL94EN
Rinnai RL94EN
Rinnai RL94EN
Rinnai RL94EN
Rinnai RL94EN
Enlarge Image
Rinnai RL94EN
Rinnai RL94EN
Rinnai RL94EN
Rinnai RL94EN
Rinnai RL94EN
Rinnai RL94EN
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    44.3 Pounds Learn More
    44.3 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Water Heater - Tankless
    UPC
    766156006319
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Rinnai RL94EN

Rinnai has been delivering nothing but the best for almost 100 years and that award-winning dedication can't help but be noticed in their HE+ Series. The RL94eN and all of the HE+ Series models offer the highest output of Rinnai's non-condensing line of tankless heaters. Rinnai's HE+ Series models utilize breaking edge recirculation technology to provide optimal operation with their dedicated recirculation line. With a 0.81 Uniform Energy Factor and a sleek, innovative design, the RL94eN is a superior option that is easily maintained thanks to included isolation valves.
  • Compact design saves space.
  • The RL94eN is designed to be able to be installed inconspicuously on any exterior wall or compact space, hiding your unit and freeing up valuable space in your home. Rinnai tankless water heaters are perfect for any home.
  • Energy-efficient promise that saves you money.
  • Tankless water heaters avoid the need to keep a large amount of reserve water heated at all times. This saves energy by only heating water when you need it, while an entirely electric ignition avoids the constantly wasted energy of a standing pilot light.
  • Continuous Water for Multiple Applications
  • Rinnai tankless water heaters provide an endless supply of hot water that remains uninterrupted, even when you're the last one in line for the shower.
  • Includes Isolation Valves & Pressure Relief Valve
  • Enables easy preventative maintenance, annual flushing, and serviceability.
  • Delivers a $100 value, with no additional purchase necessary.
  • Product Also Includes
  • (1) MC-91-2 temperature controller (Integrated into indoor models)
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Water Heater - Tankless
    UPC
    766156006319
    General Information
    Type
    Tankless Water Heater
    Product Line
    Luxury Series
    Product Sub-line
    High Efficiency Plus (HE+)
    Product Category
    Water Heater - Tankless
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Non-Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Outdoor (No Venting)
    Storage Type
    Tankless
    Mount Type
    Wall
    Installation Location
    Outdoor
    Includes Pump
    No
    Gas Conversion Kit
    Not Available
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    199000 BTU
    Minimum Input Capacity
    10300 BTU
    Flow Rate at 40F Temperature Rise Learn More
    Flow Rate at 40F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    8.2 GPM
    Flow Rate at 45F Temperature Rise Learn More
    Flow Rate at 45F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    6.4 GPM
    Flow Rate at 50F Temperature Rise Learn More
    Flow Rate at 50F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    6.5 GPM
    Flow Rate at 60F Temperature Rise Learn More
    Flow Rate at 60F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    5.5 GPM
    Flow Rate at 70F Temperature Rise Learn More
    Flow Rate at 70F Temperature Rise
    Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
    4.7 GPM
    Uniform Energy Factor Learn More
    Uniform Energy Factor
    Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
    0.81
    Minimum Flow Rate
    0.4 GPM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/4 Inch
    Cold Water Inlet
    3/4 Inch
    Hot Water Outlet
    3/4 Inch
    Product Height
    22 23/24 Inches
    Product Width
    14 1/24 Inches
    Product Depth
    9 13/48 Inches
    Product Weight
    44.3 Pounds
    Certifications
    CSA Listed
    Yes
    AHRI Certified
    Yes
    NSF Certified Learn More
    NSF Certified
    The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    12 Years
