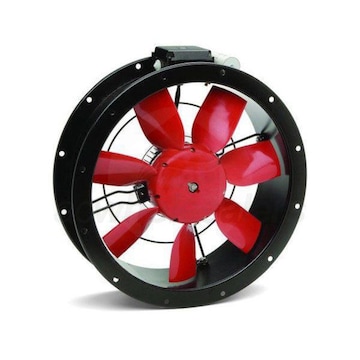

Soler & Palau 18" 3,620 CFM Low Silhouette Tubular Duct Axial Fan

Model: DA 18 Item Number: 30877
Soler & Palau DA 18
PREVIOUS
NEXT
Soler & Palau DA 18
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    37 Pounds Learn More
    37 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    812482010534
Features
View More

Features

Overview for Soler & Palau DA 18

The S&P COMPACT WALL and DUCT AXIAL FANS feature, as the name suggests, an extremely compact design created by the combination of an external rotor motor matched with a direct drive wrap around an impeller hub. This very low profile design optimizes airflow performance while minimizing noise generation. Both wall and duct mounted versions require an absolute minimum depth for any given wall, ceiling, panel or in-line duct mounted installation. The S&P COMPACT DUCT AXIAL FANS are designed to be installed in-line with inducted or partially ducted ventilation systems for exhaust or supply air applications.
  • Motor
  • All models include asynchronous induction capacitor run and start motors
  • Constructed from die cast aluminum and finished in a black polyester paint coating
  • 100% Speed controllable
  • Totally enclosed IP/65 protection
  • Class F insulation
  • All models include a Safety Auto Reset Thermal Overload Protection
  • Terminal Box
  • Manufactured from high impact grade aluminum
  • IP65 protected
  • Wheel/Impeller
  • Manufactured from glass filled UV resistant polyamide
  • Special Order: Die cast aluminum
  • Corrosion and weather resistant
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    812482010534
    General Information
    Type
    Axial Fan
    Product Category
    Fans
    Mount Type
    In-Line
    Performance
    Maximum Air Flow
    3620 CFM
    Electrical Data
    Voltage
    120 Volts
    Power Consumption
    540 Watts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    18 Inches
    Product Height
    21 1/8 Inches
    Product Width
    21 1/8 Inches
    Product Length
    7 1/8 Inches
    Product Weight
    37 Pounds
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
