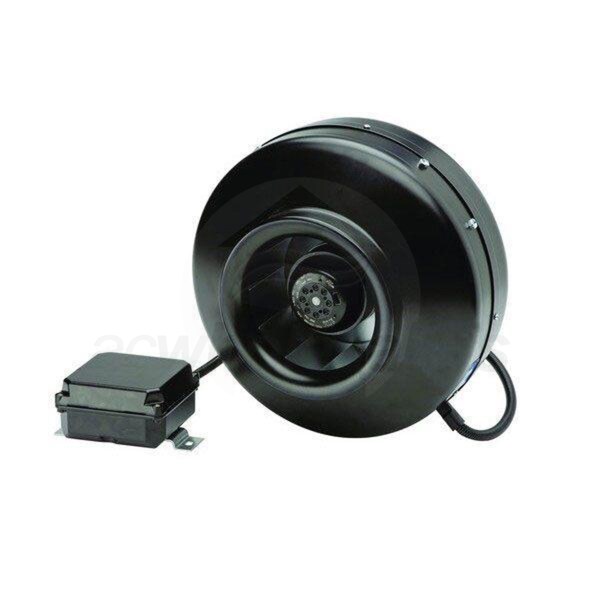

Soler & Palau 5" 206 CFM Power Vent Inline Centrifugal Turbo Duct Fan

Model: PV-125X Item Number: 30968
Soler & Palau PV-125X
PREVIOUS
NEXT
Soler & Palau PV-125X
Enlarge Image
Our Price: $208.00
synchrony card icon
$35 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 7-14 Business Days
Soler & Palau 5
Soler & Palau 5" 206 CFM Power Vent Inline Centrifugal Turbo Duct Fan Model: PV-125X Item Number: 30968
$208.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    10 Pounds Learn More
    10 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    812482010039
Duct Connection (Inches)
Select Attribute
Features
View More

Features

Overview for Soler & Palau PV-125X

S&P Power-vent fans are designed for direct connection in-line with standard diameter round ducting. This powerful combination enables the PV fans to deliver exceptional airflow performances against high static pressure typically found in ducted ventilation systems. All motors within PV fans are fully speed controllable using voltage or frequency control regulators.
  • Soler & Palau PV-125X Features
  • Casing manufactured from high grade pressed galvanized steel, with black baked enamel coating
  • Wheel / Impeller factory matched to an external rotor motor and dynamically balanced to eliminate vibration
  • Motor equipped with totally enclosed permanent split capacitor and permanently sealed, self-lubricating precision ball bearings
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    812482010039
    General Information
    Type
    Duct Fan
    Product Line
    Power Vent
    Product Category
    Fans
    Mount Type
    Inline
    Performance
    Maximum Air Flow
    206 CFM
    Electrical Data
    Voltage
    115 Volts
    Power Consumption
    85 Watts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    5 Inches
    Product Height
    7 13/16 Inches
    Product Width
    9 9/16 Inches
    Product Weight
    10 Pounds
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
    View More

    Share
    ×
    Soler & Palau 5" 206 CFM Power Vent Inline Centrifugal Turbo Duct Fan
    Soler & Palau PV-125X
