Soler & Palau 100-200 CFM Energy Recovery Ventilator for All Climates

Model: TR200 Item Number: 50184
Soler & Palau TR200
PREVIOUS
NEXT
Soler & Palau TR200
Enlarge Image
Our Price: $1,475.00
synchrony card icon
$246 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, December 23rd
Shipping to60601

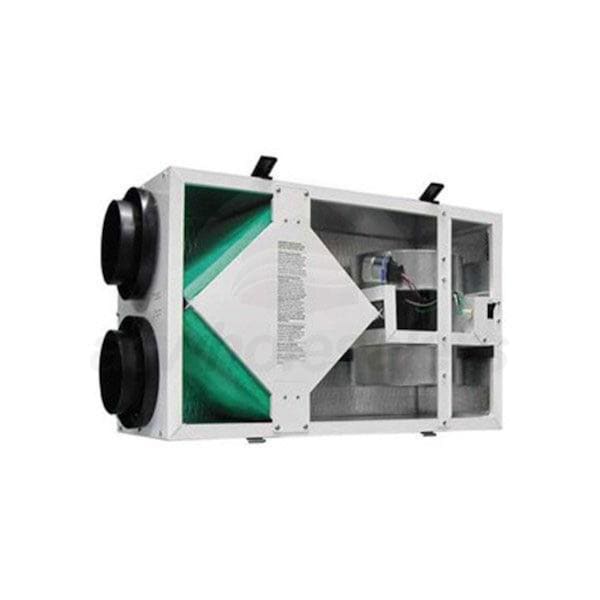

Soler & Palau 100-200 CFM Energy Recovery Ventilator for All Climates
Soler & Palau 100-200 CFM Energy Recovery Ventilator for All Climates Model: TR200 Item Number: 50184
$1,475.00
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    85 Pounds Learn More
    85 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Energy Recovery Ventilators (ERVs)
    UPC
    812482012156
Airflow Range (CFM)
Select Attribute
Features
View More

Features

Overview for Soler & Palau TR200

S&P's TRs moderate extremes in both temperature and humidity, creating a comfortable indoor environment. The unique moisture transfer capability of the S&P core also eliminates condensation and frost build up in most applications. No mechanical or electrical defrost systems are needed, which means higher heat recovery efficiencies, easier installation and more reliable operation.
  • Soler & Palau TR200 Features
  • MERV-8 filters
  • Less than 1 watt stand-by power consumption
  • Transformer/relay package allowing simple on/off control
  • Plastic double collars for 6 or 8" direct duct connection
  • 3' power cord
  • Integral mounting flange and hanging bracket system
  • Fully insulated case
  • Large cores for high efficiency
  • No condensate pan or drain required
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Energy Recovery Ventilators (ERVs)
    UPC
    812482012156
    General Information
    Type
    ERV
    Product Line
    TR
    Product Category
    Energy Recovery Ventilators (ERVs)
    Port Location
    Side
    Performance
    Maximum Air Flow
    200 CFM
    Minimum Air Flow
    122 CFM
    Sensible Recovery Efficiency
    76 %
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    6 Inches
    Product Height
    29 Inches
    Product Width
    21 1/2 Inches
    Product Depth
    32 Inches
    Product Weight
    85 Pounds
    Shipping Weight
    95 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heat Exchanger Warranty
    10 Years
