SunTouch WarmWire - 70 Sq Ft - Radiant Floor Heating Kit - 120V

Model: 120070WD-KIT Item Number: 19186
SunTouch 120070WD-KIT
PREVIOUS
NEXT
SunTouch 120070WD-KIT
SunTouch 120070WD-KIT
Enlarge Image
SunTouch 120070WD-KIT
SunTouch 120070WD-KIT
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    14 Pounds Learn More
    14 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Cable
    Product Line
    WarmWire
Voltage
Select Attribute
Coverage Area (sq. ft.)
Select Attribute
Package
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for SunTouch 120070WD-KIT

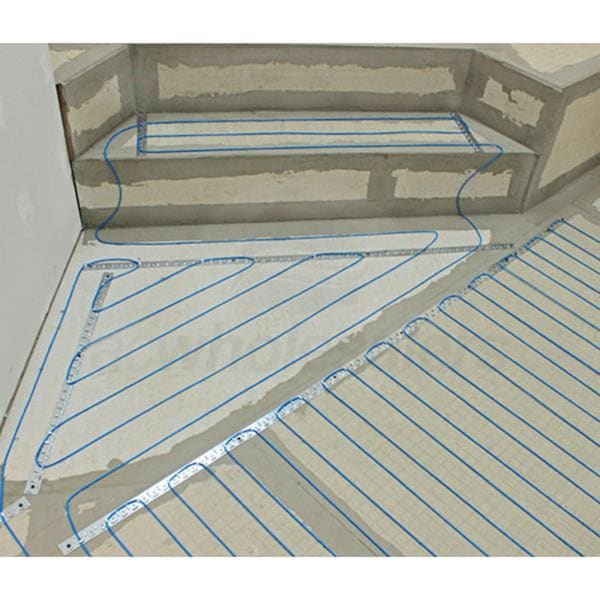

Never wake up to cold floors again! Popularly used in large room and rooms with complex layouts, WarmWire Series cables provide comfortable heating temperatures to keep your feet warm and toasty. Covering 70 square feet, the SunTouch 120070WD-KIT WarmWire Radiant Floor Heating Kit is an affordable way to add comfort and warmth to your home. WarmWire kits include everything you need for a quick and simple floor warming installation including a SunStat® Command, 7-day programmable thermostat. Constructed with oxygen-free copper heating elements for flexibility and durability, the kit installs beneath and warms tile, stone, and laminate flooring. This 120 volt unit is designed with high temperature thermoplastic insulation, making it corrosion resistant. In fact, the 120070WD-KIT is so durable that it comes with a 25 year limited warranty.
  • Oxygen-Free Copper Heating Elements
  • Oxygen-free copper heating elements in the heating wire provide flexibility and longevity to your radiant heating system.
  • High Temperature Thermoplastic Insulation
  • The insulation provides long-term corrosion, chemical, and temperature resistance to extend the service life of your radiant heating system.
  • Metal Grounding Jacket
  • A grounding jacket provides added safety should any electrical elements become exposed.
  • Tough Outer Jacket
  • The outer jacket provides added chemical and abrasion resistance.

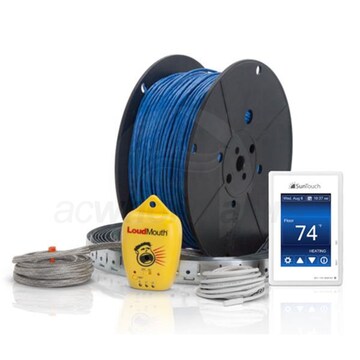

  • Product Includes
  • (1) 70 sq. ft. WarmWire Cable(s)
  • SunStat® Command Thermostat
  • CableStrap
  • LoudMouth Installation Monitor
  • Double-sided tape
  • Installation Manual
  • Specifications
    View More

    Specifications

    General Information
    Type
    Cable
    Product Line
    WarmWire
    Application
    Floor Heating
    Performance
    Maximum Allowable Temperature
    194 F
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    15 Amps
    Current Draw
    7 Amps
    Dimensions
    Return Connection
    7 Inches
    Area Covered
    70 Square Feet
    Product Weight
    14 Pounds
    Certifications
    Country of Origin
    United States
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    25 Years
