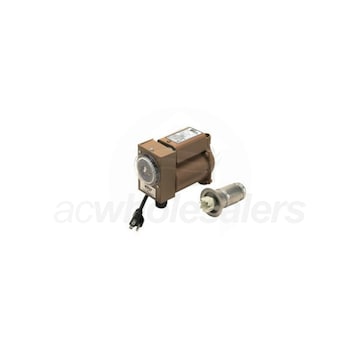

Taco 1/2" Sweat Plumb n Plug Hot Water Circulator with Analog Timer

Model: 006-BC4-PNP Item Number: 33168
Taco 006-BC4-PNP
PREVIOUS
NEXT
Taco 006-BC4-PNP
Enlarge Image
Our Price: $511.44
synchrony card icon
$86 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, November 25th
Shipping to60601
Taco 1/2
Taco 1/2" Sweat Plumb n Plug Hot Water Circulator with Analog Timer Model: 006-BC4-PNP Item Number: 33168
$511.44
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Water Heater - Pumps and Controls
    UPC
    687752200430
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Taco 006-BC4-PNP

The Plumb N' Plug line of Taco circulators provides an ingenious solution to the problem of waiting for hot water from fixtures. An included timer allows you to quickly and easily designate recirculation periods for instant hot water. The analog timer is prewired, which means installation is a breeze. Setting recirculation times is equally easy; simply flip the switches on the timer face corresponding to the times when you are most likely to need hot water and the Plumb N' Plug will begin recirculation at those times. The bronze construction of this circulator makes it ideal for DHW applications, where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
  • Stop Wasting Water
  • Plumb N' Plug circulators can save up to 25 gallons of water a day. By recirculating hot water periodically, the Plumb N' Plug ensures that you won't have to run taps and faucets before enjoying hot water.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Systems with 200' to 400' of 3/4" Supply/Return Piping
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Water Heater - Pumps and Controls
    UPC
    687752200430
    General Information
    Product Line
    Plumb N' Plug Series
    Product Category
    Water Heater - Pumps and Controls
    Control Type
    Timer
    Connection Type
    Sweat
    Material
    Bronze
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    Yes
    Performance
    Maximum Head
    9.5 Feet
    Maximum Flow Rate
    11.5 GPM
    Maximum Fluid Temperature
    220 F
    Horsepower
    1/40 HP
    Maximum Operating Pressure
    125 PSI
    RPM
    3250 RPM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    0.52 Amps
    Dimensions
    Connection Size
    1/2 Inch
    Product Height
    5 1/4 Inches
    Product Width
    3 15/16 Inches
    Product Depth
    7 1/4 Inches
    Shipping Weight
    7 Pounds
    Certifications
    UL Listed
    Yes
    NSF Certified Learn More
    NSF Certified
    The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    3 Years
