tekmar Boiler Control Outdoor Temperature Reset Two Stage Setpoint

Model: 261 Item Number: 32820
Tekmar 261
PREVIOUS
NEXT
Tekmar 261
Enlarge Image
Our Price: $594.00
synchrony card icon
$99 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-7 Business Days
tekmar Boiler Control Outdoor Temperature Reset Two Stage Setpoint
tekmar Boiler Control Outdoor Temperature Reset Two Stage Setpoint Model: 261 Item Number: 32820
$594.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    3 Pounds Learn More
    3 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Thermostats and Controls
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

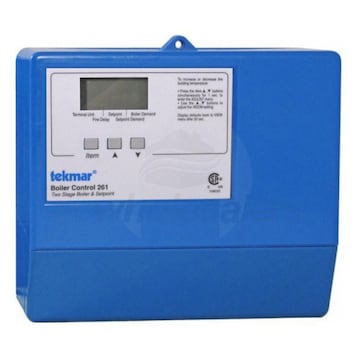

Overview for Tekmar 261

For nearly three decades, tekmar has been providing zoning and control solutions for a variety of heating and cooling applications. Products made by tekmar can improve the efficiency and comfort delivered by almost any system. The tekmar 261 Boiler Control controls a single water temperature. It is equipped to operate a system pump in addition to a two-stage boiler, or two single-stage boilers, in order to satisfy heating and setpoint demands in a hydronic system. The 261 possesses several energy saving features, including outdoor temperature reset, to make your system more economical.
  • Intelligent Control
  • By monitoring system and outdoor temperatures, the tekmar 261 is able to make intelligent decisions. This includes adjusting supply temperatures based on outdoor conditions and maintaining a minimum return water temperature.
  • With the wide variety of operating modes and equipment it supports, the tekmar 261 is sure to make your system operate more efficiently, without sacrificing comfort.
  • Setback Period
  • The tekmar 261 allows you to designate a setback period when your home or business is unoccupied, reducing the water temperature to limit energy waste.
  • Warm Weather Shutdown
  • A warm weather shut down temperature may be programmed to prevent your system from running when it in unnecessary or untenable.
  • Proportional, Integral, Derivative (PID) Staging Mode
  • In PID mode, an advanced algorithm weighs many variables, including sensor temperatures, when making operation decisions. PID reduces short-cycling, improves efficiency, and prevents temperature drops in your system.
  • Boiler Rotation
  • When you are using the tekmar 261 Boiler Control with two boilers, it will take each boiler's cumulative run time into account when deciding which boiler will fire first. This prevents one of your boilers from being overused.
  • Product Includes
  • (1) tekmar 261 Boiler Control
  • (1) tekmar 082 Universal Sensor
  • (1) tekmar 070 Outdoor Sensor
  • Product Note
    The Tekmar 082 Sensor is being temporarily substituted for the Tekmar 071. The Tekmar 071 has a 12" cable while the Tekmar 082 has an 8' cable.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Thermostats and Controls
    General Information
    Product Category
    Thermostats and Controls
    Stages
    Multi-Stage
    Voltage Type
    Line-Voltage
    Interface
    Buttons
    Electrical Data
    Maximum Load
    10 Amps
    Dimensions
    Product Height
    6 5/8 Inches
    Product Width
    7 9/16 Inches
    Product Depth
    2 13/16 Inches
    Product Weight
    3 Pounds
    Certifications
    UL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
