tekmar Boiler Control for tekmarNet 4 Outdoor Temperature Reset

Model: 284 Item Number: 32488
Tekmar 284
PREVIOUS
NEXT
Tekmar 284
Enlarge Image
Our Price: $2,752.00
synchrony card icon
$49 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 4-7 Business Days
tekmar Boiler Control for tekmarNet 4 Outdoor Temperature Reset
tekmar Boiler Control for tekmarNet 4 Outdoor Temperature Reset Model: 284 Item Number: 32488
$2,752.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    5.5 Pounds Learn More
    5.5 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Thermostats and Controls
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

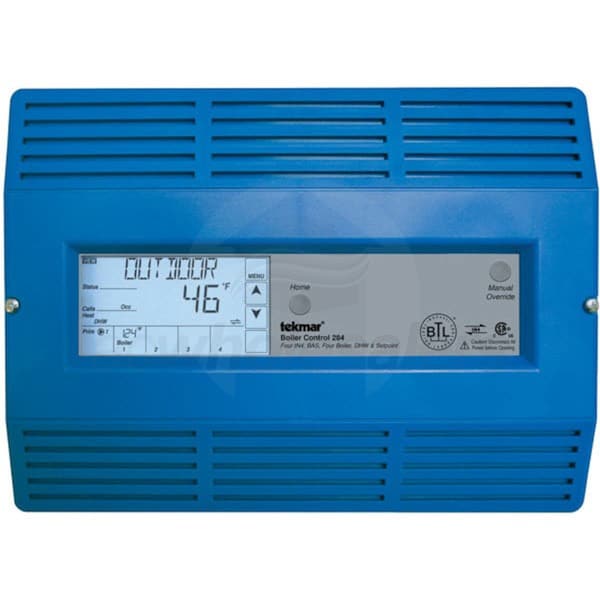

Overview for Tekmar 284

For nearly three decades, tekmar has been providing zoning and control solutions for a variety of heating and cooling applications. Products made by tekmar can improve the efficiency and comfort delivered by almost any system. Their 284 Boiler Control allows you to manage the operation of up to four boilers to supply an outdoor reset determined temperature. In addition to this system temperature, the 284 will also control the production and delivery of two additional, separate temperatures for domestic hot water production and setpoint applications. This unit provides power and control for two system pumps, an indirect domestic hot water pump, and four boiler pumps. Whether you are using it in a stand-alone capacity or as a part of a tekmarNet control system, the 284 Boiler Control possesses several energy saving and operation features to make you system more economical.
  • Intelligent Boiler Rotation
  • The tekmar 284 allows boilers to be assigned to a boiler group depending on their features and efficiency. This control can be set to operate the most efficient boiler groups as the primary source of heat to maximize the efficiency of the system.
  • The 284 will also rotate the boilers within these groups to distribute total operation time and wear on the boilers equally.
  • Intelligent Control
  • By monitoring system and outdoor temperatures, the tekmar 284 is able to make intelligent decisions. This includes adjusting supply temperatures based on outdoor conditions and maintaining a minimum return water temperature.
  • With the wide variety of operating modes and equipment it supports, the tekmar 284 is sure to make your system operate more efficiently, without sacrificing comfort.
  • Synchronize Your Zones, Save Energy
  • The 284 Boiler Control allows your tekmarNet 4 thermostats to communicate with each other. Communication means that your thermostats can synchronize their cycles, when possible, instead of operating independently.
  • Proportional, Integral, Derivative (PID) Staging Mode
  • In PID mode, an advanced algorithm weighs many variables, including sensor temperatures, when making operation decisions. PID reduces short-cycling, improves efficiency, and prevents temperature drops in your system.
  • Program Your Ideal Schedule
  • The tekmar 284 allows you to define time periods when your building is unoccupied and the water temperature may be reduced. This control supports the following setback schedule formats: 24 hours, seven day, weekday/weekend, and Saturday/Sunday/weekday.
  • If you connect the 284 to a tekmarNet system your schedule can be maintained independently, or it can be applied to tekmarNet thermostats as a master schedule. The 284 can also follow master schedules as set by other devices.
  • Product Includes
  • (1) tekmar 284 Boiler Control
  • (2) tekmar 082 Universal Sensors
  • (1) tekmar 070 Outdoor Sensor
  • Product Note
    The Tekmar 082 Sensor is being temporarily substituted for the Tekmar 071. The Tekmar 071 has a 12" cable while the Tekmar 082 has an 8' cable.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Thermostats and Controls
    General Information
    Product Category
    Thermostats and Controls
    Stages
    Multi-Stage
    Voltage Type
    Line-Voltage
    Interface
    Touchscreen
    Electrical Data
    Maximum Load
    10 Amps
    Dimensions
    Product Height
    8 1/16 Inches
    Product Width
    11 1/8 Inches
    Product Depth
    2 15/16 Inches
    Product Weight
    5.5 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
