Tekmar 406 - House Control - tN2 Compatible - 4 Zone Valves - Outdoor Temp. Reset - Heat Pump - Backup

Model: 406 Item Number: 32503
Tekmar 406
PREVIOUS
NEXT

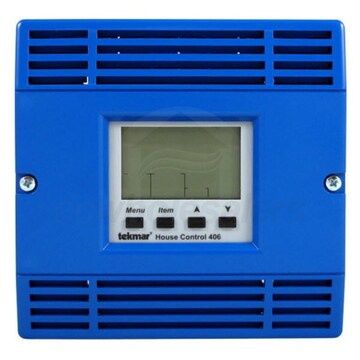

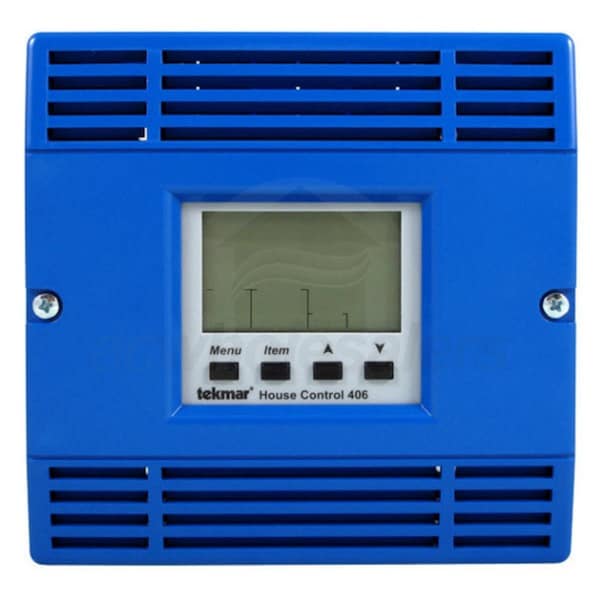

Tekmar 406
Enlarge Image
Our Price: $1,401.00
synchrony card icon
$234 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-7 Business Days
Tekmar 406 - House Control - tN2 Compatible - 4 Zone Valves - Outdoor Temp. Reset - Heat Pump - Backup
Tekmar 406 - House Control - tN2 Compatible - 4 Zone Valves - Outdoor Temp. Reset - Heat Pump - Backup Model: 406 Item Number: 32503
$1,401.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    1.4 Pounds Learn More
    1.4 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Thermostats and Controls
Recommended Accessories
View More
Installation Accessories
Tekmar 009K - Transformer Kit - 24V (AC)
$105.00
Ships in 4-7 Business Days
Model: 009K
Qty
$105.00
Ships in 4-7 Business Days
Add To Cart
Tekmar 033 - Timer - tN2/tN4 Compatible - Programmable
Model: 033
Qty
$259.00
Ships in 4-7 Business Days
Add To Cart
Tekmar 070 - Outdoor Sensor
$44.00
Ships in 4-7 Business Days
Model: 070
Qty
$44.00
Ships in 4-7 Business Days
Add To Cart
Tekmar 082 - Universal Sensor - 8' Wire
$42.00
Ships in 4-7 Business Days
Model: 082
Qty
$42.00
Ships in 4-7 Business Days
Add To Cart
Tekmar 480 - User Switch - tN2/tN4 Compatible - Three Inputs
Model: 480
Qty
$255.00
Ships in 4-7 Business Days
Add To Cart
Tekmar 482 - Gateway - tN2 /tN4 Compatible - RS232
$1,340.00
Ships in 4-7 Business Days
Model: 482
Qty
$1,340.00
Ships in 4-7 Business Days
Add To Cart
Tekmar tekmarNet - 557 - Thermostat - 7-Day Programmable - tN2/tN4 Compatible - Two Stage Heat/Cool - Heat Pump - Touchscreen
Model: 557
Qty
$576.00
Ships in 4-7 Business Days
Add To Cart
Features
View More

Features

Overview for Tekmar 406

For nearly three decades, tekmar has been providing zoning and control solutions for a variety of heating and cooling applications. Products made by tekmar can improve the efficiency and comfort delivered by almost any system. The tekmar 406 House Control is used to manage the hot and chilled water temperatures in a two-pipe, single tank, hydronic heating and cooling system. This unit controls a two-stage heat pump as well as a backup source of heat, such as a single-stage or modulating boiler. It may provide power and control for several system pumps, a variable speed mixing pump, and four zone valves. With a tekmar 406, you may use your backup boiler for DHW and setpoint temperatures. The 406 House Control is tekmarNet 2 compatible, and it possesses several energy saving features, including outdoor temperature reset, to make your system more economical.
  • Synchronize Your Zones, Save Energy
  • This tekmar control allows your tekmarNet 2 thermostats to communicate with each other. Communication means that your thermostats can synchronize their cycles, when possible, instead of operating independently.
  • tekmarNet 4 Expansion
  • The tekmar 406 contains two expansion terminals, which allow you to add tekmarNet 4 controls into your communication system. Find the perfect configuration to maximize your efficiency and comfort.
  • Intelligent Control
  • The tekmar 402 monitors the outdoor and water temperature at various points throughout the system. Using this information it is able to determine the most appropriate supply temperature, boiler firing rate, and mixing pump activation periods.
  • By constantly monitoring conditions and making continuous adjustments, the tekmar 406 delivers unparalleled comfort and efficiency.
  • Warm Weather Shutdown
  • A warm weather shut down temperature may be programmed to prevent your system from running when it in unnecessary or untenable.
  • Automates Boiler Differential
  • The tekmar 406 House Control can automatically adjust your boiler differential to discourage short cycling.
  • Product Includes
  • (1) tekmar 406 House Control
  • (4) tekmar 082 Universal Sensors
  • (1) tekmar 070 Outdoor Sensor
  • Product Note
    The Tekmar 082 Sensor is being temporarily substituted for the Tekmar 071. The Tekmar 071 has a 12" cable while the Tekmar 082 has an 8' cable.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Thermostats and Controls
    General Information
    Product Category
    Thermostats and Controls
    Stages
    Multi-Stage
    Voltage Type
    Line-Voltage
    Interface
    Buttons
    Electrical Data
    Maximum Load
    5 Amps
    Dimensions
    Product Height
    5 1/2 Inches
    Product Width
    5 1/2 Inches
    Product Depth
    2 1/4 Inches
    Product Weight
    1.4 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
