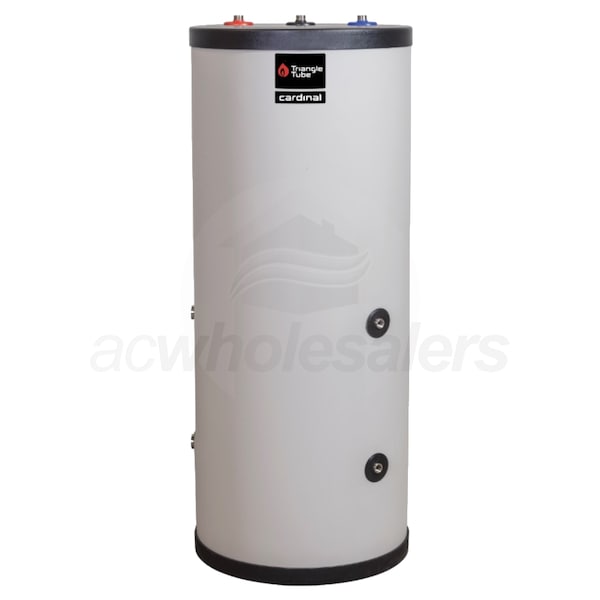

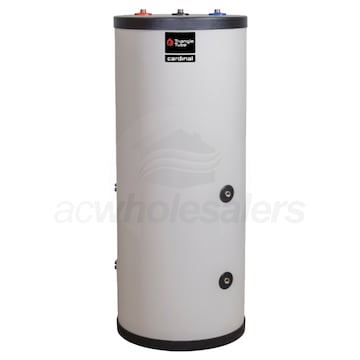

Triangle Tube CARDINAL80 - 78 Gallon - Residential Indirect Water Heater

Model: CARDINAL80 Item Number: 153303
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Triangle Tube CARDINAL80
PREVIOUS
NEXT
Triangle Tube CARDINAL80
Enlarge Image
Our Price: $2,318.50
synchrony card icon
$387 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
In-Stock
Ships Monday, September 9th
Shipping to60601
Triangle Tube CARDINAL80 - 78 Gallon - Residential Indirect Water Heater
Triangle Tube CARDINAL80 - 78 Gallon - Residential Indirect Water Heater Model: CARDINAL80 Item Number: 153303
$2,318.50
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    130 Pounds Learn More
    130 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Indirect Water Heater
    Product Line
    Cardinal
View More
Tank Capacity (Gallons)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Triangle Tube CARDINAL80

Triangle Tube is best known for feats of hydronic innovation and incredibly efficient products. Introducing the latest product innovation from Triangle Tube, the Cardinal Indirect Water Heater. Available in several sizes, the stainless steel indirect water heater provides ample hot water. With features like a stainless steel coil, domestic hot water and cold water connections on top, factory included temperature and pressure valve, 1/2" drain valve and an aquastat, the Triangle Tube Cardinal is a breeze to install. The Triangle Tube Cardinal Indirect Water Heater has an industry-leading warranty, giving you piece-of-mind on your purchase.
  • Stainless Steel Construction
  • With 316L stainless steel construction, the Triangle Tube Cardinal Indirect Water Heater is ideal for high temperature applications.
  • Efficiency-Boosting Insulation
  • Two inches of CFC (chlorofluorocarbon) free foam insulation in the Triangle Tube Cardinal helps to discourage heat loss, resulting in improved efficiency.
  • Fully Welded Construction
  • The fully welded and acid pickled (passivated) construction of the Cardinal protects against corrosive water conditions.
  • Extended Warranty
  • Triangle Tube offers two levels of extended warranties for Cardinal Water Indirect Heaters - up to 6 years for parts and 3 years for labor. Please see the Warranty Brochure under the Manuals tab for more information.
    • Specifications
    View More

    Specifications

    General Information
    Type
    Indirect Water Heater
    Product Line
    Cardinal
    Product Category
    Water Heater - Indirect-Fired
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Indirect Fired
    Storage Type
    Tank
    Application
    Residential
    Capacity
    78.9 Gallons
    Performance
    Minimum Input Capacity
    192000 BTU
    First Hour Delivery Learn More
    First Hour Delivery
    Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
    372 Gallons
    Continuous Recovery Rate
    302 Gallons
    Dimensions
    Cold Water Inlet
    1 Inch
    Hot Water Outlet
    1 Inch
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Height
    61 Inches
    Product Width
    26 1/2 Inches
    Product Depth
    26 1/2 Inches
    Product Weight
    130 Pounds
    Shipping Weight
    156 Pounds
    Certifications
    CSA Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    212847825
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Vessel Warranty
    Lifetime Years
