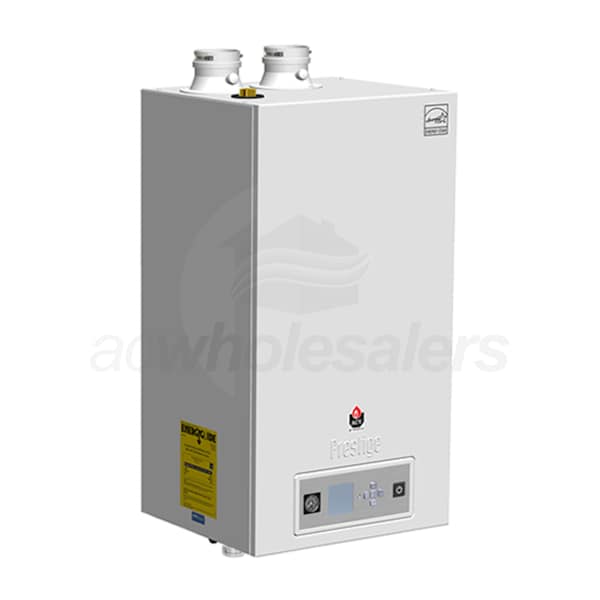

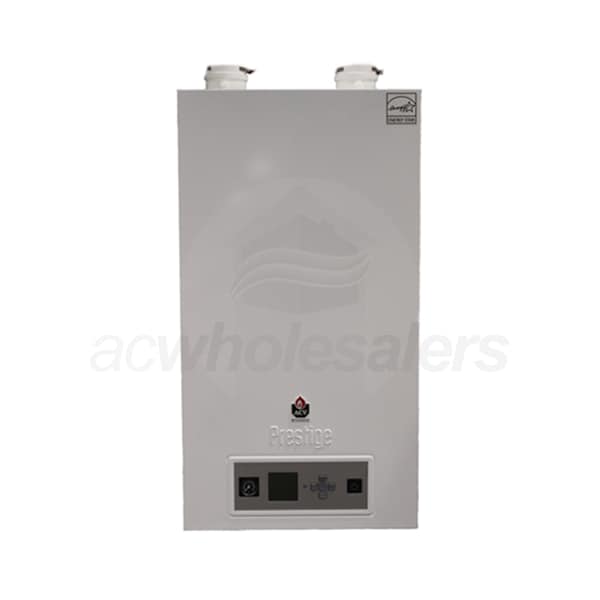

Triangle Tube 102K BTU 95% AFUE Prestige Condensing Gas Boiler

Model: PA110 Item Number: 79460
Triangle Tube PA110
PREVIOUS
NEXT
Triangle Tube PA110
Triangle Tube PA110
Triangle Tube PA110
Triangle Tube PA110
Enlarge Image
Triangle Tube PA110
Triangle Tube PA110
Triangle Tube PA110
Triangle Tube PA110
View All
Our Price: $4,241.00
synchrony card icon
$54 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships Friday, November 22nd
Shipping to60601
Triangle Tube 102K BTU 95% AFUE Prestige Condensing Gas Boiler
Triangle Tube 102K BTU 95% AFUE Prestige Condensing Gas Boiler Model: PA110 Item Number: 79460
$4,241.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    118 Pounds Learn More
    118 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Triangle Tube PA110

Triangle Tube is best known for two things: feats of hydronic innovation and incredibly efficient products. The Prestige Solo line of hot water boilers marries high efficiency condensing technology with Triangle Tube's cutting edge ACVMax controls to bring you a boiler that is 95% efficient and simple to operate. The condensing technology behind Prestige Solo boilers will capture and reuse gaseous heat that escapes traditional boilers. Stainless steel construction and an internal condensate trap will protect the PA110 from corrosion. Prestige Solos also include a modulating burner that scales heat production based on your needs and reduces unnecessary energy consumption. The ACVMax control allows you to have two different temperature zones and six Prestige boilers in your system. The Prestige Solo is an overachiever in every regard, and it makes an excellent addition to any system.
  • 60 Second Setup
  • ACVMax controls feature six preprogrammed applications that allow you to set the PA110 up in just one minute. These applications are: finned tube baseboard, cast-iron baseboard, radiators, high mass radiant, low mass radiant, and fan coil.

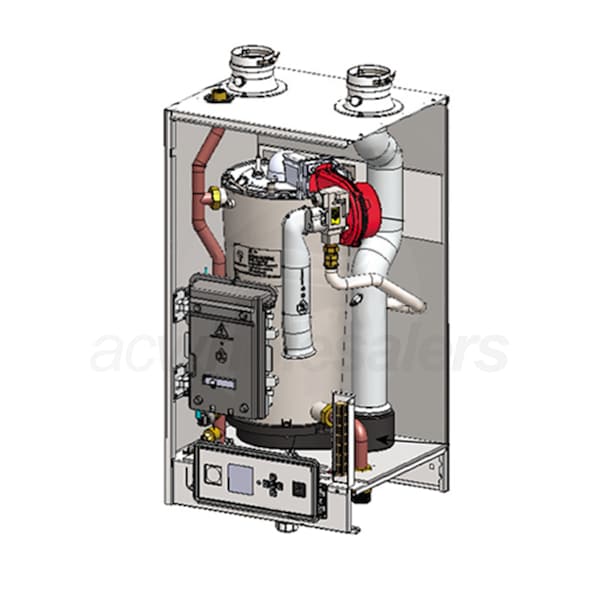

  • Fire Tube Heat Exchanger
  • By allowing for high water content, fire tube heat exchangers reduce short cycling and provide incredibly steady temperatures. Contours in the design prevent any debris from accumulating, which keeps your PA110 running efficiently.
  • Outdoor Reset Control
  • All Prestige Solo boilers include an outdoor temperature sensor. When connected to the ACVMax control, this sensor allows you to use outdoor reset control to provide the ideal indoor temperature.

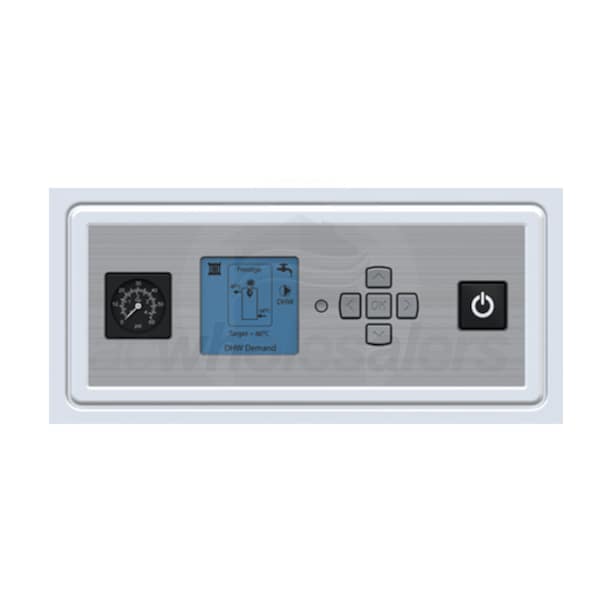

  • ACVMax Control
  • The ACVMax Control includes multiple zone control, multiple circulator control, intelligent troubleshooting, and an integrated cascade system to link up to 6 boilers.
  • Product Includes
  • (1) Triangle Tube PA110 Hot Water Boiler
  • (1) Outdoor Reset Sensor
  • (1) ACVMax Control Module
  • (1) Wall Mounting Bracket
  • (1) NG to LP Gas Conversion Kit
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    General Information
    Product Line
    Prestige Solo
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Connection Type
    NPT
    Mount Type
    Wall
    Minimum Altitude
    0 Feet
    Maximum Altitude
    10000 Feet
    Includes Pump
    Yes
    Assembly Type
    Packaged
    Gas Conversion Kit
    Included
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    95 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    110000 BTU
    Minimum Input Capacity
    20000 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    102000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    89000 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Turndown Ratio
    5.5:1
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    3 Inches
    Gas Connection Size
    1/2 Inch
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Height
    39 9/16 Inches
    Product Width
    19 3/4 Inches
    Product Depth
    17 5/16 Inches
    Product Weight
    118 Pounds
    Shipping Weight
    118 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    ASME Certified
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    2101291
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    10 Years
