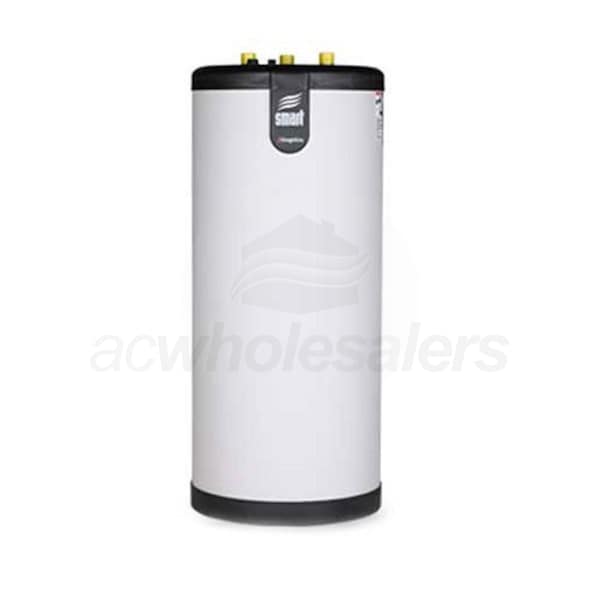

Triangle Tube Smart 60 - 56 Gallon - Residential Indirect Water Heater

Model: SMART 60 Item Number: 23181
Triangle Tube SMART 60
PREVIOUS
NEXT
Triangle Tube SMART 60
Enlarge Image
Originally $1,510.00, you save 4%
Our Price: $1,450.00
synchrony card icon
$242 / Month
Suggested monthly payments with 6 month financing.
Only 1 In-Stock
Ships Monday, December 23rd
Shipping to60601
Triangle Tube Smart 60 - 56 Gallon - Residential Indirect Water Heater
Triangle Tube Smart 60 - 56 Gallon - Residential Indirect Water Heater Model: SMART 60 Item Number: 23181
$1,450.00
Only 1 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    190 Pounds Learn More
    190 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Indirect Water Heater
    Product Line
    Smart
Tank Size
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Triangle Tube SMART 60

Triangle Tube is best known for two things: feats of hydronic innovation and incredibly efficient products. These qualities are intertwined in Triangle Tube's Smart Series Indirect Fired water heaters. The Smart water heaters feature an exclusive "tank-in-tank" design that Triangle Tube has been refining for three decades. To heat domestic water, the outer tank of the Smart 60 fills with boiler water and the surface of the inner tank becomes a heat exchanger. Two inches of polyurethane insulation ensures that your domestic hot water stays hot, and stainless steel construction of the inner tank provides exceptional durability. When it comes to making a decision on your next water heater, the Smart lives up its name.
  • Tank-in-Tank Efficiency
  • Using boiler water as a heat source for the Smart 60 means that whenever your boiler fires it is providing heat not just for your home, but for your water as well.
  • Tank-in-Tank Safety
  • High temperatures prevent the growth of bacteria. High quality stainless steel and Triangle Tube's tank-in-tank design allow your domestic hot water to be stored at higher temperatures than traditional water heaters.
  • Incredible Recovery Rate
  • The large surface area of the inner tank means that water is heated very quickly. Smart Series Indirect Fired water heaters boast a recovery rate up to 300% greater than that of conventional water heaters.
  • Self-Cleaning
  • The inner tank of the Smart 60 is contoured to promote water movement. This design prevents lime build-up in your water heater and keeps it running efficiently.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Indirect Water Heater
    Product Line
    Smart
    Product Category
    Water Heater - Indirect-Fired
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Indirect Fired
    Storage Type
    Tank
    Coils Quantity
    1
    Application
    Residential
    Connection Type
    NPT
    Capacity
    56 Gallons
    Performance
    First Hour Delivery Learn More
    First Hour Delivery
    Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
    635 Gallons
    Continuous Recovery Rate
    590 Gallons
    Dimensions
    Storage Volume
    56 Gallons
    Cold Water Inlet
    3/4 Inch
    Hot Water Outlet
    3/4 Inch
    Supply Connection
    1 1/4 Inches
    Return Connection
    1 1/4 Inches
    Product Height
    66 Inches
    Product Width
    22 Inches
    Product Depth
    22 Inches
    Product Weight
    190 Pounds
    Shipping Weight
    198 Pounds
    Certifications
    ETL Listed
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Vessel Warranty
    10 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
    View More
