Heat-flo - 40 Gal. - Indirect Water Heater

Model: HF-40 Item Number: 104632
WSD HF-40
PREVIOUS
NEXT
WSD HF-40
WSD HF-40
Enlarge Image
WSD HF-40
WSD HF-40
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Indirect Water Heater
    Product Line
    Heat-flo
    Medium
    Hot Water
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for WSD HF-40

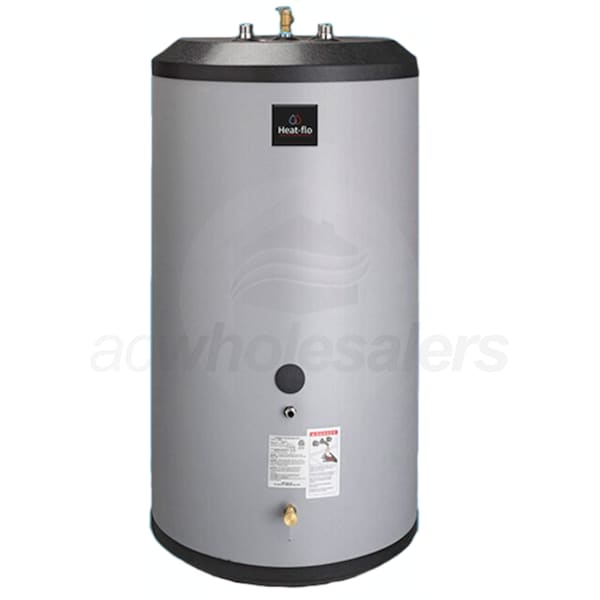

Made from high quality stainless steel materials and a smooth-wall coils, the Heat-flo Indirect Water Heater provides excellent heat transfer as well as a longer tank life. With abundant hot water and low operating costs, the Heat-flo Indirect water heater is an efficient choice for your hot water needs.
  • Stainless Steel Construction
  • With the tank and coils made from stainless steel materials, the Heat-flo Indirect Water Heater provides outstanding heat transfer. Stainless steel also provides a longer life to the tank and coils.
  • Coil Design
  • The Heat-flo Indirect Water Heaters features large coils with a smooth-wall design. With no finned tubing, the coils won't collect lime and sediment.
  • Simple Installation

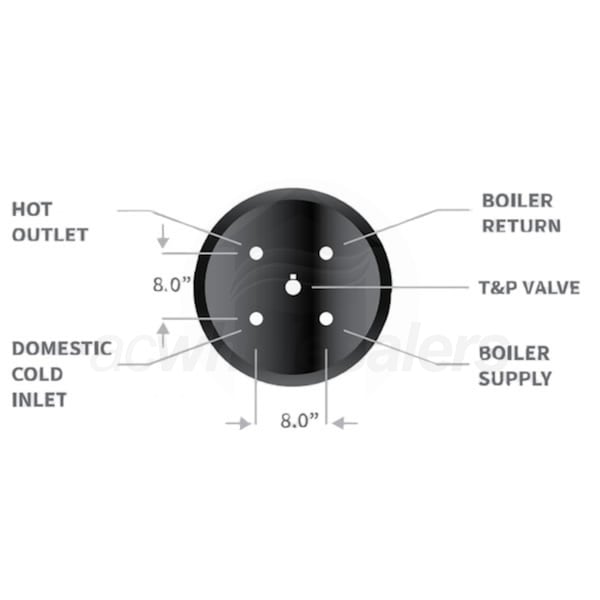

  • All connections are on the top of the Heat-flo Indirect Water Heater, making for a simple and easy installation.
  • Well Insulated
  • With over 2" of insulation, the Heat-flo Indirect Water Heater provides less that 1° of heat loss. The thermoplastic jacket does not corrode and resists denting.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Indirect Water Heater
    Product Line
    Heat-flo
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Indirect Fired
    Storage Type
    Tank
    Coils Quantity
    1
    Connection Type
    NPT
    Performance
    First Hour Delivery Learn More
    First Hour Delivery
    Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
    254 Gallons
    Continuous Recovery Rate
    218 Gallons
    Dimensions
    Storage Volume
    40 Gallons
    Cold Water Inlet
    3/4 Inch
    Hot Water Outlet
    3/4 Inch
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Height
    44 Inches
    Product Width
    23 1/2 Inches
    Shipping Weight
    100 Pounds
    Warranty Information
    Vessel Warranty
    1 Year
