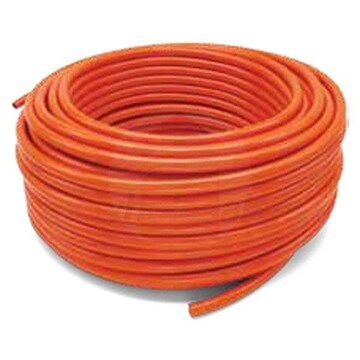

Watts Radiant RadiantPEX-AL - 1/2" - PEX-AL-PEX Tubing - 300' Length - Orange

Model: RL0508-300-OR Item Number: 25748
Watts Radiant RL0508-300-OR
PREVIOUS
NEXT
Watts Radiant RL0508-300-OR
Watts Radiant RL0508-300-OR
Enlarge Image
Watts Radiant RL0508-300-OR
Watts Radiant RL0508-300-OR
View All
Our Price: $750.00
synchrony card icon
$125 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
This Item Is Built To Order
Watts Radiant RadiantPEX-AL - 1/2
Watts Radiant RadiantPEX-AL - 1/2" - PEX-AL-PEX Tubing - 300' Length - Orange Model: RL0508-300-OR Item Number: 25748
$750.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Radiant Heating
    UPC
    840213095352
Diameter
Select Attribute
Length (ft.)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Watts Radiant RL0508-300-OR

Watts Radiant RadiantPEX-AL is a long-lasting, durable composite tubing pipe specifically developed for radiant floor heating, snow melting, and distribution piping. This unique 5-layer pipe's definitive feature is a layer of aluminum sandwiched in between two layers of durable cross-linked polyethylene rubber. This layer of aluminum gives the tube the ability to hold any shape it is formed into, allowing installations of PEX-AL-PEX pipe to be completed significantly faster than installations where standard pipe is used. The layer of aluminum also reduces expansion and contraction distance to an absolute minimum, making RadiantPEX-AL a steadfast, long-lasting piping solution for nearly any radiant heating application.
  • Holds its Shape for Easy Installation
  • Once bent into a certain shape by the installer, RadiantPEX-AL will hold that shape until it is bent otherwise. This allows one person to install RadiantPEX-AL faster than nearly any other PEX tubing.
  • Minimal Contraction and Expansion Distance
  • PEX tubing normally expands and contracts as the temperature changes. The layer of aluminum in RadiantPEX-AL tubing reduces these fluctuations in size to an absolute minimum. This reduces wear and tear on the hydronic system.
  • Silane Cross-Linking Construction
  • RadiantPEX-AL is manufactured using a superior manufacturing technology called Silane Cross-Linking. This manufacturing process gives the two PEX layers in the tubing much higher burst strength and provides superior anti-oxidant protection.
  • Highly Corrosion Resistant
  • RadiantPEX-AL tubing has unparalleled corrosion resistance, improving durability and further minimizing needed maintenance on the tubing throughout service life.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Radiant Heating
    UPC
    840213095352
    General Information
    Product Line
    RadiantPEX-AL
    Product Category
    Radiant Heating
    Oxygen Barrier
    Yes
    Number of Pipes
    1
    Material
    PEX-AL-PEX
    Insulation
    Yes
    Dimensions
    Product Diameter
    1/2 Inch
    Product Length
    300 Feet
    Shipping Weight
    23 Pounds
    Inner Diameter
    1/2 Inch
    Outer Diameter
    5/8 Inch
    Certifications
    Country of Origin
    United States
    UPC Listed
    Yes
    NSF Certified Learn More
    NSF Certified
    The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
    Yes
    ASTM Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    25 Years
